User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
129
• User Definition
Indicates the user definition that applies to the specific QCE. The user definitions
are:
• Ethernet Type: Specify the Ethernet Type filter for this QCE. The allowed
range is 0x600 to 0xFFFF.
• VLAN ID: VLAN ID filter for this QCE. The allowed range is 1 to 4095.
• UDP/TCP Port: Specify the TCP/UDP port filter for this QCE. The allowed
range is 0 to 65535.
• DSCP: Specify the DSCP filter for this QCE. The allowed range is 0 to 63.
Buttons
Cancal Wizard : Click to cancel the wizard.
< Back : Click to go back to the previous wizard step.
Netx > : Click to continue the wizard.
STEP-2
According to your selection on the previous page, this wizard will create specific QCEs (QoS Control Entries) automatically.
First select the QCL ID for these QCEs, and then select the traffic class. Different parameter options are displayed depending on
the frame type that you selected.

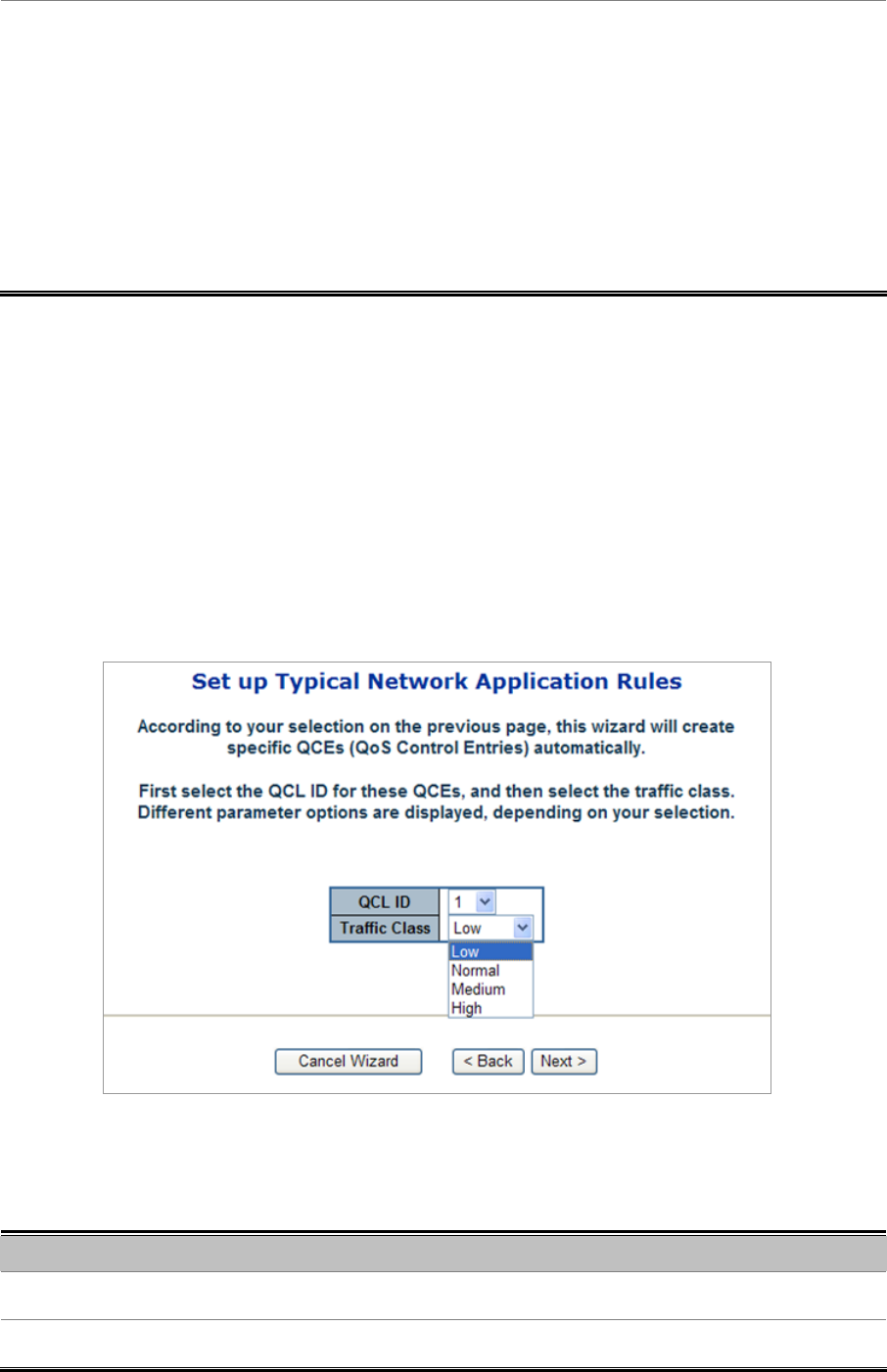

Figure 4-8-9 Set up Typical Netowrk Application Rules page 2 screenshot
The page includes the folling fileds:
Object Description
• QCL ID
Select the QCL ID to which these QCEs apply,
• Traffic Class
Select a traffic class of Low, Normal, Medium, or High to apply to the QCE.
