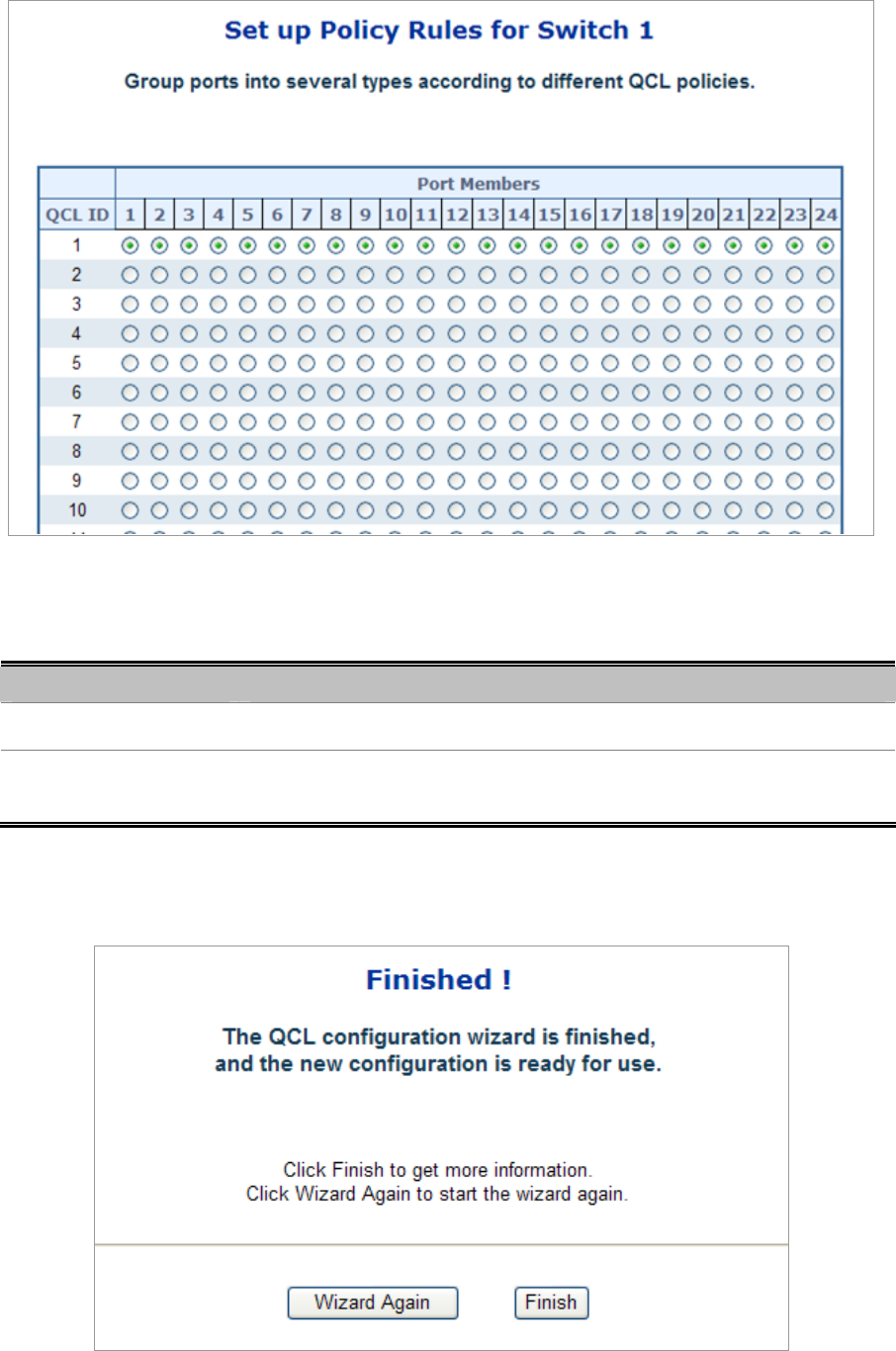

Figure 4-8-6 Set up Policy Rules page screenshot
The page includes the folling fileds:
Object Description
• QCL ID
Frames that hit this QCE are set to match this specific QCL.
• Port Members
A row of radio buttons for each port is displayed for each QCL ID. To include a
port in a QCL member, click the radio button.
Once the QCL configuration wizard is finished, the below screen appears.
