User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
126
4.8.4 QCL Configuration Wizard
This handy wizard helps you set up a QCL quickly.
The QCL Configuration Wizard screen in Figure 4-8-5 appears.

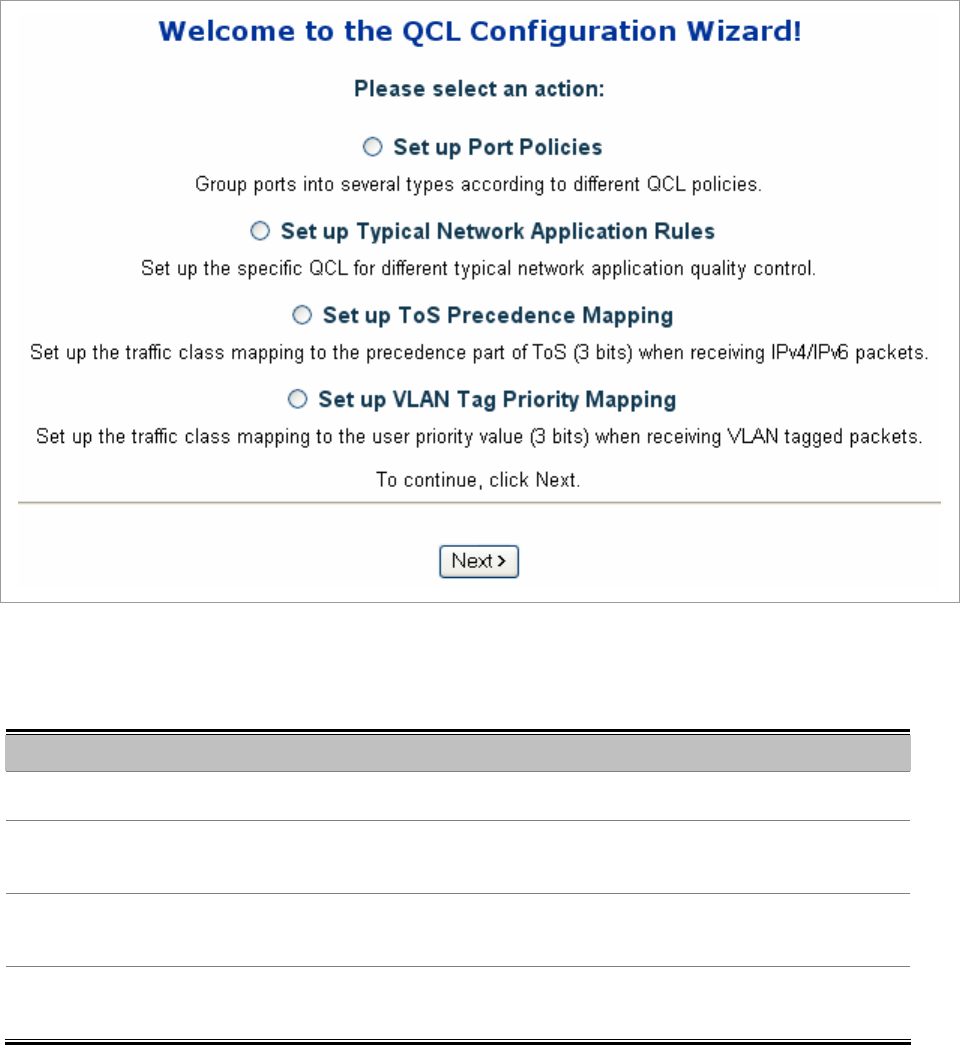

Figure 4-8-5 Welcome to the QCL Configuration Wizard page screenshot
The page includes the following fields:
Object Description
• Set up Port Policies
Group ports into several types according to different QCL policies.
• Set up Typical Network
Application Rules
Set up the specific QCL for different typical network application quality control.
• Set up ToS Precedence
Mapping
Set up the traffic class mapping to the precedence part of ToS (3 bits) when
receiving IPv4/IPv6 packets.
• Set up VLAN Tag
Priority Mapping
Set up the traffic class mapping to the User Priority value (3 bits) when receiving
VLAN tagged packets.
4.8.4.1 Set up Policy Rules
Group ports into several types according to different QCL policies. The settings relate to the currently selected stack unit, as
reflected by the page header. The screen in Figure 4-8-6 appears..
