User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
125

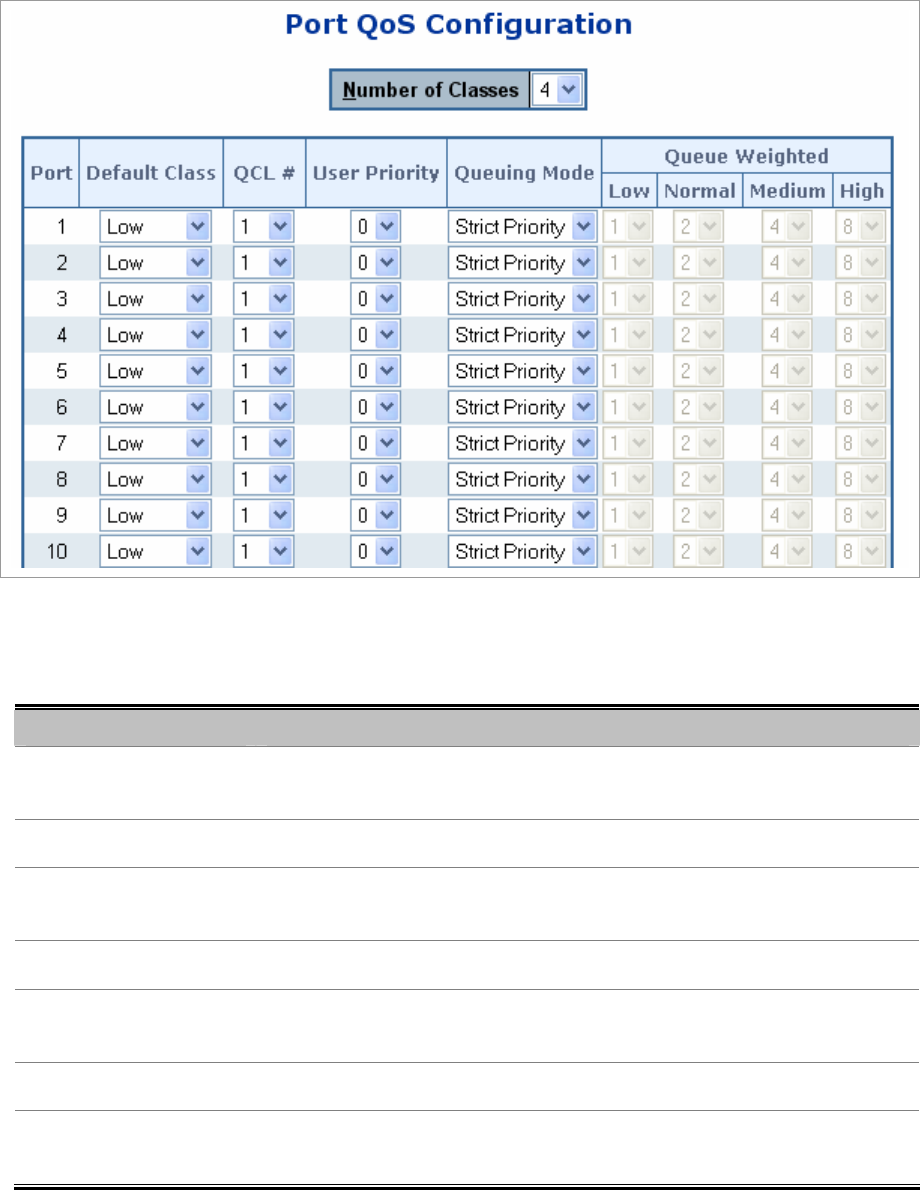

Figure 4-8-3 Port QoS Configuration page screenshot
The page includes the following fields:
Object Description
• Number of Classes
Configure the number of traffic classes as "1", "2", or "4".
The default value is "4".
• Port
The logical port for the settings contained in the same row.
• Default Class
Configure the default QoS class for the port, that is, the QoS class for frames not
matching any of the QCEs in the QCL.
• QCL #
Select which QCL to use for the port.
• User Priority
Select the default user priority for this port when adding a Tag to the untagged
frames.
• Queuing Mode
Select which Queuing mode for this port.
• Queue Weighted
Setting Queue weighted(Low:Normal:Medium:High) if the "Queuing Mode" is
"Weighted".
