User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
123
• Type Value
Indicates the value according to its QCE type.
• Ethernet Type: The field shows the Ethernet Type value.
• VLAN ID: The field shows the VLAN ID.
• TCP/UDP Port: The field shows the TCP/UDP port range.
• DSCP: The field shows the IPv4/IPv6 DSCP value.
• Traffic Class
The QoS class associated with the QCE.

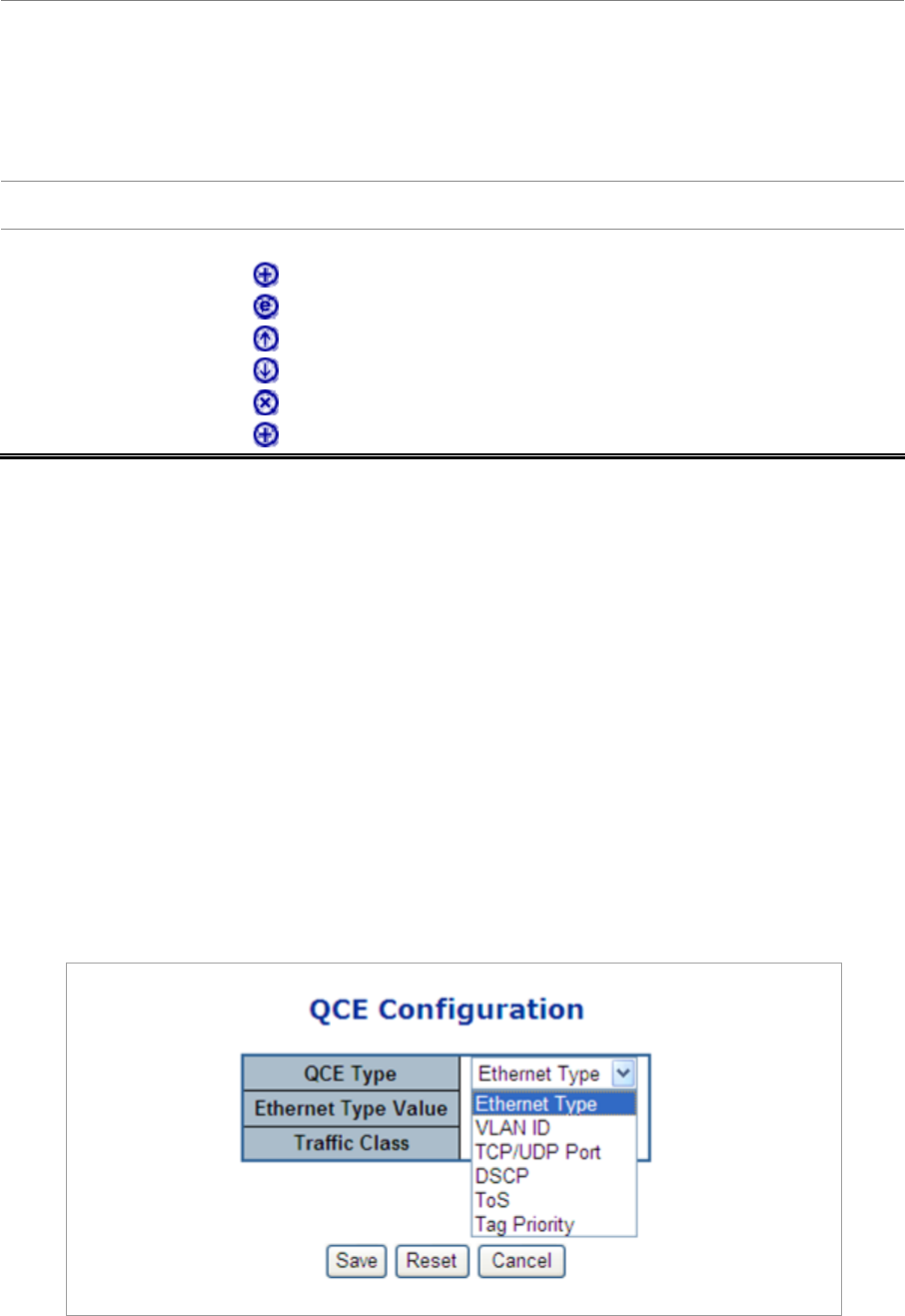

• Modification Buttons
You can modify each QCE in the table using the following buttons:
: Inserts a new QCE before the current row.
: Edits the QCE.
: Moves the QCE up the list.
: Moves the QCE down the list.
: Deletes the QCE.
: The lowest plus sign adds a new entry at the bottom of the list of QCL.
4.8.2.1 QoS Control Entry Configuration
Configure a new QoS Control Entry on this page.
Frames can be classified by up to 4 different QoS classes: Low, Normal, Medium, and High.
The classification is controlled by a QCL assigned to each port.
A QCL consists of an ordered list of up to 12 QCEs.
Each QCE can be used to classify certain frames to a specific QoS Class.
This classification can be based on parameters such as VLAN ID, UDP/TCP port, IPv4/IPv6 DSCP or Tag Priority.
Frames not matching any of the QCEs are classified to the default QoS Class for the port.
The QCE Configuration screen in Figure 4-8-2 appears.
Figure 4-8-2 QCE Configuration page screenshot
