User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
116
4.7.4 RSTP Port Configuration
This page allows the user to inspect the current RSTP port configurations, and possibly change them as well.
This page contain settings for aggregations and physical ports. The aggregation settings are stack global.
The RSTP port settings relate to the currently selected stack unit, as reflected by the page header.

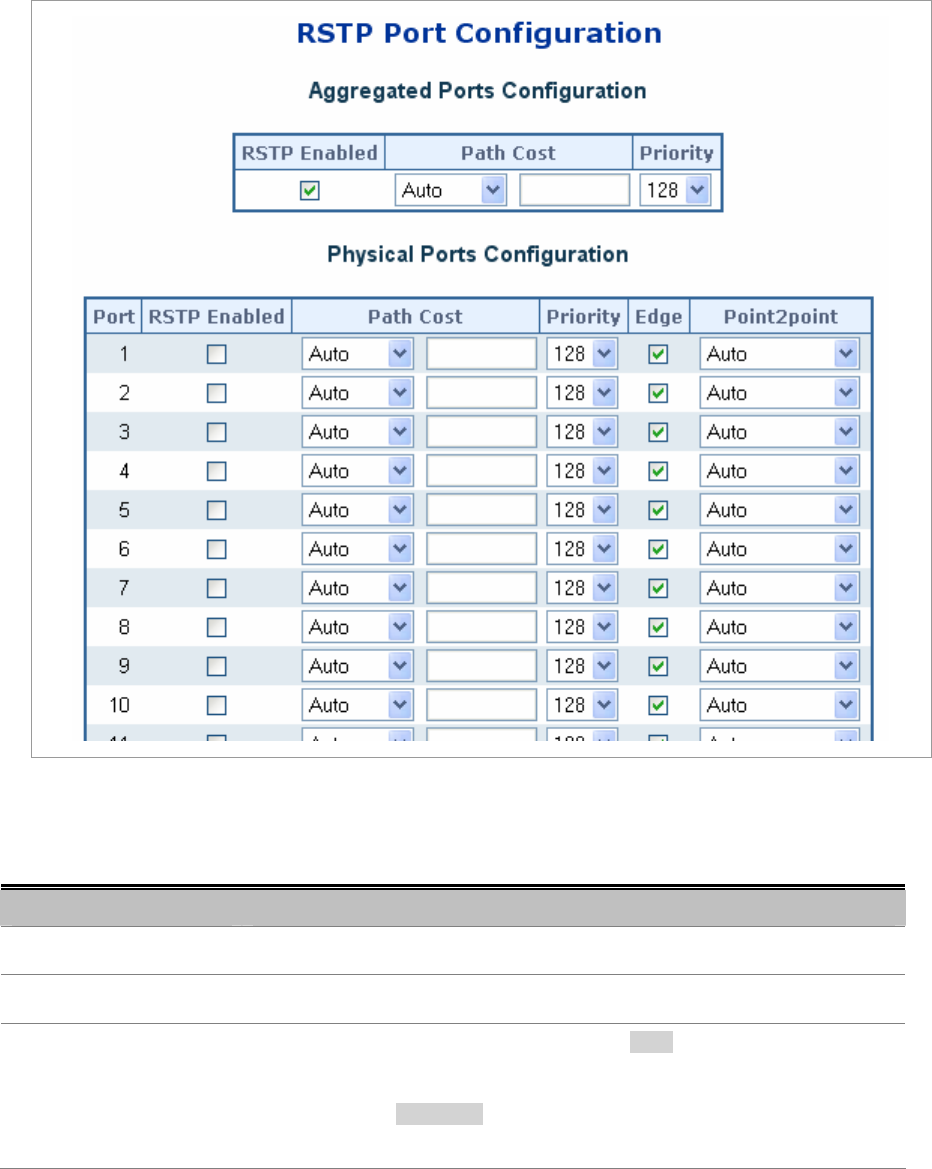

The RSTP Port Configuration screen in Figure 4-7-9 appears.
Figure 4-7-9 RSTP Port Configuration page screenshot
The page includes the following fields:
Object Description
• Port
The switch port number of the logical RSTP port.
• RSTP Enabled
Controls whether RSTP is enabled on this switch port.
• Path Cost
Controls the path cost incurred by the port. The Auto setting will set the path cost
as appropriate by the physical link speed, using the 802.1D recommended
values. Using the Specific setting, a user-defined value can be entered. The
path cost is used when establishing the active topology of the network. Lower
