User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
100
4.6.3 VLAN Basic Information
The VLAN Basic Information page displays basic information on the VLAN type supported by the Managed Switch.
The VLAN Basic Information screen in Figure 4-6-1 appears.

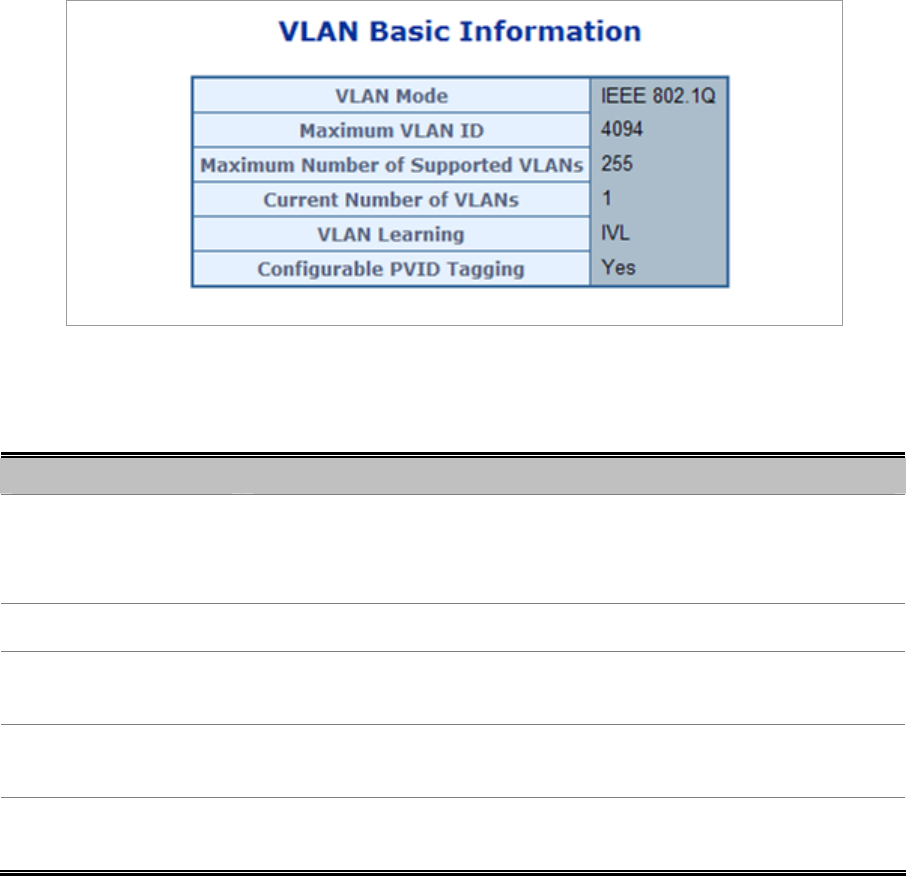

Figure 4-6-1 VLAN Basic Information page screenshot
The page includes the following fields:
Object Description
• VLAN Mode
Display the current VLAN mode used by this Managed Switch
Port-Based
IEEE 802.1Q VLAN
• Maximum VLAN ID
Maximum VLAN ID recognized by this Managed Switch.
• Maximum Number of
Supported VLANs
Maximum number of VLANs that can be configured on this Managed Switch.
• Current number of
VLANs
Display the current number of VLANs
• VLAN Learning
Display the VLAN learning mode. The Managed Switch supports IVL (IVL
Independent vlan learning).
