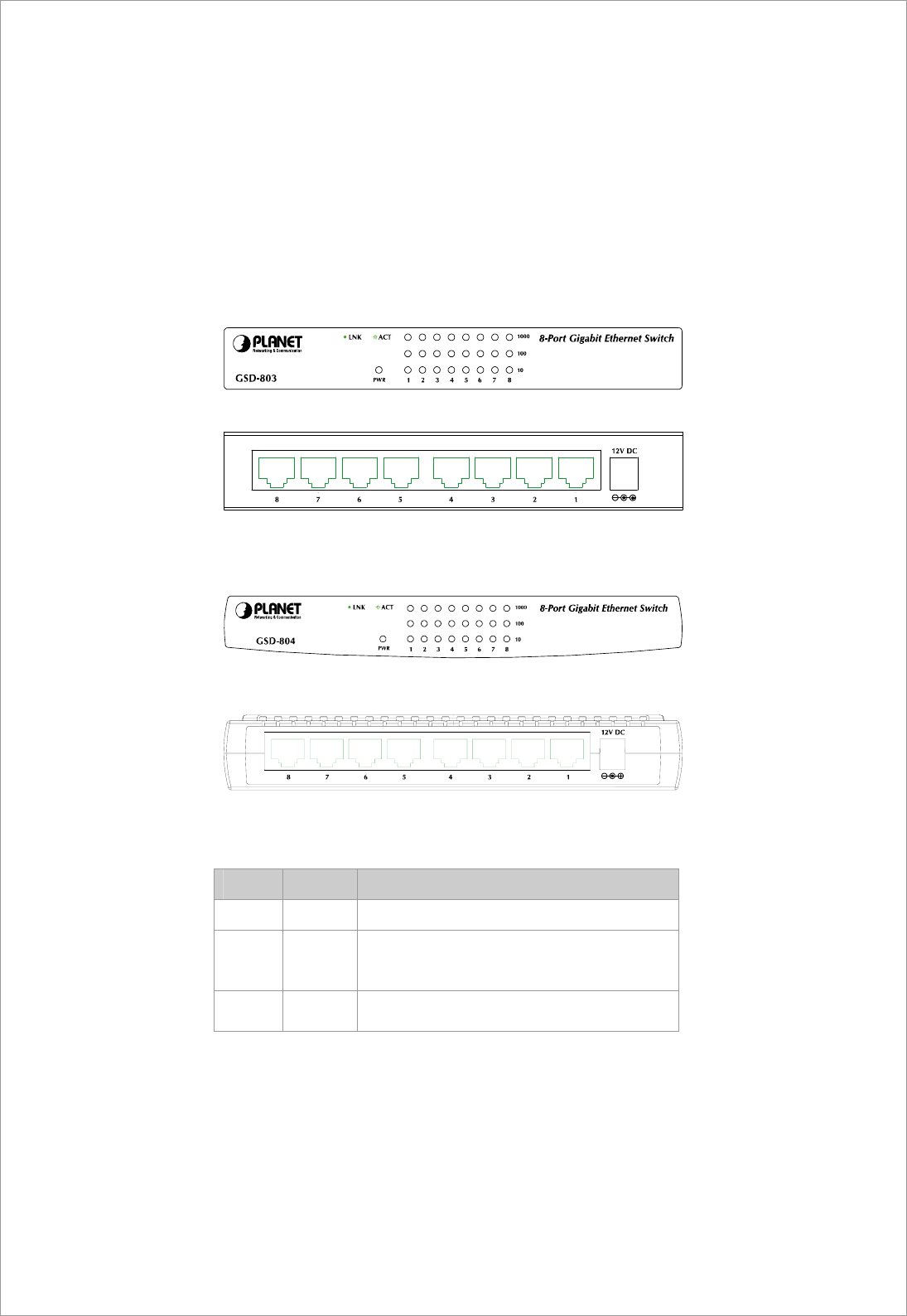

Figure 2-5 & 2-6 show the front panel and rear panel of GSD-803
Figure 2-5 GSD-803 front panel
Figure 2-6 GSD-803 rear panel
Figure 2-7 & 2-8 show the front panel and rear panel of GSD-804
Figure 2-7 GSD-804 front panel
Figure 2-8 GSD-804 rear panel
2.1.3 LED Indicators
LED Color Function
PWR Green Lit: Power on
1000 Green
Lit: indicate that the port is operating at 1000Mbps.
Blink: indicate that the switch is actively sending or
receiving data over that port.
100 Green
Lit: indicate that the port is operating at 100Mbps.
Blink: indicate that the switch is actively sending or
