Using the Lift Blocks
Planar UltraRes Series User Manual 19
Using the Lift Blocks
1 Attach the lift blocks to the back of the panel using the provided M8 x 35 pan
head screws.
2 Securely attach your lift mechanism to the eyehooks:
a Spreader bar attachment: A spreader bar allows for a small lift profile and less
stress on the panel and eyehooks than a single point attachment. This is the
preferred method.

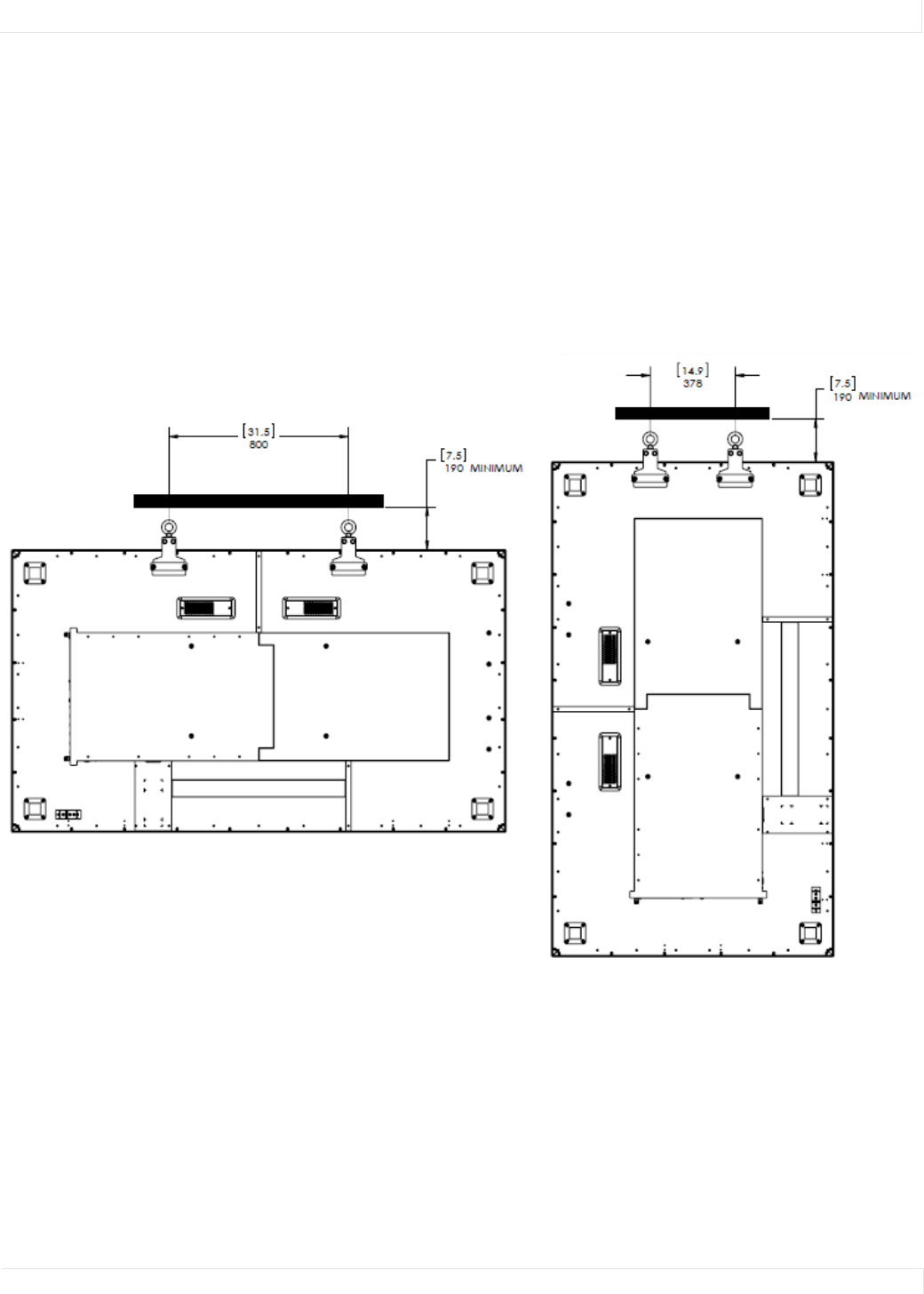

Spreader Bar Lift: Landscape
Spreader Bar Lift: Portrait
