Installing the Planar Profile Mounting System
Planar UltraRes Series User Manual 15
10 Line up the middle hole of the top wall mount with the screw hole drilled from
the template.

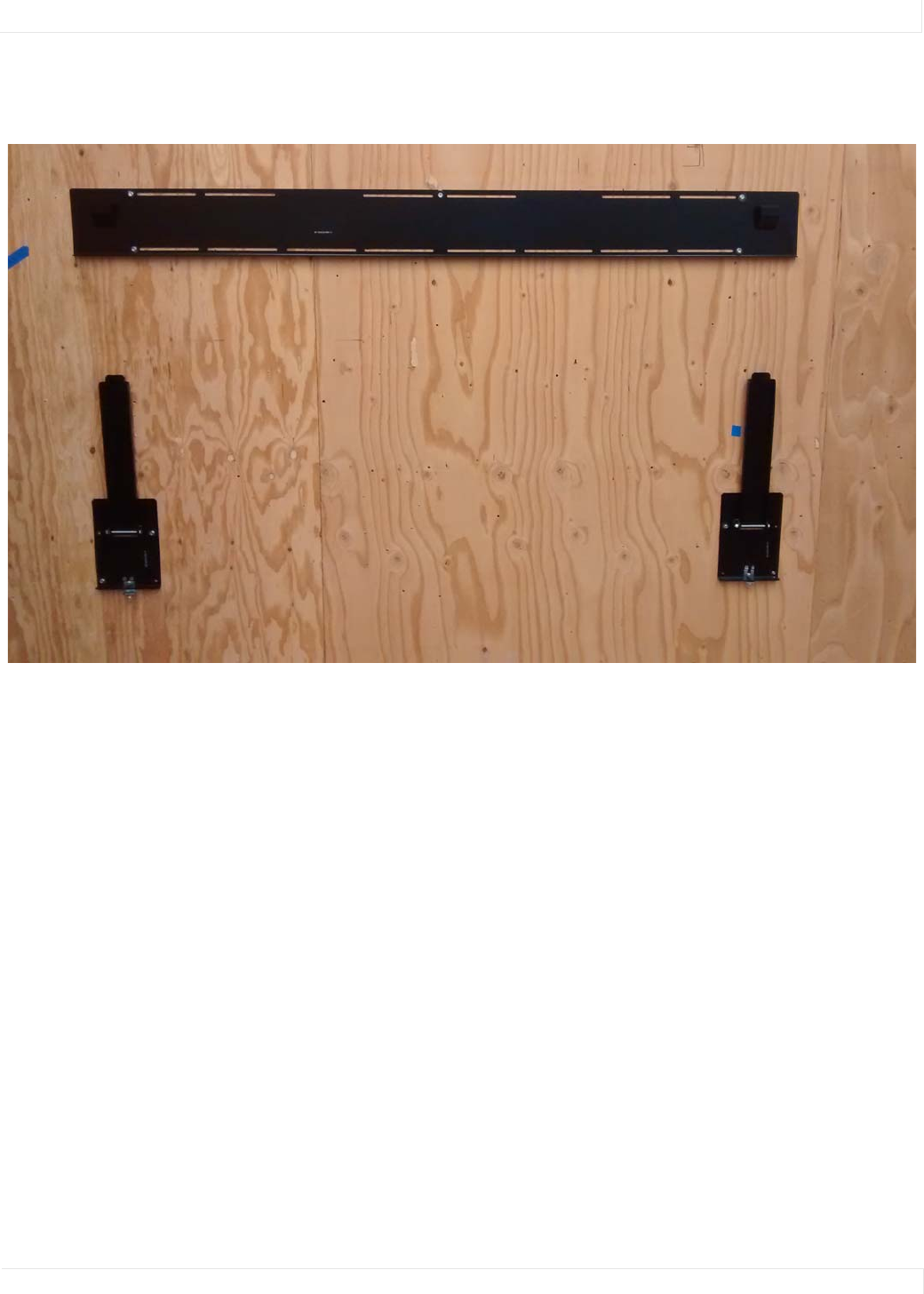

Note: This picture shows mounts for a landscape installation.
11 Tighten the screw into the mount.
12 Use a level to make sure the mount is level.
13 Then install additional screws as needed.
Note: Screws installed near the mount hooks provide the best support.
