Planar UltraRes Series - Standard Inputs
Planar UltraRes Series User Manual 9

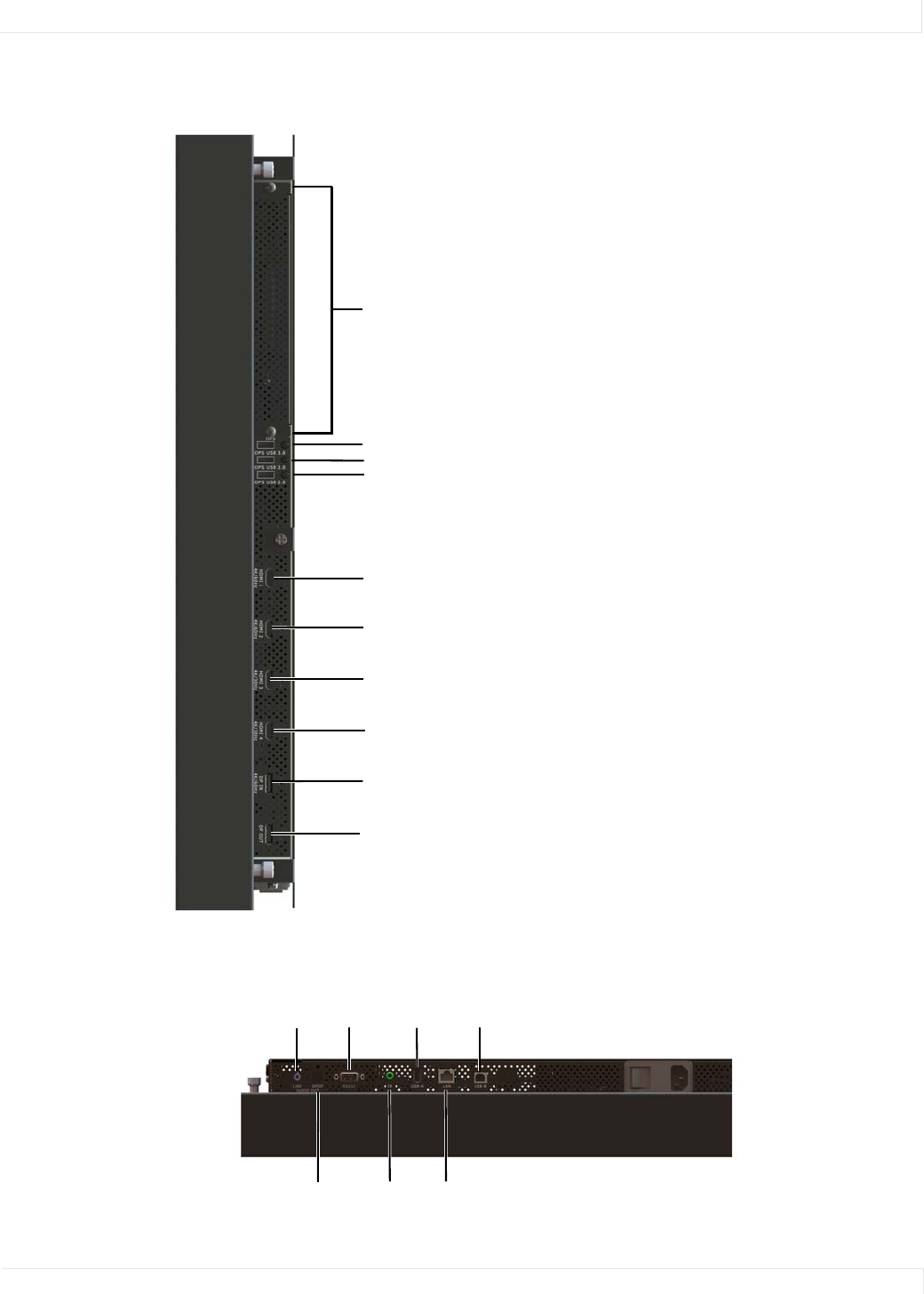

Planar UltraRes Series - Standard Inputs
OPS USB 3.0
OPS USB 2.0
OPS USB 2.0
HDMI 1: HDMI, 4K/60Hz, HDCP 2.2
HDMI 2: HDMI, 4K/60Hz, HDCP 2.2
HDMI 3: HDMI, 4K/30Hz
HDMI 4: HDMI, 4K/30Hz
DP OUT: DisplayPort Out
DP IN: DisplayPort In, 4K/60 Hz
OPS: 4K/60Hz
Note: Only one HDCP 2.2 source
can be displayed at a time. If HDMI 1
and HDMI 2 are both being shown
on the display at the same time,
only HDMI 1 will support HDCP 2.2
content.
LINE
AUDIO
OUT
RS232
USB-B
SPDIF
AUDIO OUT
IR LAN
USB-A
