Advanced Settings Menu
50 Planar UltraRes Series User Manual

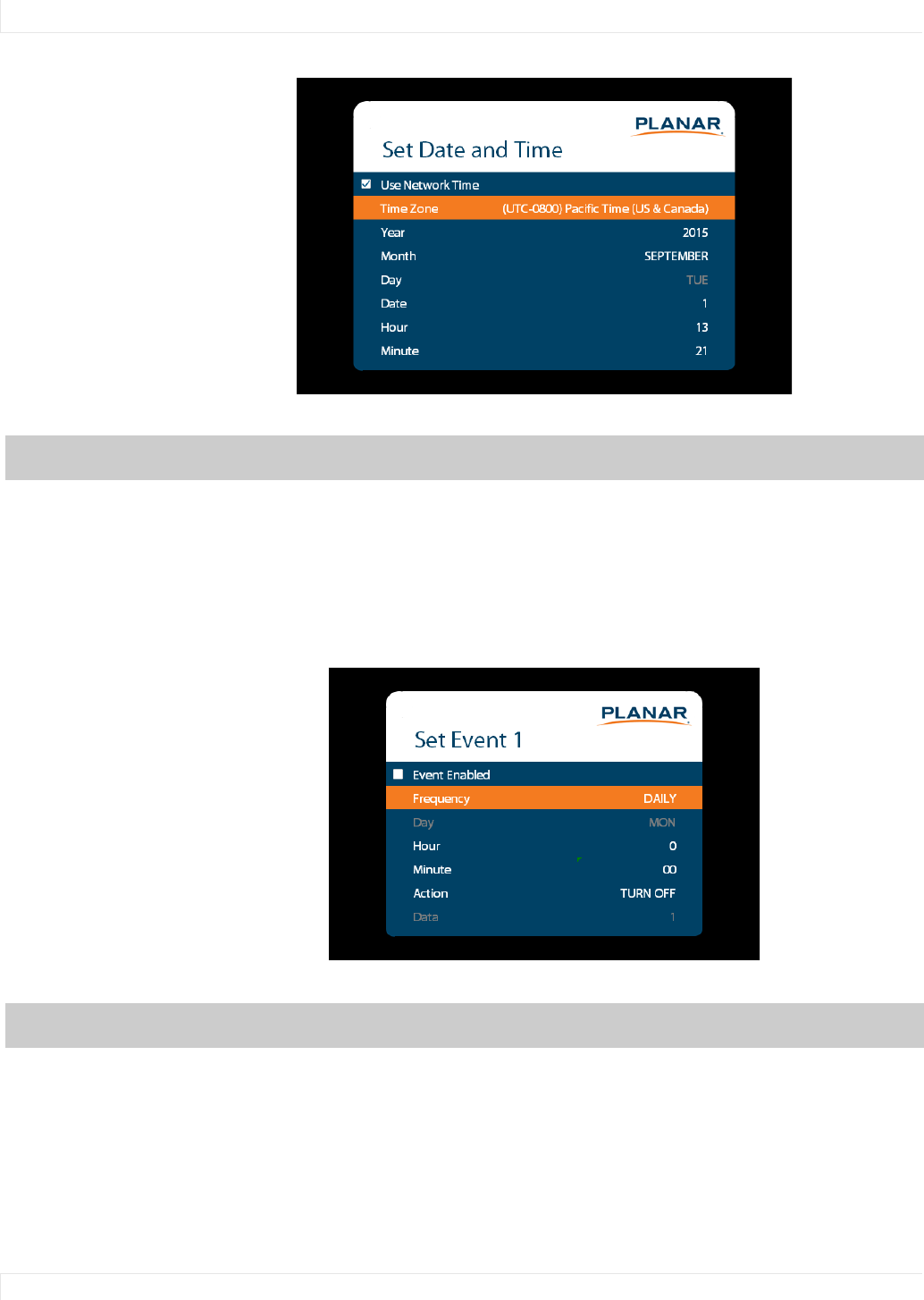

Set Date and Time
Set the internal system clock. If Use Network Time is unchecked, you can set the
following settings individually: Time Zone, Year, Month, Day, Date, Hour, and Minute.
Note: If Use Network Time is checked and DHCP is unchecked, the display will be unable
to obtain the network time unless a DNS server is programmed. This is done via the DNS
Server setting in the Network menu or the serial command interface.
Set Event 1~Event 20
Event Enabled: Turns on the event. If disabled, the settings are saved so that the event
can be re-enabled.
Frequency: The frequency of the event. Options are Daily, Weekly, Weekdays, Weekends.
Action: The action to take for the event. Options are Turn On, Turn Off, Recall, Panel
Brightness.
Data: The preset to recall when the Action is set to Recall, or the backlight setting when
the Action is set to Panel Brightness.
