Installing the Planar Profile Mounting System
18 Planar UltraRes Series User Manual
Caution: Be sure these are securely hung, as the top of the wall mount will hold all of the
weight of the display.
As an alternative, you can use the optional lift blocks along with a lift assist mech-
anism to lift the panel into place. For details, refer to "Using the Lift Blocks" on
page 19.

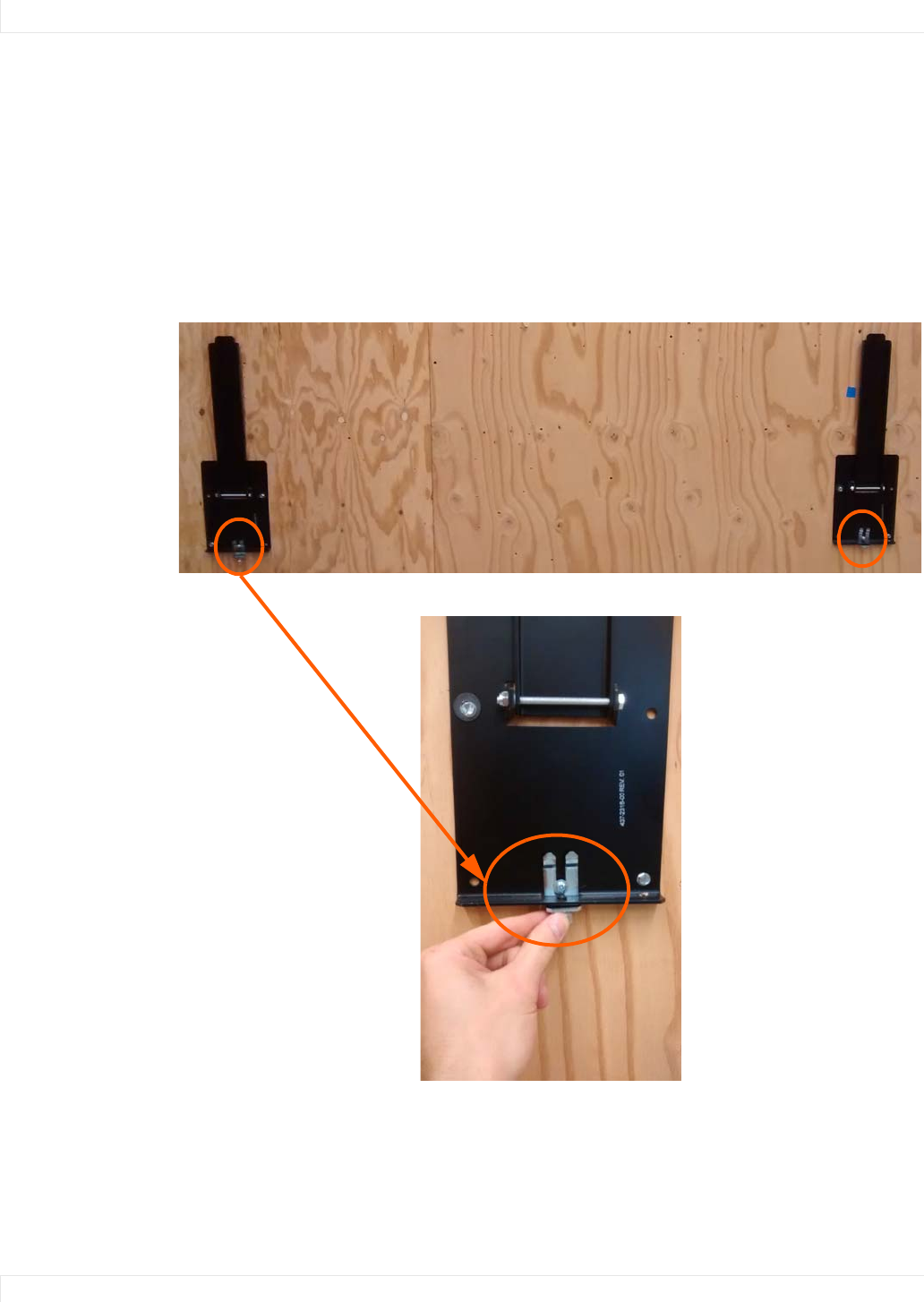

16 On the bottom wall mounts, there is locking hardware on the bottom of each
mount. Push the hardware up and finger tighten the captive screws on the
bottom to secure the display to the wall.
