Installing the Planar Profile Mounting System
14 Planar UltraRes Series User Manual

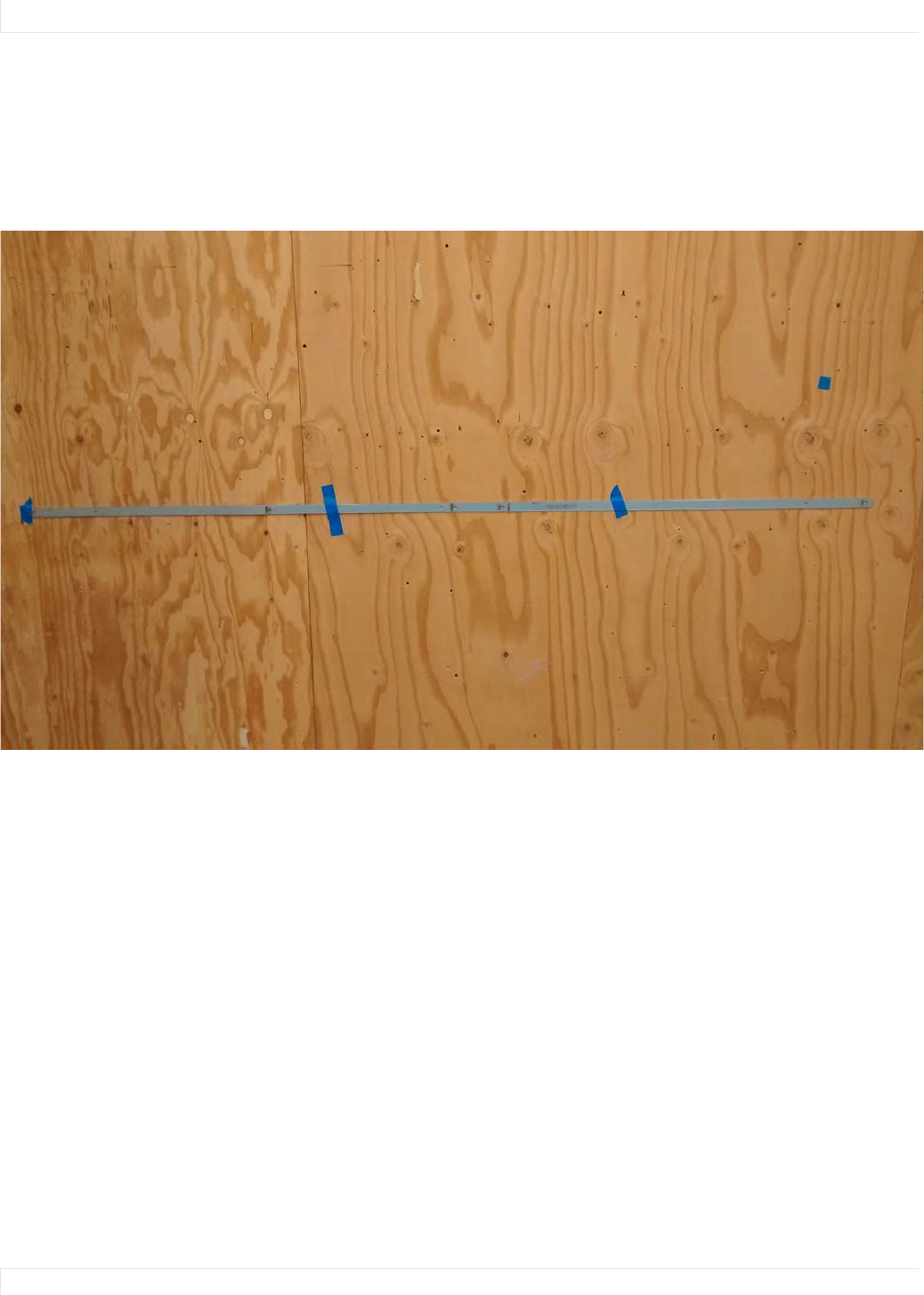

7 If you have screwed the template in place, remove each screw and the template.
8 Turn the template horizontally and line the appropriate center hole up with the
bottom hole you marked on the wall. This time, use the “LONG CENTER” for a
landscape panel and the “SHORT CENTER” for a portrait panel. Ensure that the
template is flat against the wall and level.
9 Mark hole locations for the bottom mounts. One side should use the next hole in
from the “TOP” labeled hole and the other should use the next inward hole from
“P BTM” for landscape or “L BTM” for portrait (ignoring the centering holes).
