Installing the Planar Profile Mounting System
Planar UltraRes Series User Manual 13

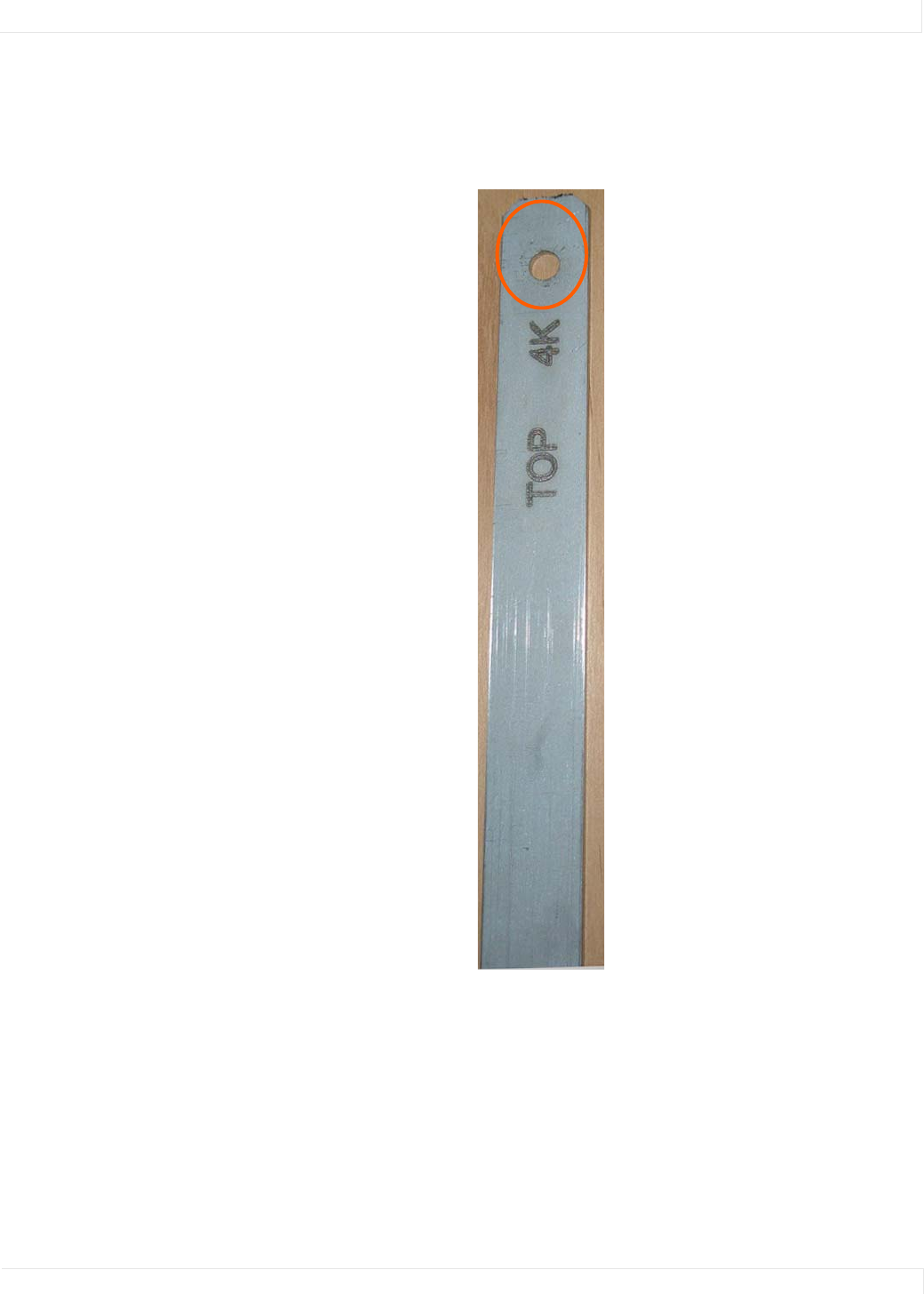

4 In the hole marked “Top” on the template, mark the center of the hole on the wall.
Be sure the vertical line runs through the center of the hole and that the template
is plumb. You may wish to screw the template in place to make the next steps
easier.
Note: If you are installing a landscape display and the template is too long, you can break the
template at the notch below the “L BTM” hole.
5 Let the template hang vertically so it is plumb, as the bottom hole in the template
determines where the bottom mount will be installed.
6 Mark the center of the hole at the bottom of the template that corresponds with
your display orientation.
