Installing the Planar Profile Mounting System
12 Planar UltraRes Series User Manual
3 Use the provided template to determine the center points of the wall mounts.
The “V” notches are labeled “Short Center” and “Long Center”. Use the “Short
Center” hole for a landscape display and the “Long Center” hole for a portrait
display. Use the appropriate “V” notch to align with the horizontal line drawn in
the previous step.

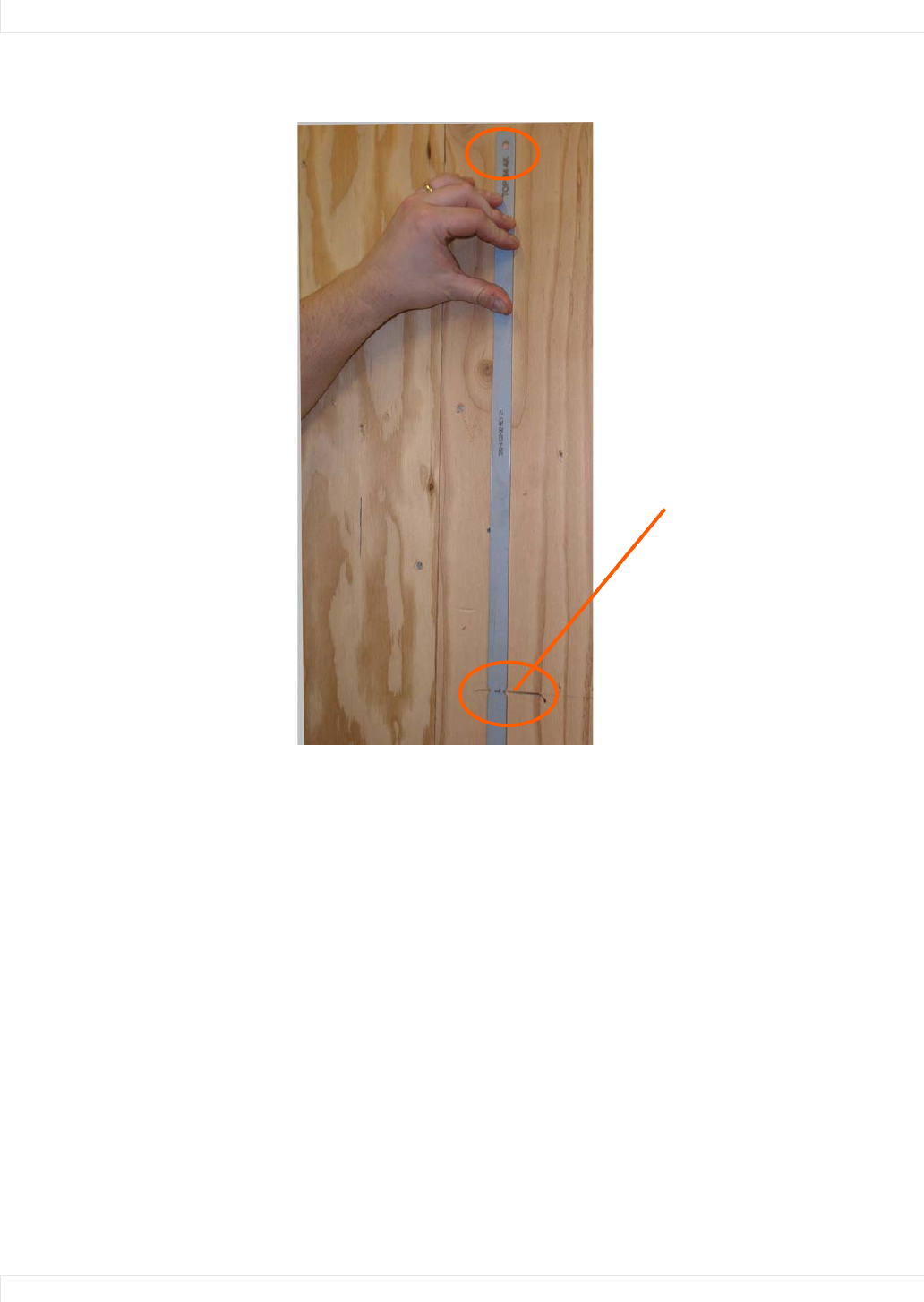

Center notch alignment
