Installing the Planar Profile Mounting System
Planar UltraRes Series User Manual 11
Installing the Planar Profile Mounting System
Caution: For whatever structure is used to mount the display, be sure that it is sufficiently
engineered to handle the weight of the display. Also be sure to purchase the correct
hardware needed to support the display mounted to that structure.
Caution: If the unit being installed is fitted with a touch input device, it is important that the
touch frame is not used to lift the unit. Also, the unit should never be placed on the touch
frame to support the unit.

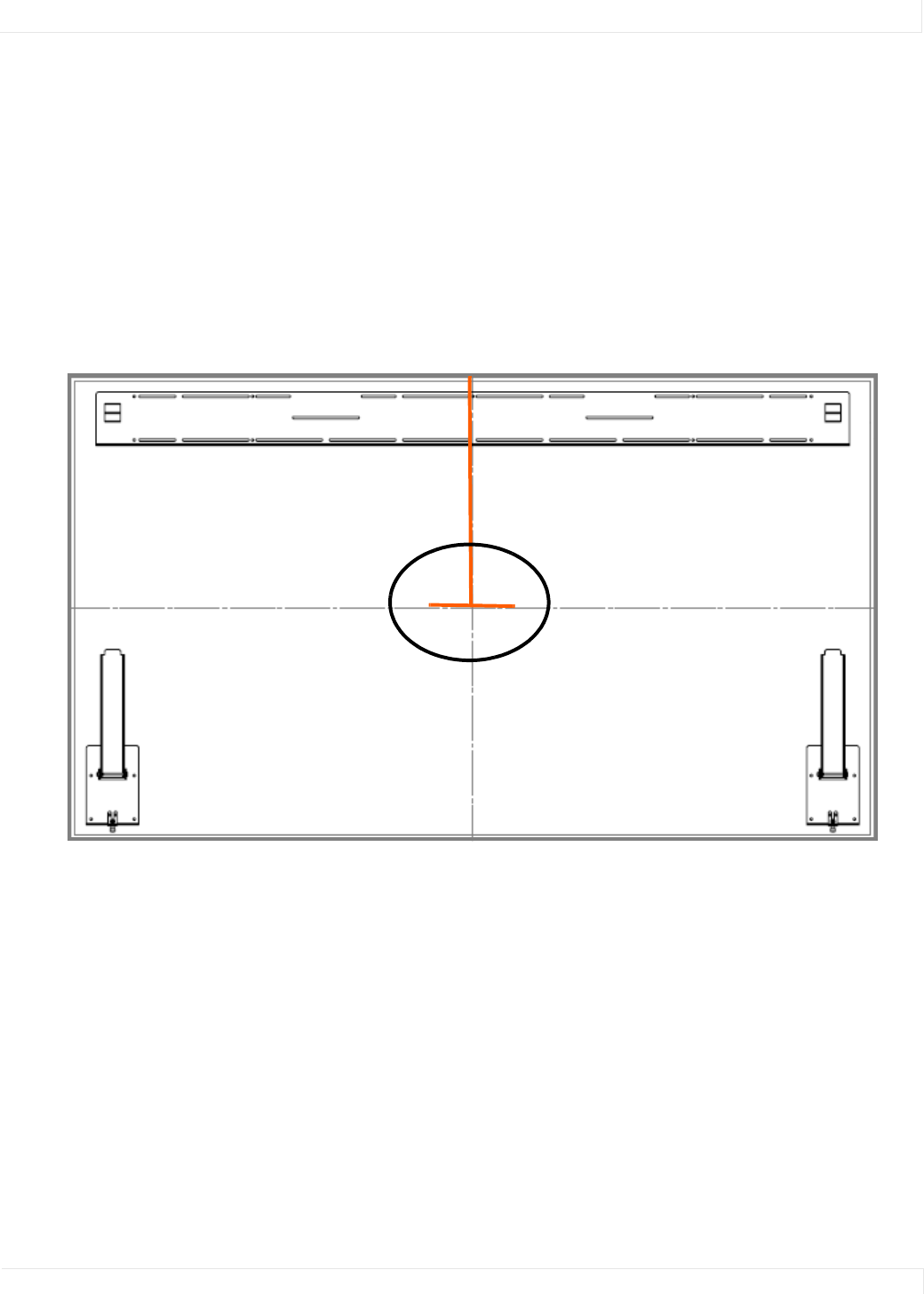

1 Find the center point of the display on the wall where you intend to install it.
2 Draw a short (about 1”) horizontal line and then a vertical line to just below the
top edge of the display.
