Planar UltraRes Remote Monitoring Software
Planar UltraRes User Manual 65

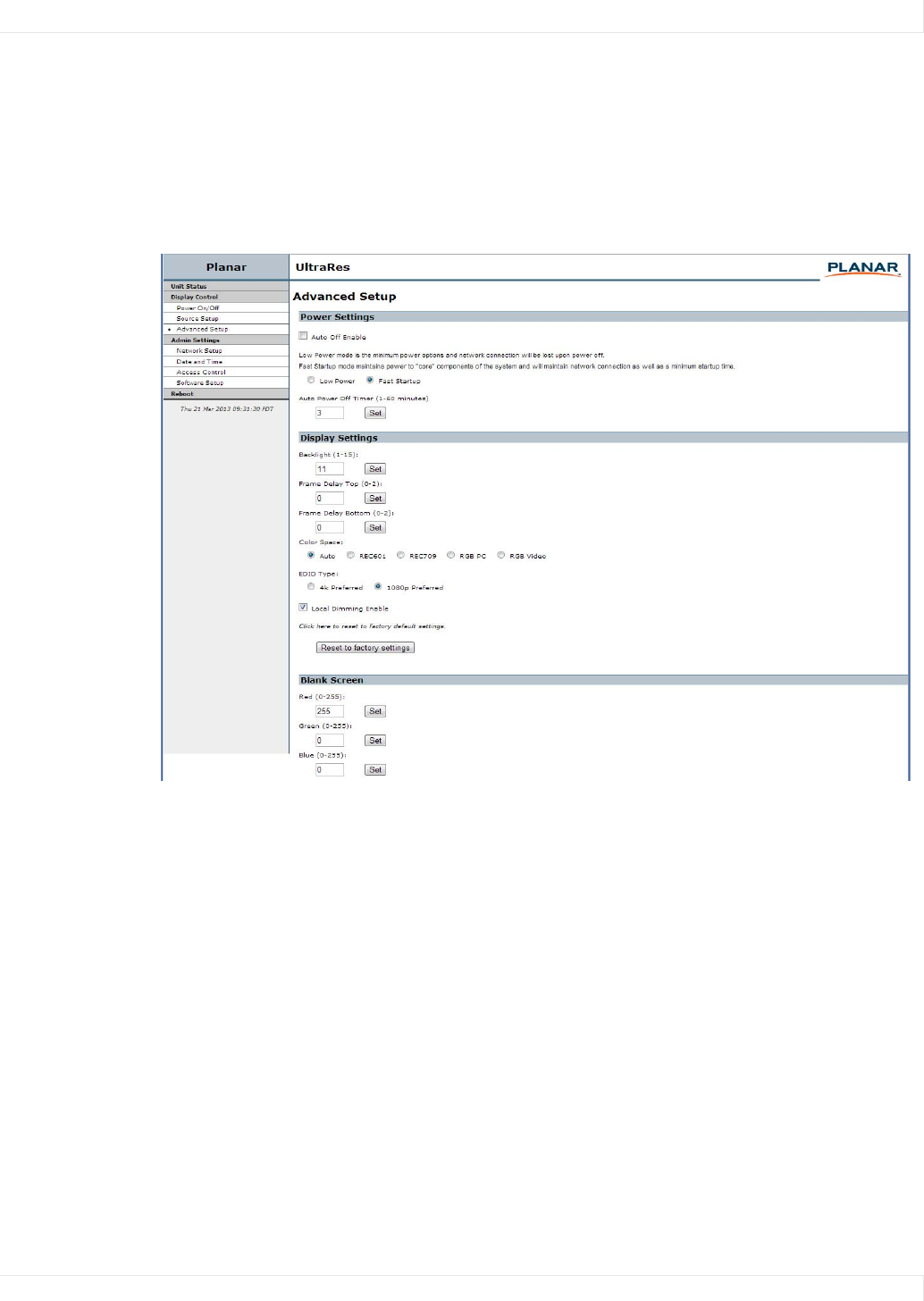

Advanced Setup
The Advanced Setup page allows you to perform many of the same tasks that you
can on the UltraRes Control software program, including selecting the power mode
that works best for your display, which includes low power or fast startup. You can
also select many display settings such as backlight intensity, frame delay, color space
definitions and RGB settings.
