Planar UltraRes Remote Monitoring Software
64 Planar UltraRes User Manual

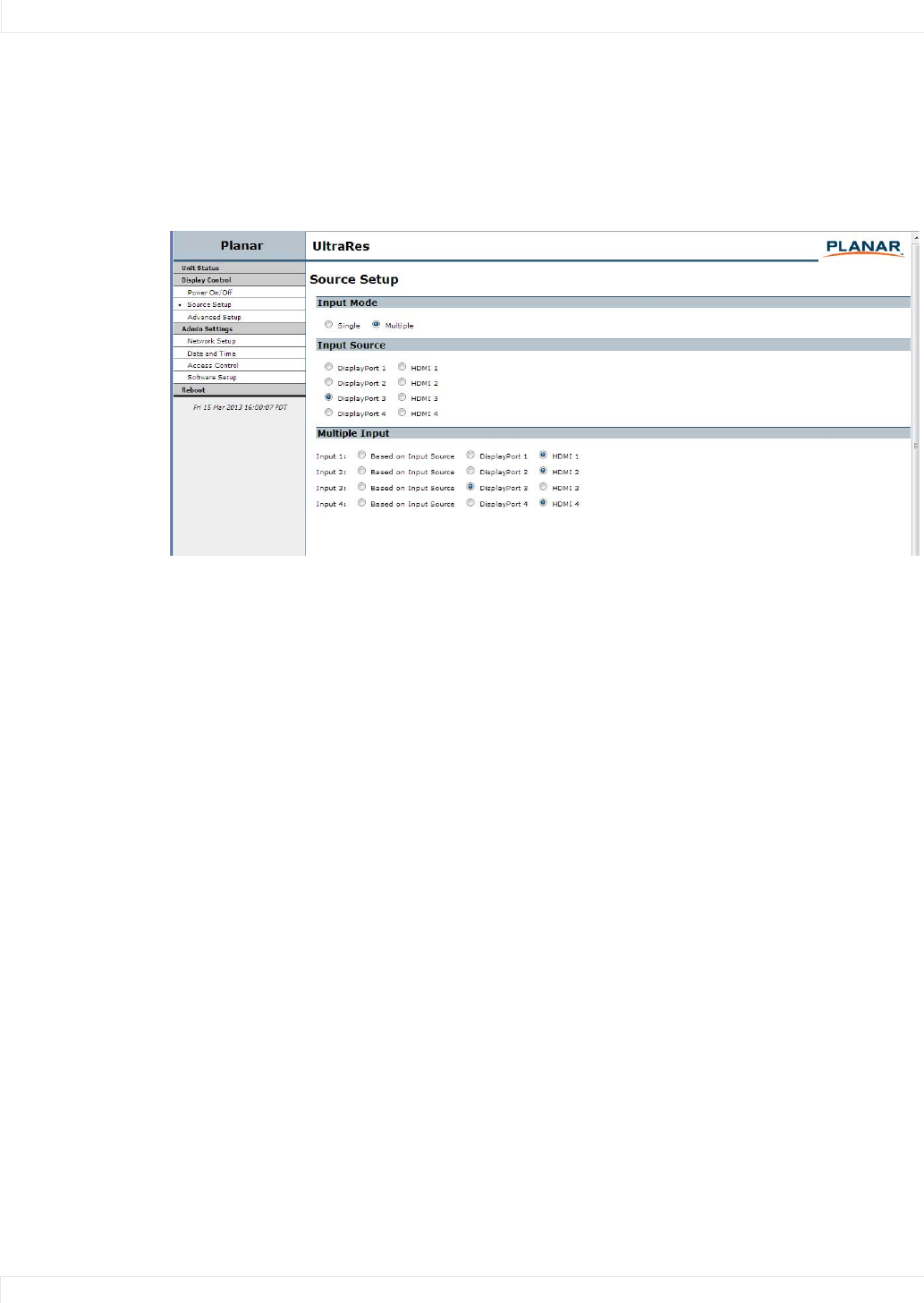

Source Setup
The Source Setup page allows you to perform the same tasks that you can using the
UltraRes Control software: select single or multiple input model, select an input
source for each input in single input mode, and different options for selecting inputs
in multiple input mode.
