Changing Backlight Intensity
46 Planar UltraRes User Manual
Changing Backlight Intensity

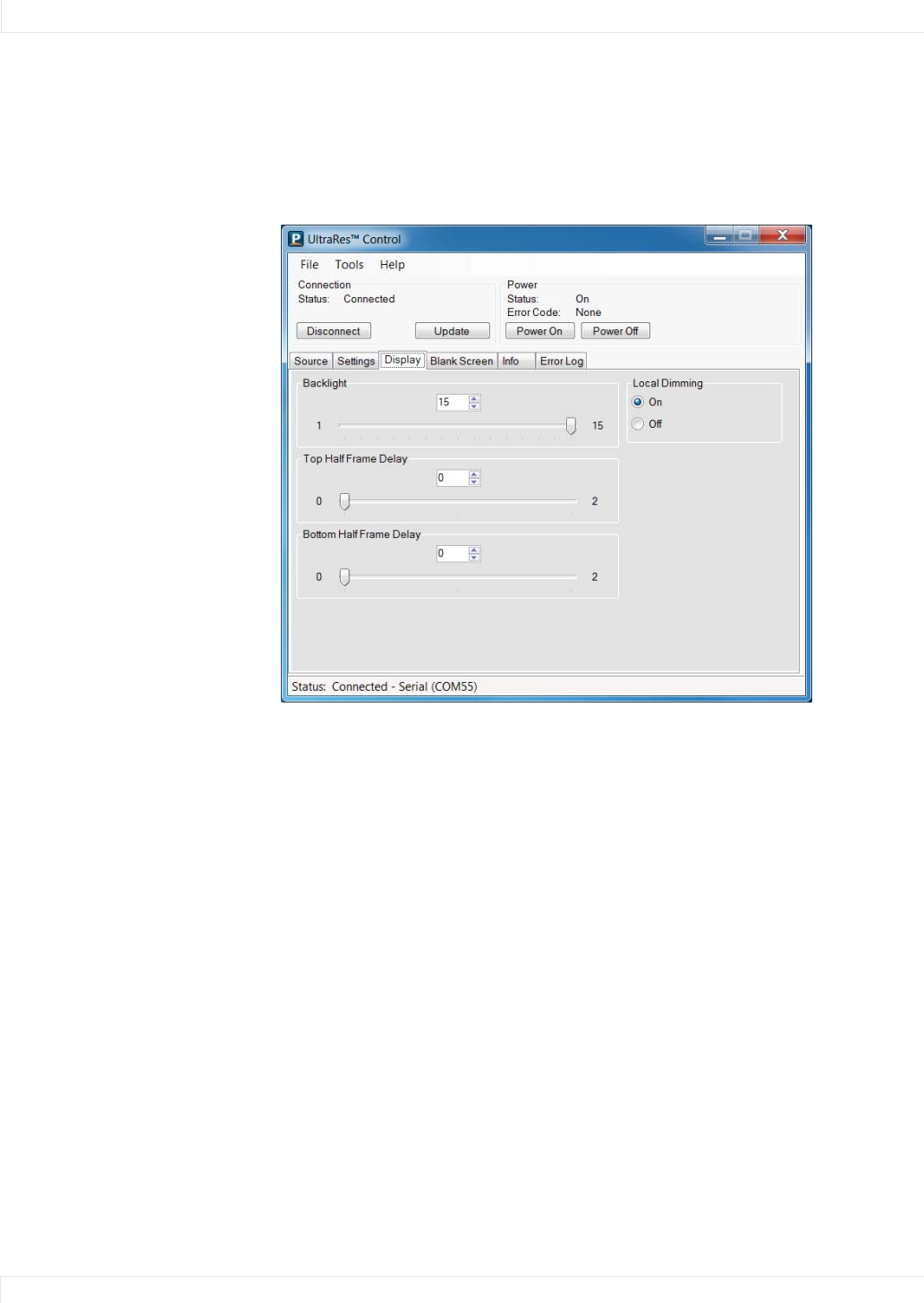

To change the brightness of the display, use the BACKLIGHT slider on the Display tab. If
you want a brighter display, move the slider towards a higher number. If you want to
conserve power and increase backlight life, move the slider towards a lower number.
Turning Local Dimming On or Off
Local Dimming allows the LED edge lighting to dynamically adjust based on the
source content. Turning this feature on shows darker black levels, which in turn has a
higher contrast ratio. Because this feature dims a large area at once, the performance
may not be as good as direct array LED backlighting.
Changing Frame Delay
With some quadrant sources, the top and bottom halves of display can show frame
tearing, at a delay of one frame per second. If you see frame tearing, use the
TOP HALF
FRAME DISPLAY and BOTTOM HALF FRAME DELAY sliders to compensate.
