Auto Power Off Timer
Planar UltraRes User Manual 45

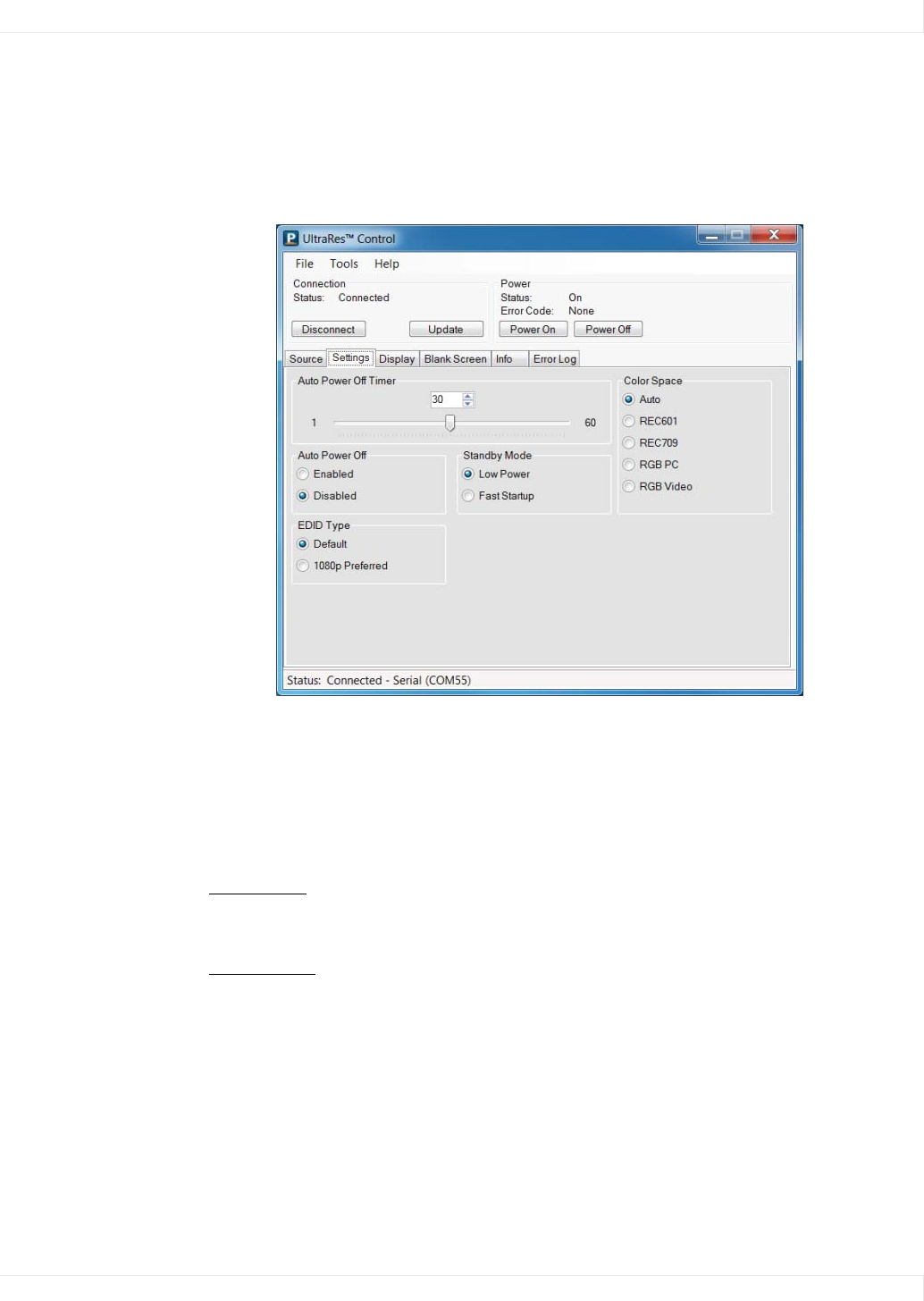

Auto Power Off Timer
If you want the power to automatically turn off if there is no incoming source for a
certain amount of time, use the AUTO POWER OFF TIMER slider on the Settings tab and
select between 1-60 seconds.
Standby Mode
This mode allows you to choose between a low power setting, which saves energy, or
a “fast startup” mode that keeps the AC power supplies running. Below each option is
described and why you might want to select it.
•Low Power
- Powers off every component and board possible, which helps
conserve energy. In standby mode, the low power option only uses 0.5W of
power.
• Fast Startup - Keeps AC power supplies running takes a little less time to power
up and it is also needed if you intend to continually use networking capabilities.
