Setting Up Sources
44 Planar UltraRes User Manual

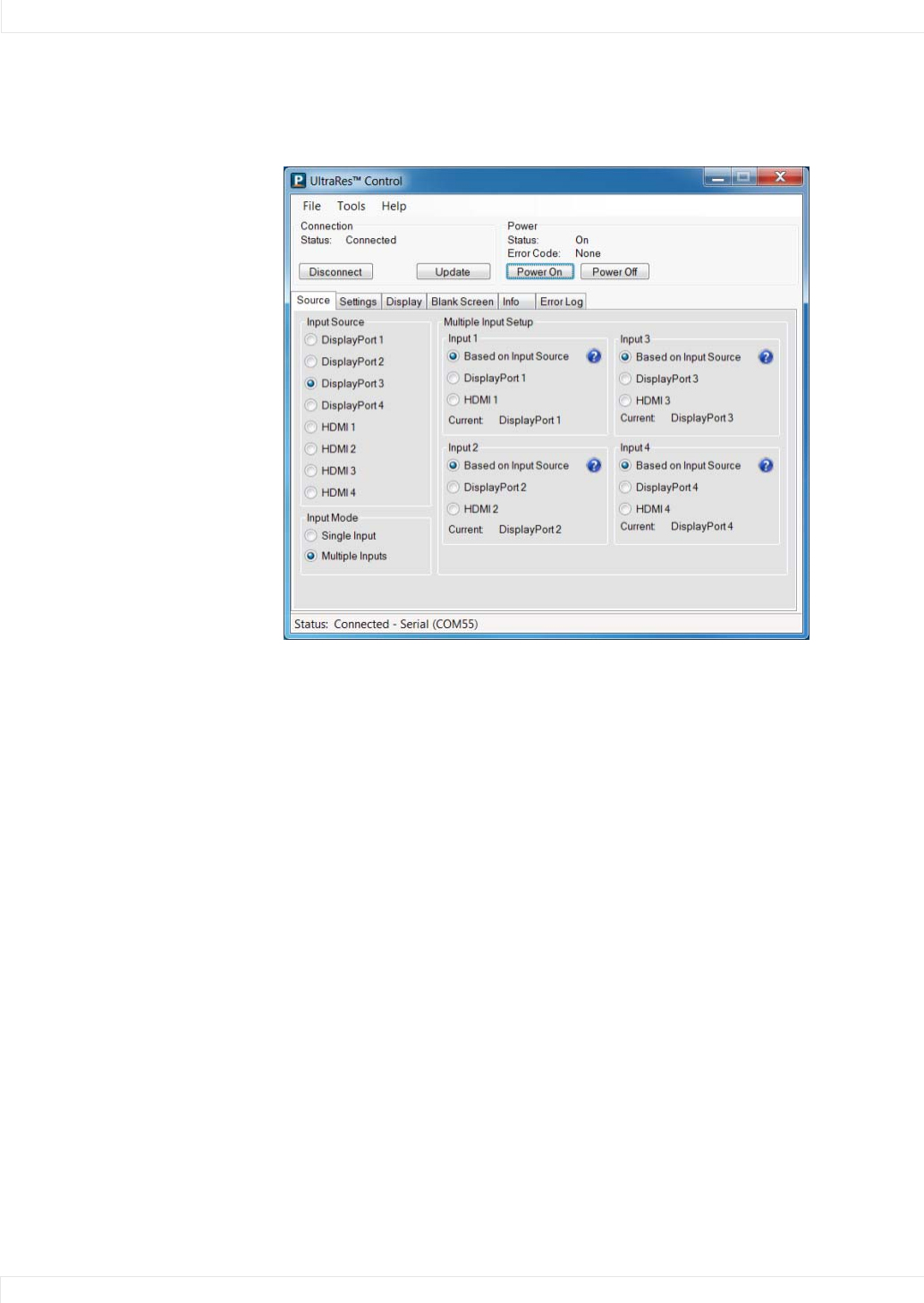

4 If the connection is successful, the “Status” at the top of the window will show
“Connected.” Note that all tabs are now accessible and can now be changed if
needed.
Setting Up Sources
This information is covered earlier in the manual. Please see "Setting Up UltraRes
Using Multiple Inputs" on page 32 and "Setting Up UltraRes Using Single Inputs" on
page 34 for setup information.
