Installing USB Drivers
Planar UltraRes User Manual 43

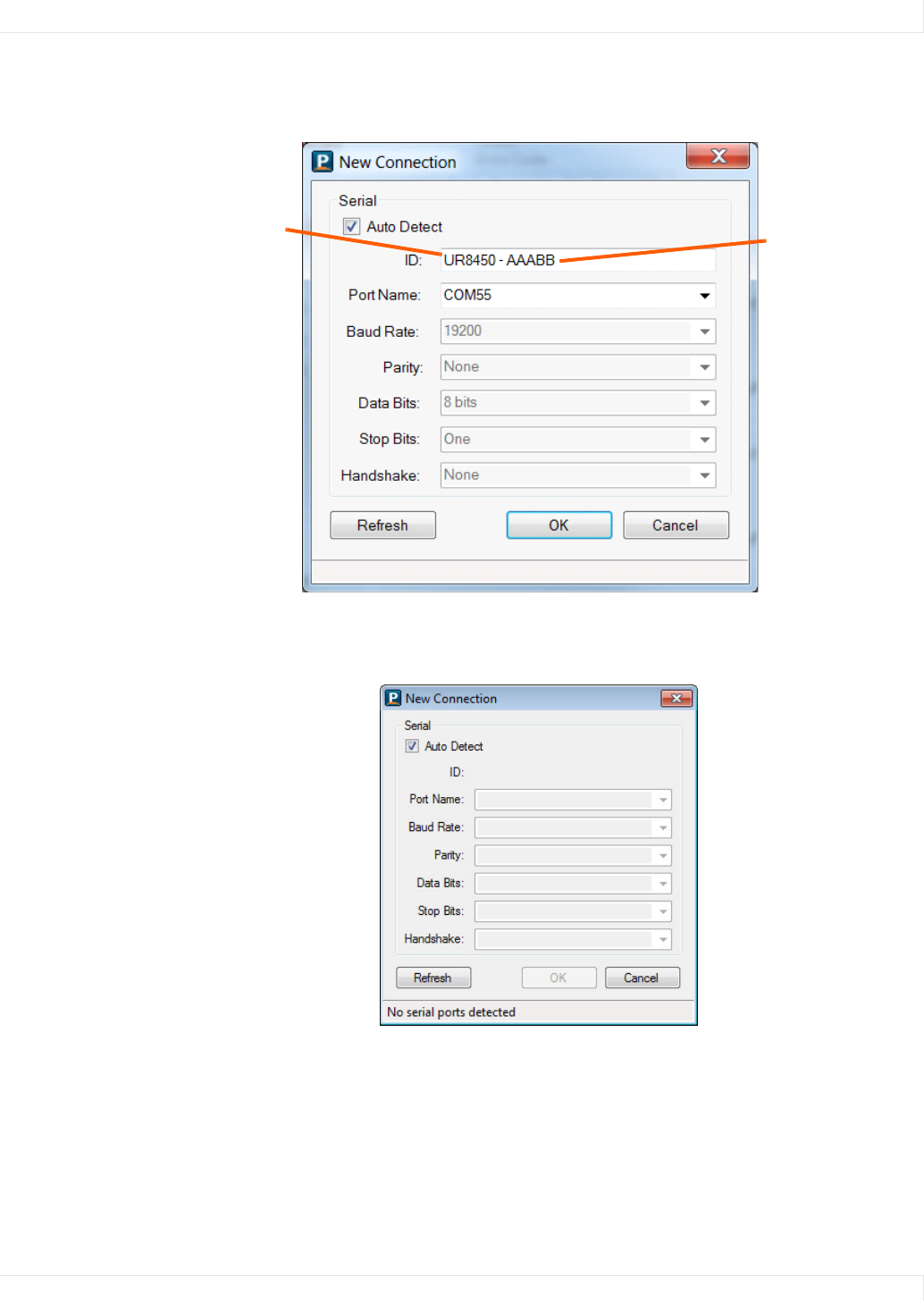

3 The tool will then attempt to auto detect any inputs that are already connected. If
one is detected, the following window appears with information already filled in.
If no inputs are auto-detected, you will see a window similar to the following.
Notice all fields are grayed out and cannot be changed.
Model name
Serial number
