38 Planar UltraRes User Manual
3 Click Next to continue.

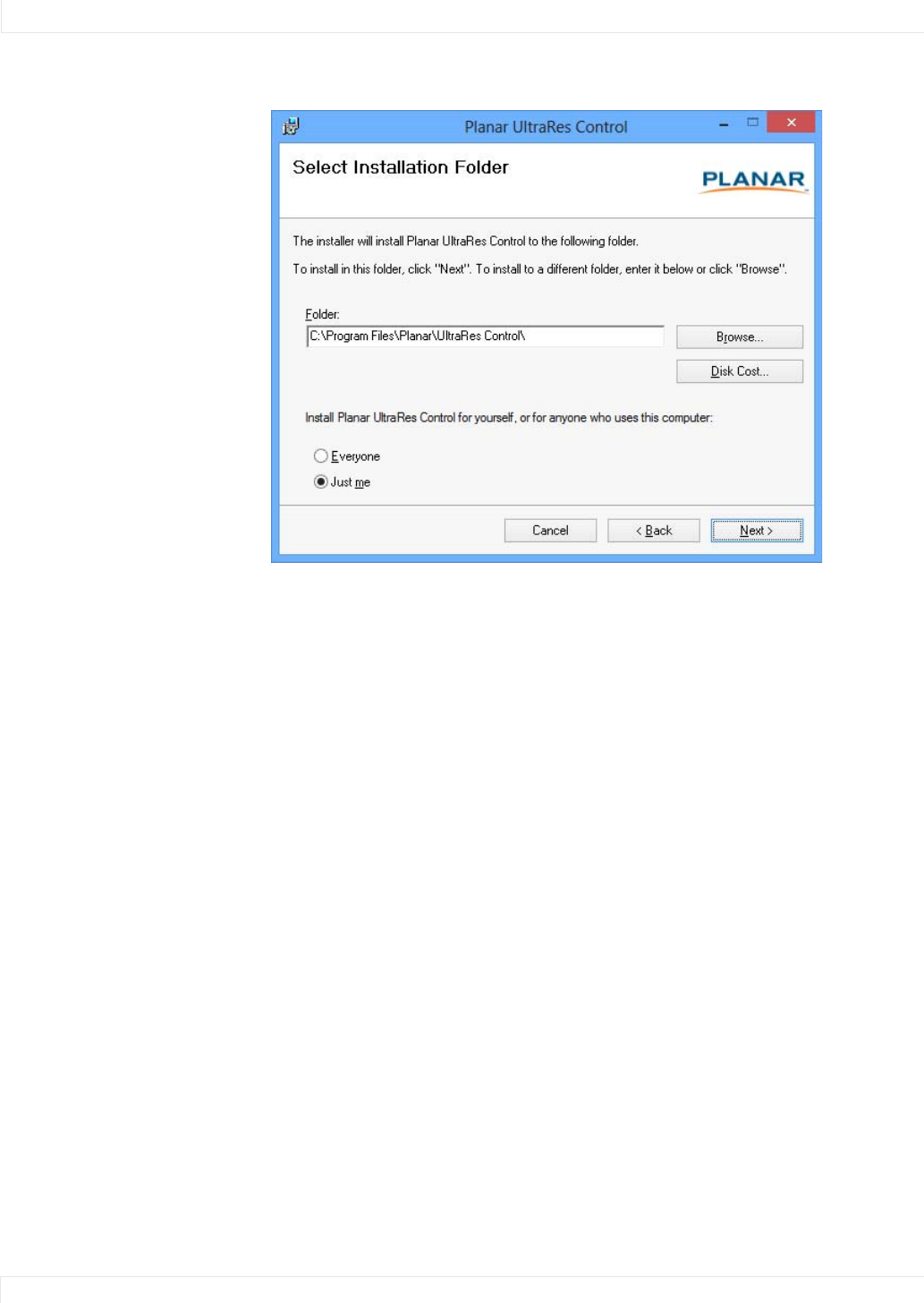

4 If you want to save the UltraRes Control files to a different location, click the
Browse button and save to the folder of your choice.
5 If you want to see how much space is on your hard drive, click the Disk Cost...
button to review storage capacity.
6 Do one of the following:
• If you want other users to have access to the UltraRes Control software, select
the Everyone radio button.
• If you want to be the only user who can access the UltraRes Control software,
select the Just me radio button.
7 Click Next to continue.
