Planar UltraRes User Manual 37
Installing the UltraRes
Control Software
The UltraRes Control software is used as your primary tool for display setup. Use the
following instructions to install the UltraRes Control software.
1 Save the UltraRes Control.exe program to your computer’s hard drive.

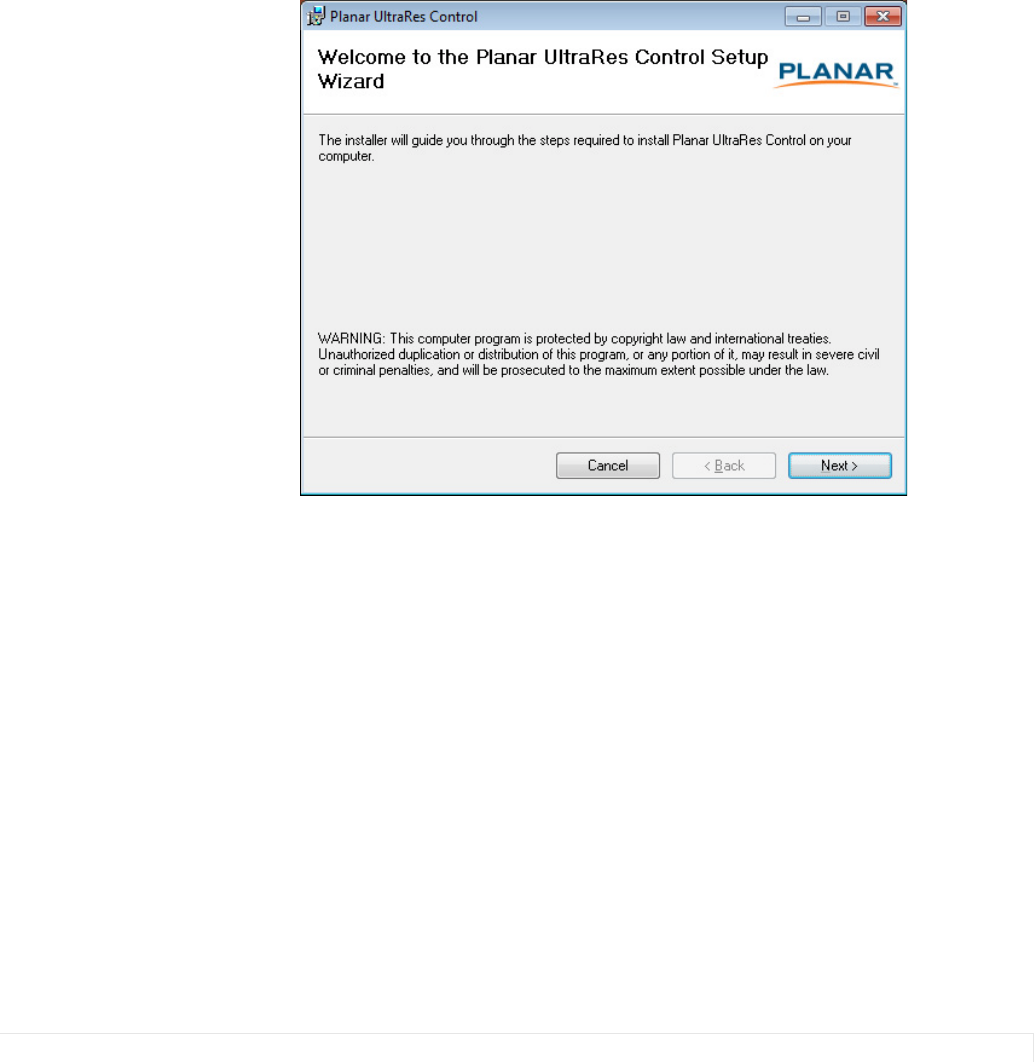

2 Double click the .exe file to open the installer program.
