Connections
Planar UltraRes User Manual 31
Connecting Sources
The graphics card that you install on your main PC will determine what outputs will
be plugged into the Planar UltraRes display. For example, some graphics cards have
two HDMI outputs and two DisplayPort outputs. Any combination of these outputs is

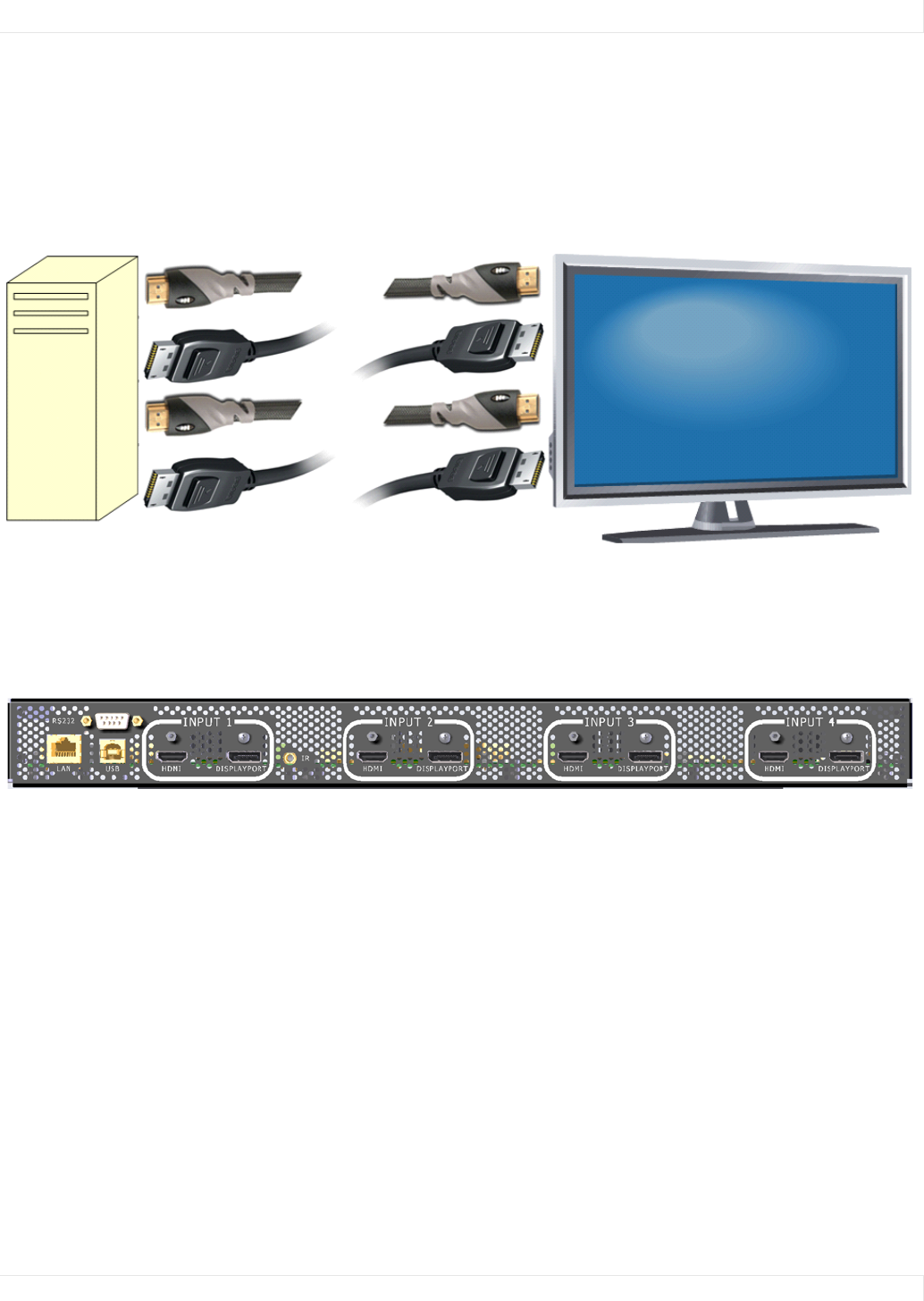

fine. Below is a visual example of how a basic connection might look.
In the example below, using four input channels on a computer, you would use one
connector to connect to for each input on the I/O panel on the UltraRes display, as
shown below.
As an example, you could use the following:
• Input 1 - HDMI 1
• Input 2 - DisplayPort 2
• Input 3 - DisplayPort 3
• Input 4 - HDMI 4
Note: You cannot plug into two ports on the same input channel. For example, you can’t
plug into HDMI 1 and DisplayPort 1 in Input 1 as shown above. You can only connect to one
input for each input channel.
