Installing an UltraRes Display on a Wall
Planar UltraRes User Manual 29

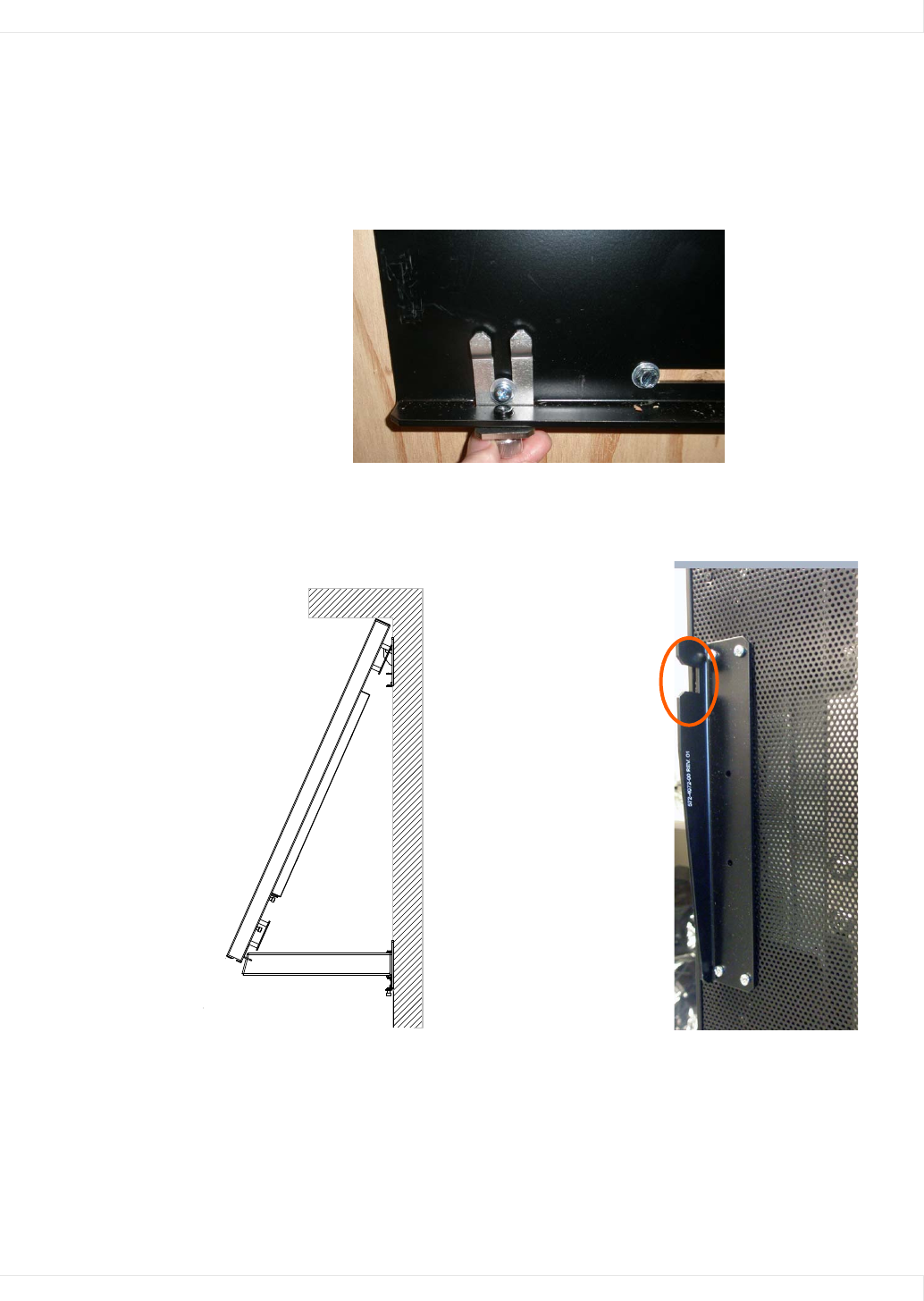

Using the Kickstand Bracket
The kickstand bracket is used for service mode, without having to remove the display
from the wall. Use the following instructions to put the display in service mode.
1 Loosen the captive locking screws on both sides of the bottom mount.
2 Pull the display out and then swing out the kickstand to hold it in place. The
kickstand will nest into the kickstand bracket notch.
Service position -
with kickstand
supporting display
