Installing an UltraRes Display on a Wall
Planar UltraRes User Manual 27

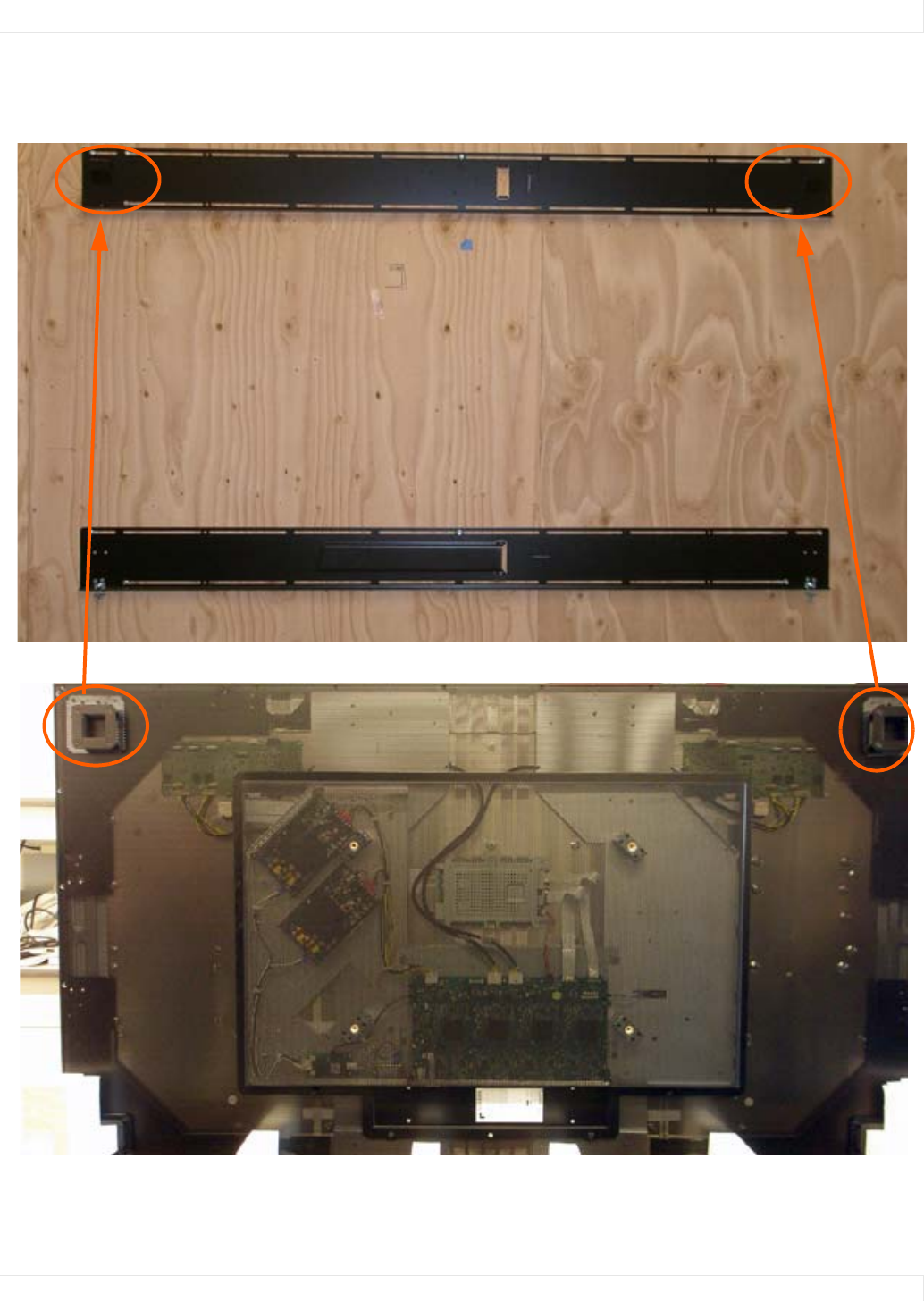

14 Using two people, carefully hang the back display onto the top wall mount
bracket using the square brackets on the back of the display.
Caution: Be sure that these are securely hung, as the top of the wall mount will hold most of
the weight of the display.
