Installing an UltraRes Display on a Wall
22 Planar UltraRes User Manual
Installing an UltraRes Display on a Wall
Caution: For whatever structure is used to mount the display, be sure that it is sufficiently
engineered to handle the weight of the display. Also be sure to purchase the correct
hardware needed to support the display mounted to that structure.
1

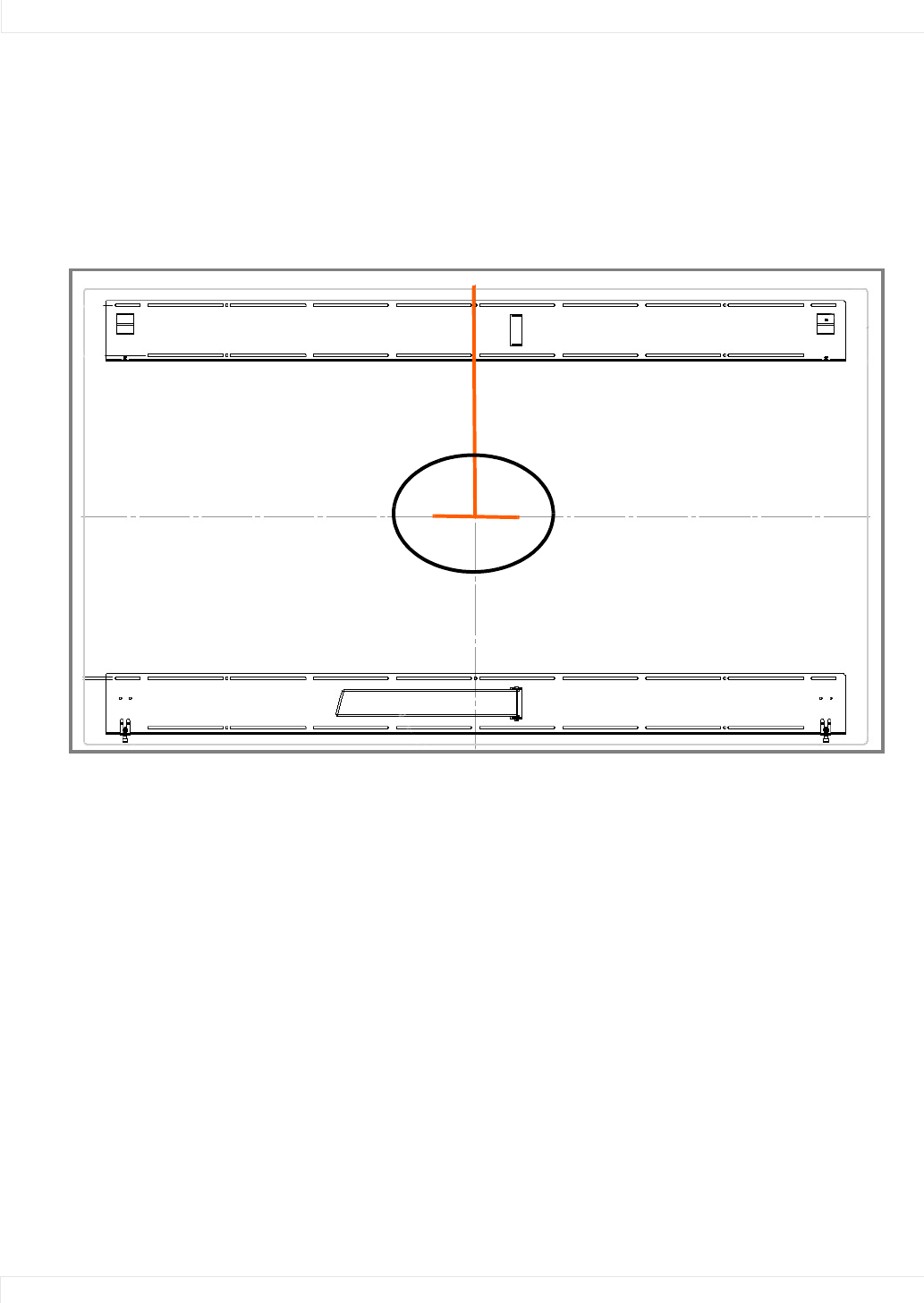

Find the center point of the display on the wall where you intend to install it.
2 Draw a short (about 1”) horizontal line and a vertical line to match the edge of the
display.
