Powering On/Off Planar UltraRes Displays
14 Planar UltraRes User Manual
Planar UltraRes in Standby Mode
If you are unsure about whether or not the display is on but in standby mode, look for
the small Standby LED. If it is off, you will not see the LED. If it is on but in Standby
mode, you will see a blue LED. As the display starts, the LED blinks until it is on. Once
it is on, the LED turns off.

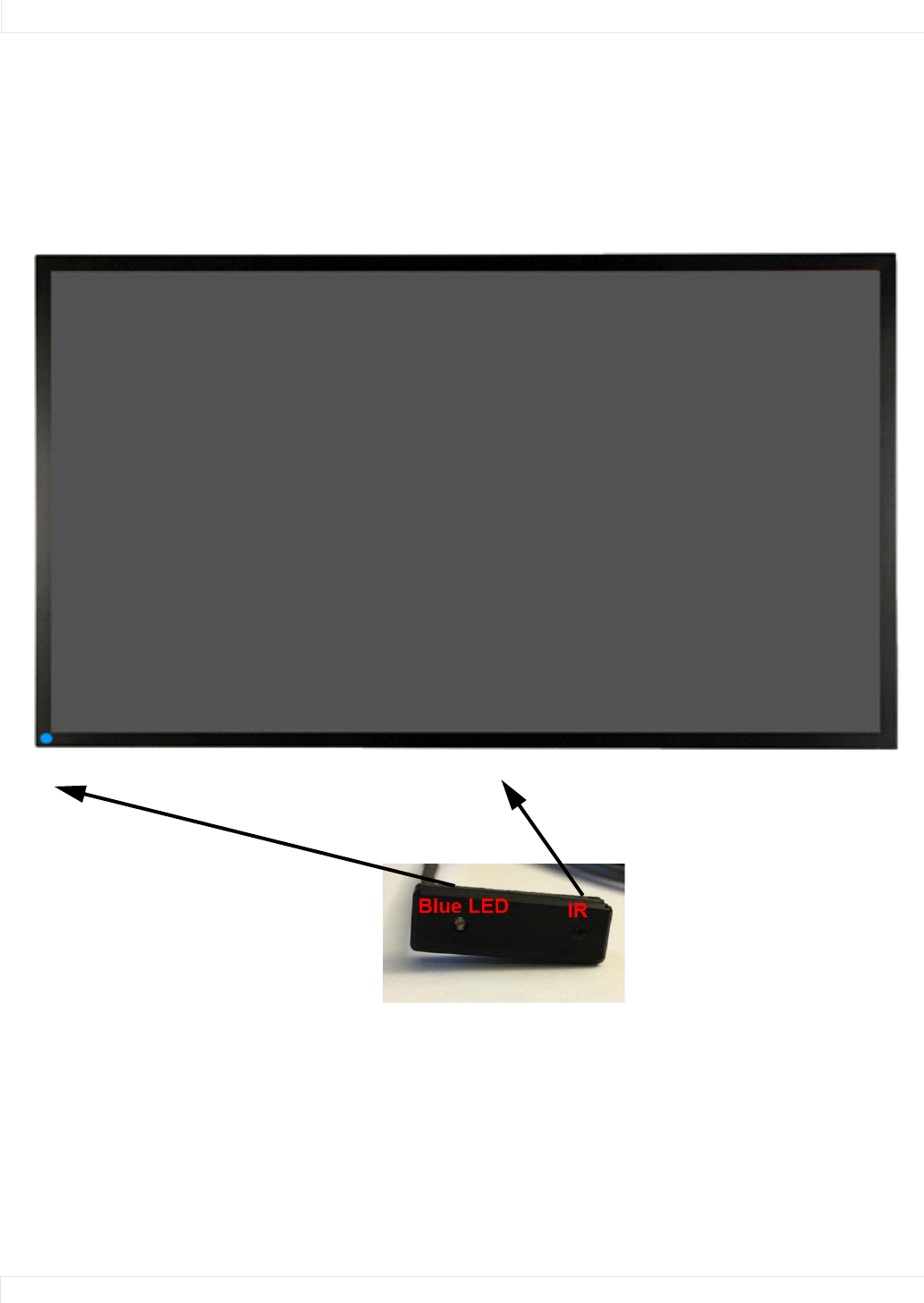

Insert IR sensor cord
into the IR input on the
bottom of the display.
