user manual
Table Of Contents
- Table of Contents
- Introduction
- Installing a Planar UltraRes Display
- LCD Installation
- Installing the UltraRes Control Software
- Using the UltraRes Control Software
- UltraRes Dimensions
- Display Dimensions - Front and Side Views
- Display Dimensions - Rear View
- Landscape Wall Mounts - Front View
- Landscape Wall Mounts - Sides Views
- Portrait Wall Mounts - Front View
- Portrait Wall Mounts - Sides Views
- Optional Pedestal Mount - Front View
- Optional Pedestal Mount - Top and Bottom Views
- Optional Pedestal Mount - Single and Double Sided
- Planar UltraRes Remote Monitoring Software
- RS232 Communication
- RS232 Commands
- Command Format
- Response Format
- Supported UltraRes 4K Commands
- Specifications
- Troubleshooting During Installation
- Accessing Planar’s Technical Support Website
- Regulatory Information
- Index
Basic Concept of Planar UltraRes Display
Planar UltraRes User Manual 7
Basic Concept of Planar UltraRes Display
The Planar UltraRes display uses four separate outputs that feed into the 84” display
as one image. You can use any combination of HDMI, DisplayPort or DVI.
There are two main modes of operation for the UltraRes Display:
• Single 4K inputs @ 24/25/30Hz
• Four headed input (4K @ 60Hz)

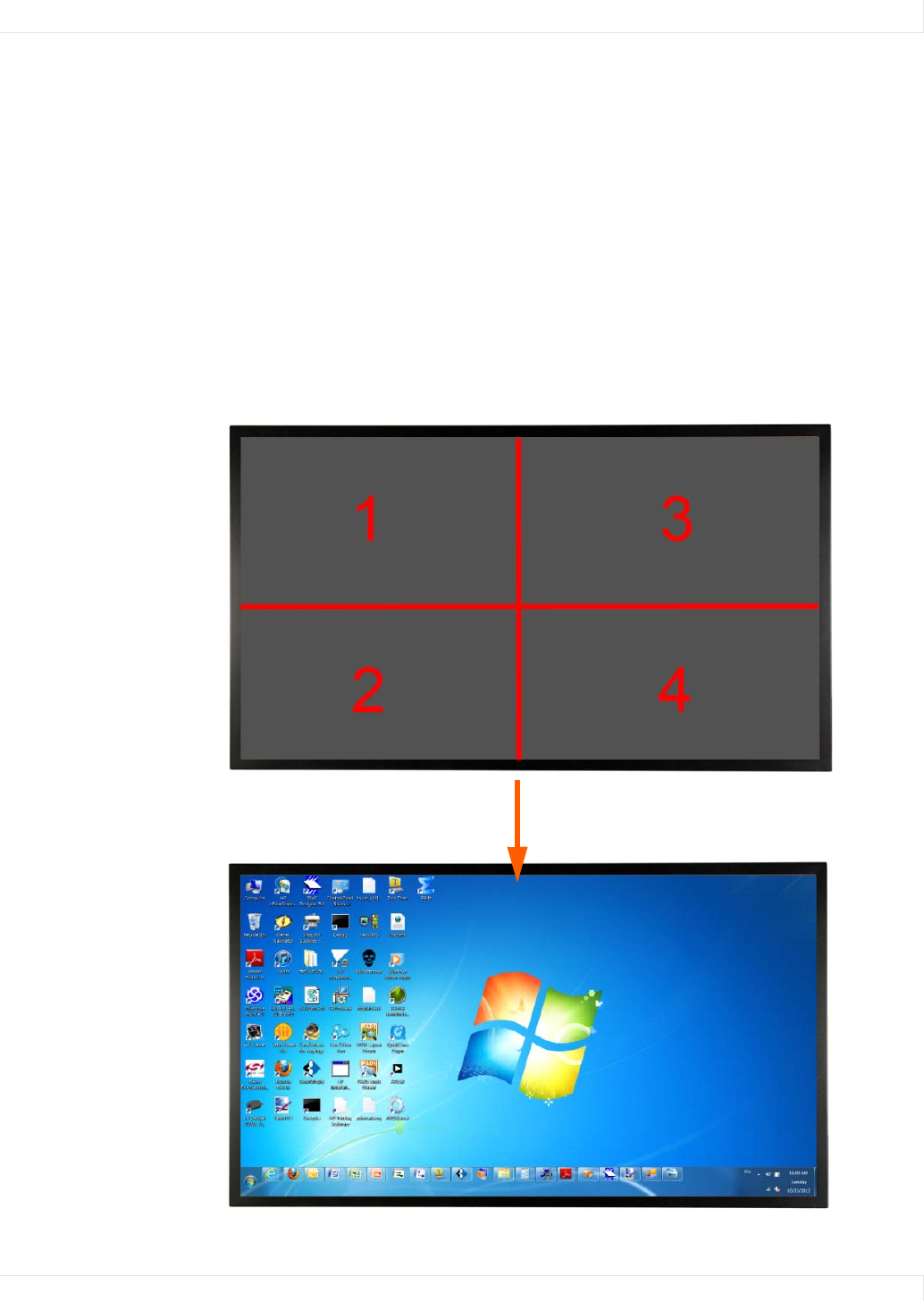

Using four separate outputs provides the ultra HD resolution needed for superior
image quality. In the following example, each number represents an output. All four
“quadrants” (outputs) are fed into the 84” display and turned into one ultra high-
resolution image.
