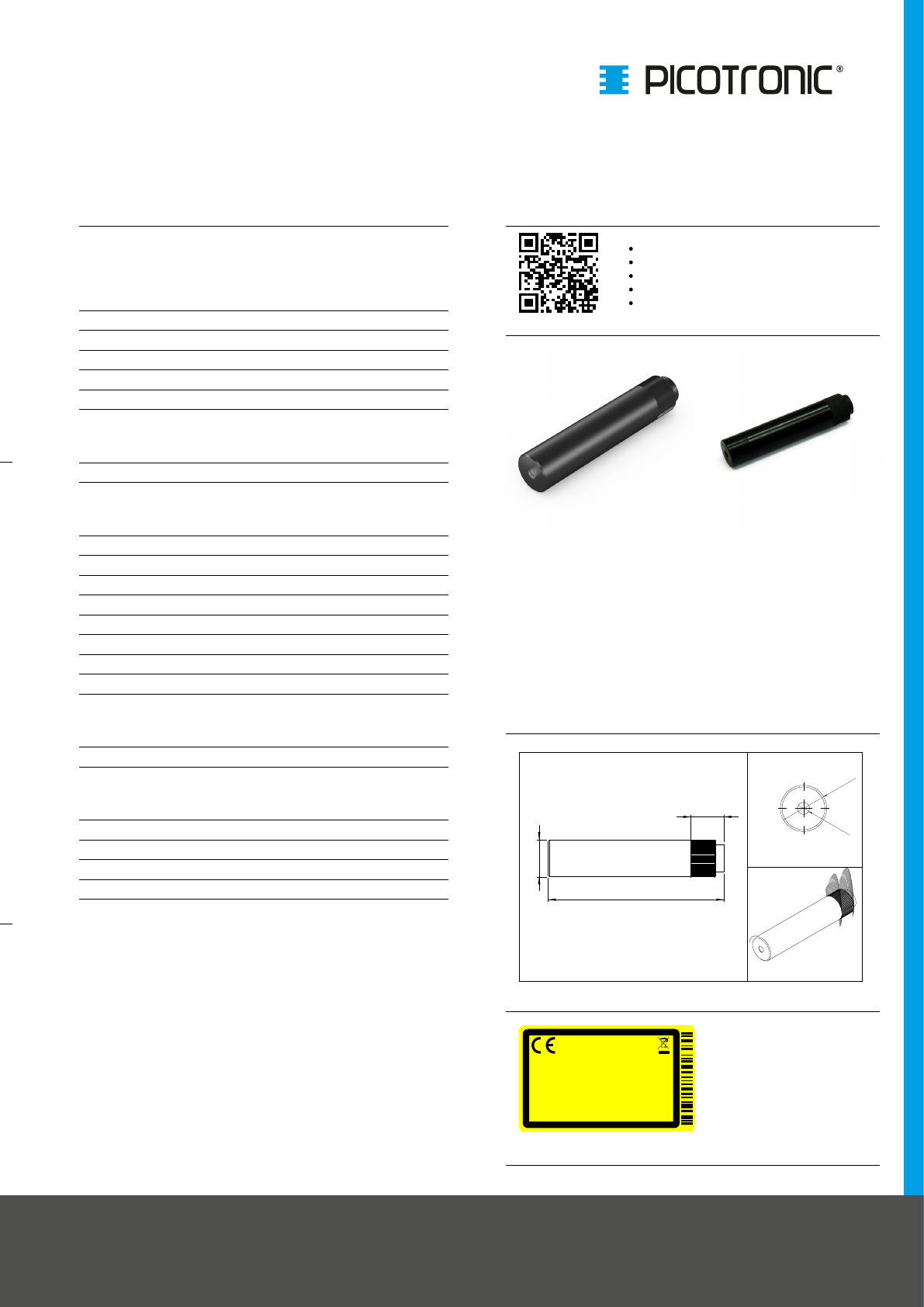

Data Sheet

Picotronic GmbH
Rudolf-Diesel-Str. 2a
56070 Koblenz
Germany
Geschäftsführer
David Heckner
FON [phone]
FAX [phone]
www.picotronic.de
[e-mail]
Sparkasse Koblenz
BLZ 570 501 20, KTO 211 003
BIC / IBAN MALADE51KOB
DE41 5705 0120 0000 2110 03
USt-IdNr. DE814473445
Amtsgericht Koblenz HRB 20026
WEEE-Reg.-Nr. DE85231360
Postbank Stuttgart
BLZ 600 100 70, KTO 770 787 04
BIC / IBAN PBNKDEFF
DE41 6001 0070 0077 0787 04
Pico Group® member
Line laser, red, 650nm, 90°, 5mW
LJ650-5-4.5(14x64)-F250
Order Number: 70121117
Drawing
Ø
13,5
64
12
Ø
13,5
Ø
3,5
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 5 mW
Operating Voltage 4.05 4.5 4.95 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence J - 2.0mrad
Fan Angle 90°
Line Thickness <0.3mm@0.25m
Operating Distance 0.25m
Optics acryl lense
Laser technology Single Mode Diode
Focus fixed (250mm)
Electrical Parameters
Potential of Housing VDD(+)
Battery 3 x LR44
Mechanical Parameters
Size Ø14x64mm
Material aluminium
Output Aperture 9mm
Housing Color black
Weight 23.1g
(*) Over the complete operating temperature range
Operating Voltage 4.5V DC
With battery
Laser Class 1
Uniform line thickness
Fan angle 90°
Features
Safety Label
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LJ650-5-4.5(14x64)-F250
P/N 70121117 Picotronic GmbH
