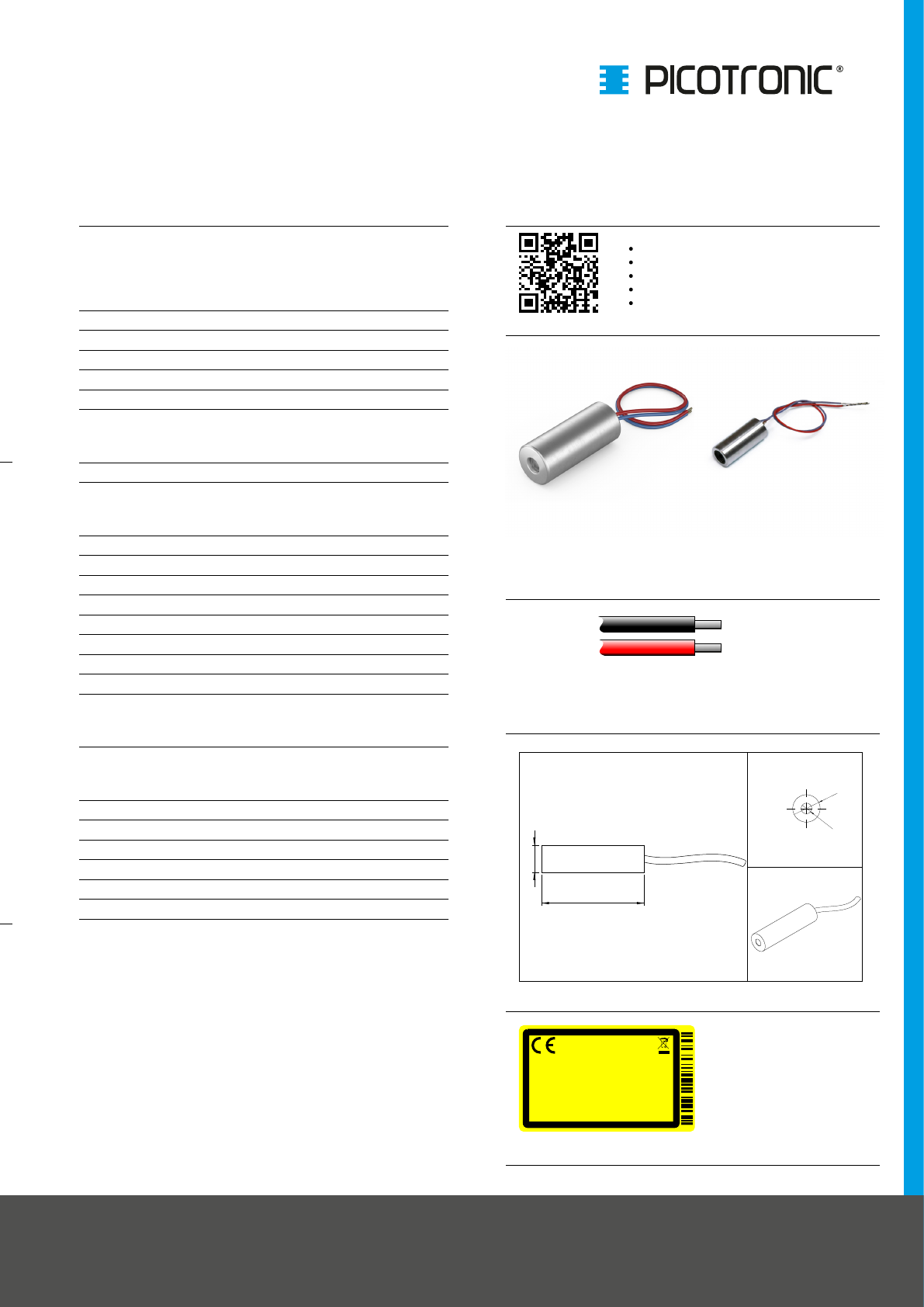

Data Sheet

Picotronic GmbH
Rudolf-Diesel-Str. 2a
56070 Koblenz
Germany
Geschäftsführer
David Heckner
FON [phone]
FAX [phone]
www.picotronic.de
[e-mail]
Sparkasse Koblenz
BLZ 570 501 20, KTO 211 003
BIC / IBAN MALADE51KOB
DE41 5705 0120 0000 2110 03
USt-IdNr. DE814473445
Amtsgericht Koblenz HRB 20026
WEEE-Reg.-Nr. DE85231360
Postbank Stuttgart
BLZ 600 100 70, KTO 770 787 04
BIC / IBAN PBNKDEFF
DE41 6001 0070 0077 0787 04
Pico Group® member
Dot laser, red, 635nm, 1mW
DI635-1-12(12x45)-F100-AP
Order Number: 70119930
Drawing
Ø
12
45
Ø
12
Ø
4,6
Cable Colors
Ground black GND
Positive red 11.7 - 12.3, typ 12V
DC
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 1 mW
Operating Voltage 11.7 12 12.3 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence I - 1.5mrad
Size of Laserdot <0.3mm@0.1m
Operating Distance 0.1m
Optics glass lens AR coated
Laser technology Single Mode Diode
Axial Divergence ±0.1°
Focus fixed (100mm)
Electrical Parameters
Potential of Housing isolated
Mechanical Parameters
Size Ø12x45mm
Material aluminium
Cable length 100mm
Output Aperture 2mm
Housing Color silver
Weight 3.5g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Axial parallel
Glas lenses anti reflex coated
Small package
Operating Voltage 12V DC
Laser Class 2
Features
Safety Label
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 1mW
DI635-1-12(12x45)-F100-AP
P/N 70119930 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
Revision
| 03-FEB-2016
