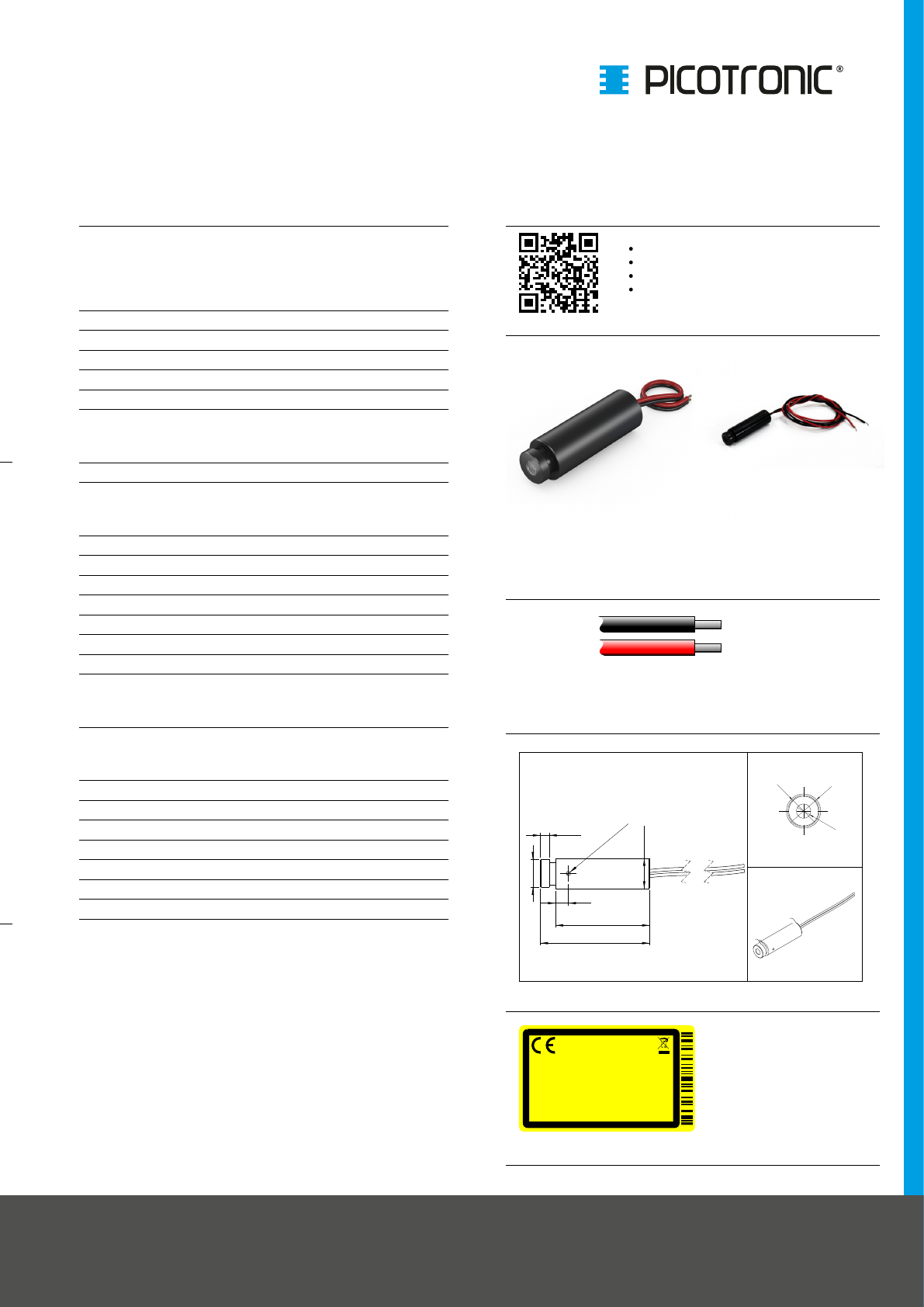

Dot laser, red, 635nm, 0.4mW
DD635-0.4-24(12x45)
Order Number: 70118063
Drawing
Ø
11
Ø
12
43
37
3,5
Ø
1,6
5
Ø
12
Ø
11
Ø
5
Cable Colors
Ground black GND
Positive red 23.6 - 24.4, typ 24V
DC
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 0.4 mW
Operating Voltage 23.6 24 24.4 V DC
Operating Current 2 5 15 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 1
Divergence D - 0.5mrad
Size of Laserdot adjustable
Operating Distance 10m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus adjustable
Electrical Parameters
Potential of Housing isolated
Mechanical Parameters
Size Ø12x45mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 3.5mm
Housing Color black
Weight 17g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Operating Voltage 24V DC
Adjustable focus
Small laser head
Laser Class 1
Features
Safety Label
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 0.4mW
DD635-0.4-24(12x45)
P/N 70118063 Picotronic GmbH
