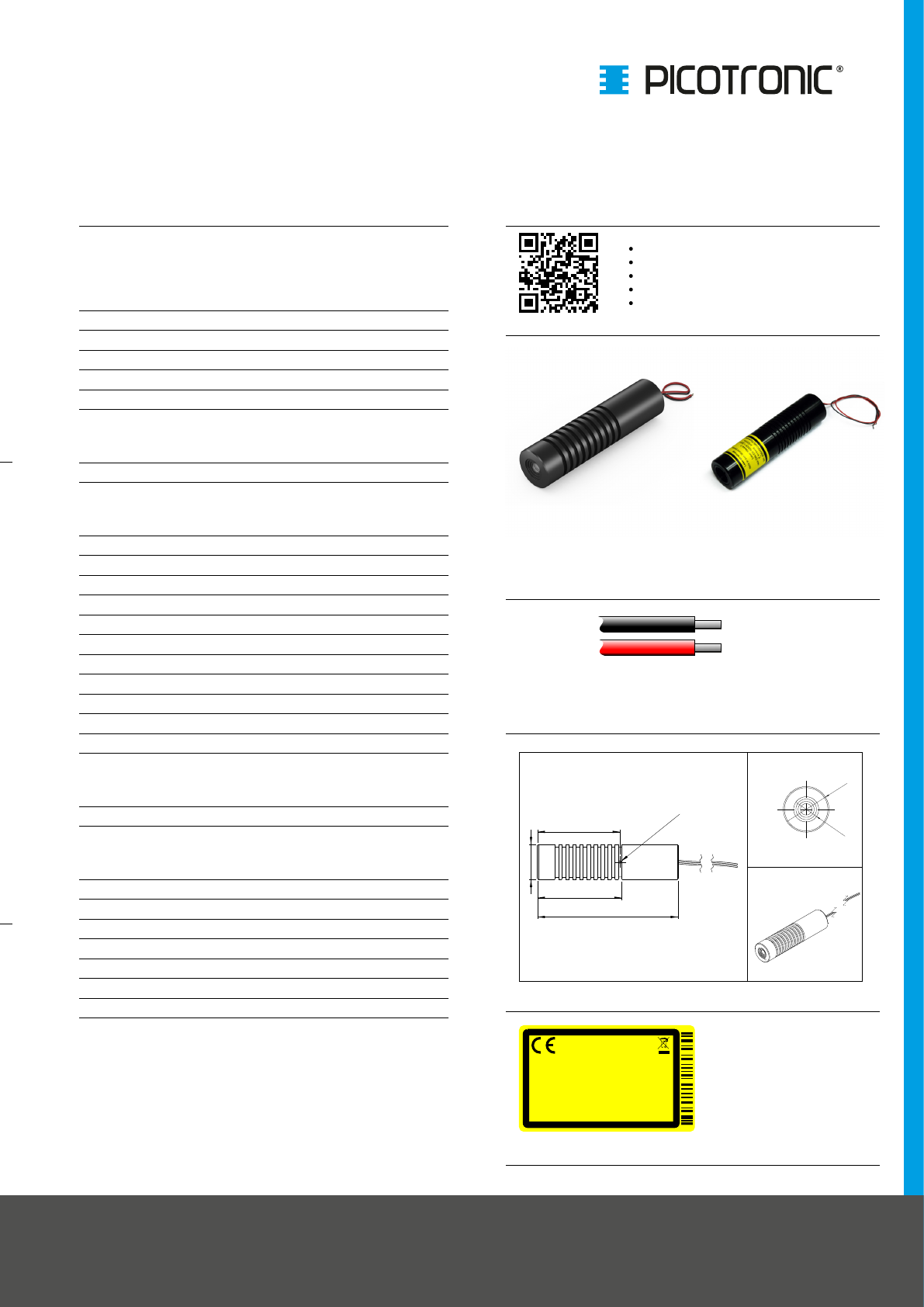

Line laser, green, 532nm, 110°, 10mW
LD532-10-5(20x80)110DEG-C1000
Order Number: 70117110
Drawing
Ø
20
80
47
Ø
1,4
48
Ø
20
Ø
11
Cable Colors
Ground black GND
Positive red 4.5 - 5.5, typ 5V DC
Main Parameters (*) min typ max Unit
Wavelength 532 nm
Optical Output Power 10 mW
Operating Voltage 4.5 5 5.5 V DC
Operating Current 50 150 400 mA
Operating Temperature 15 30 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1M
Divergence D - 0.5mrad
Fan Angle 110°
Line Thickness <1.5mm@3m
Operating Distance 3m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology Solid State (YVO4+KTP)
Stability +/- 20% @ 15-30°C
Focus fixed (3000mm)
Warm up time <15min
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-5
Mechanical Parameters
Size Ø20x80mm
Material aluminium
Cable length 1000mm
Wire type 22AWG, black, 3,6mm
Output Aperture 5mm
Housing Color black
Weight 57g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Operating Voltage 5V DC
Laser Class 1M
Uniform line thickness
Fixed focus
Image processing
Features
Safety Label
Laser Radiation
Do not view directly
with optical instruments
Class 1M Laser Product
according to DIN EN 60825-1:2015-07
λ = 532nm P₀ ≤ 10mW
LD532-10-5(20x80)110DEG-C1000
P/N 70117110 Picotronic GmbH
