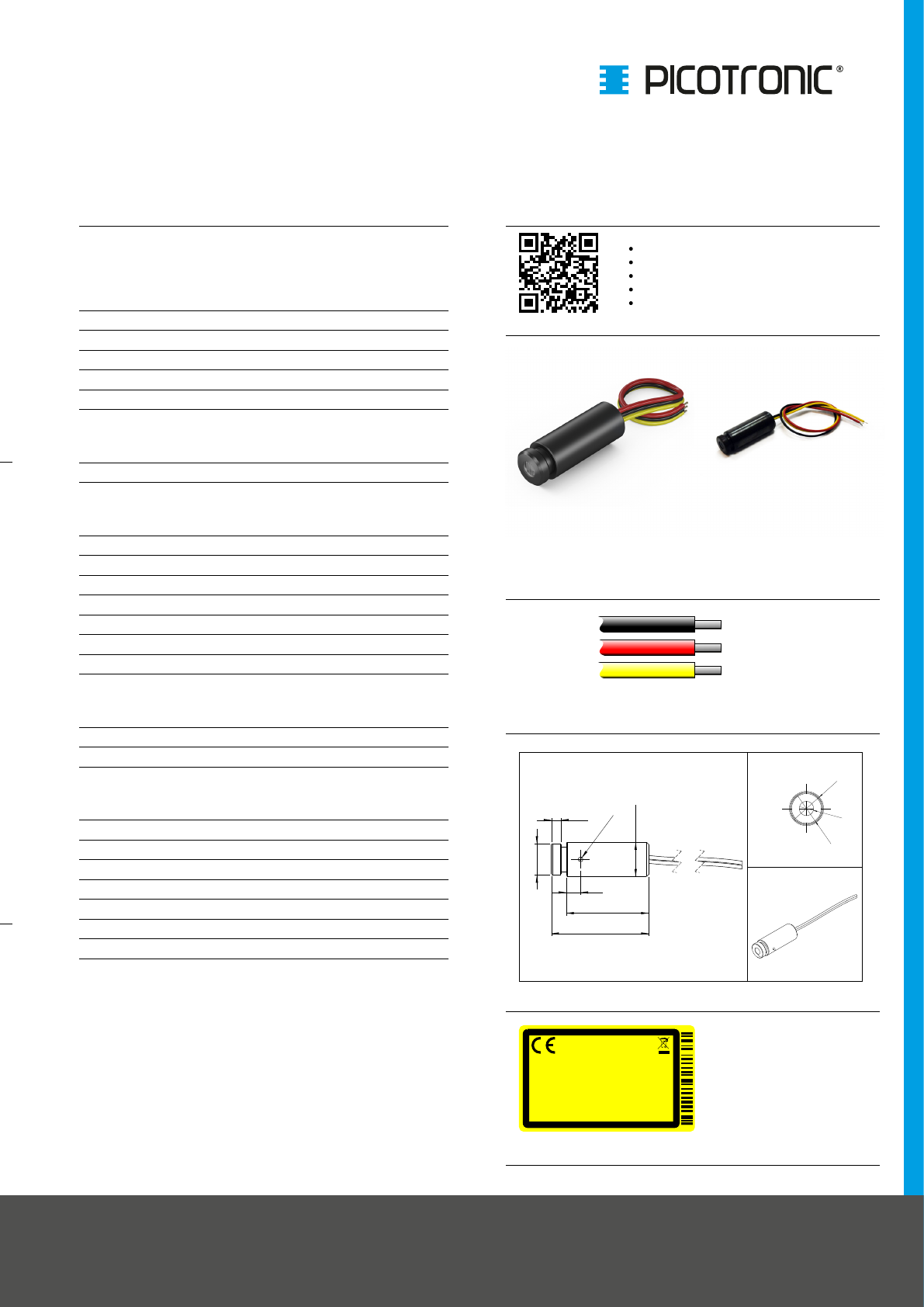

Dot laser, red, 650nm, 1mW
MD650-1-5(12x34)
Order Number: 70104905
Drawing
Ø
11
Ø
12
3,4
34
28,8
5
Ø
1,6
Ø
12
Ø
11
Ø
5
Cable Colors
Ground black GND
Positive red 4.5 - 5.5, typ 5V DC
Modulation yellow 100Kilohertz
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 1 mW
Operating Voltage 4.5 5 5.5 V DC
Operating Current 10 22 40 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence D - 0.5mrad
Size of Laserdot adjustable
Operating Distance 10m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus adjustable
Electrical Parameters
Potential of Housing isolated
Max. Mod. Frequency 100Kilohertz
Power Supply LFNT-5
Mechanical Parameters
Size Ø12x34mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 5mm
Housing Color black
Weight 18g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Adjustable focus
Low power consumption
Compact size
Modulated
Glas lenses anti reflex coated
Features
Safety Label
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
MD650-1-5(12x34)
P/N 70104905 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
Revision
REV 9 | 08-MAR-2018
