Mask limit testing

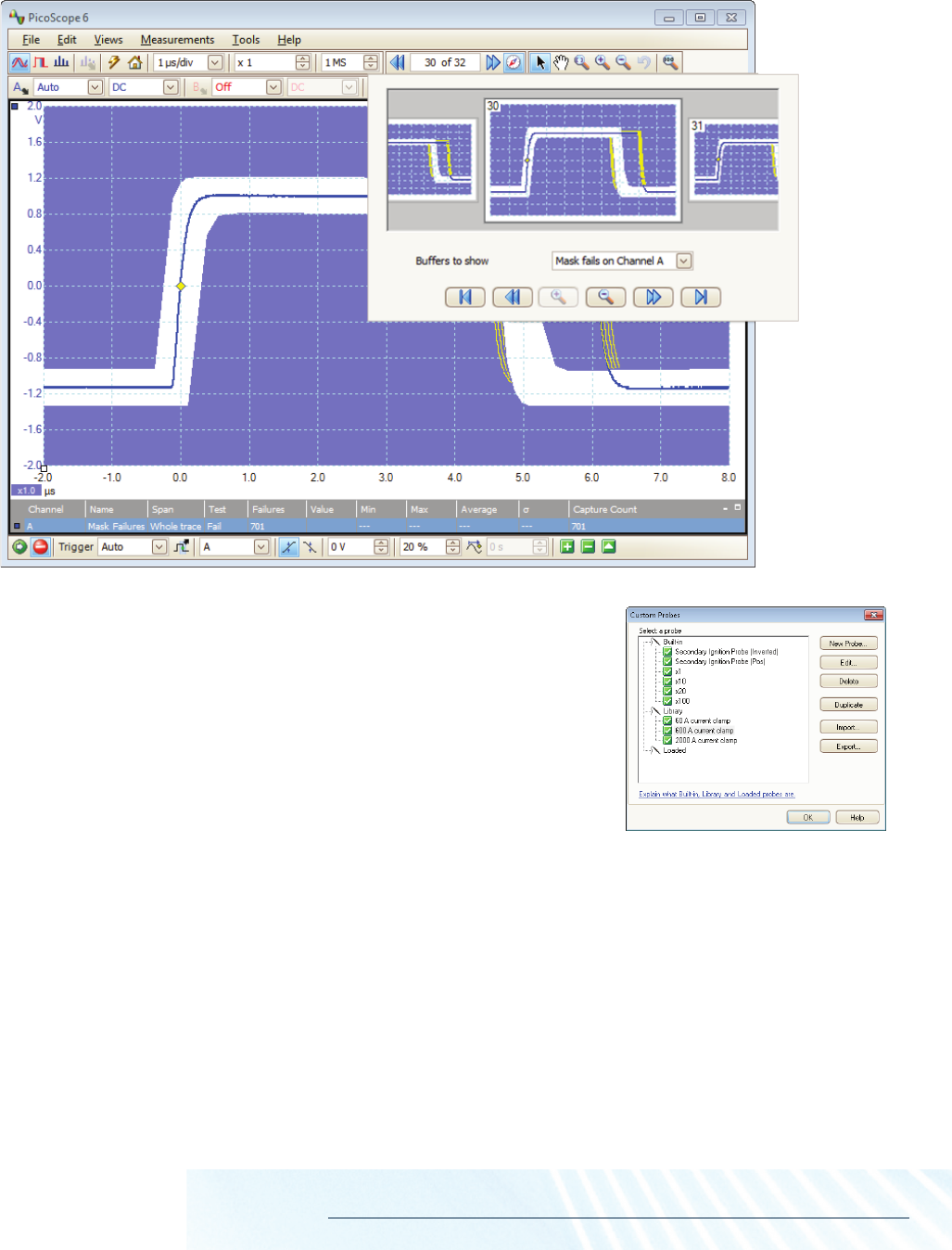

PicoScope allows you to draw a mask around any signal with user-defined tolerances. This has been designed specifically for production and
debugging environments, enabling you to compare signals. Simply capture a known good signal, draw a mask around it, and then attach the
system under test. PicoScope will capture any intermittent glitches and can show a failure count and other statistics in the Measurements
window.
The numerical and graphical mask editors can be used separately or in combination, allowing you to enter accurate mask specifications,
modify existing masks, and import and export masks as files.
High-end features as standard
Buying a PicoScope is not like making a purchase from other oscilloscope companies, where optional extras considerably increase the price.
With our scopes, high-end features such as resolution enhancement, mask limit testing, serial decoding, advanced triggering, automatic
measurements, math channels, XY mode, segmented memory (where available), and a signal generator are all included in the price.
To protect your investment, both the PC software and firmware inside the scope can be updated. Pico Technology have a long history of
providing new features for free through software downloads. We deliver on our promises of future enhancements year after year, unlike
many other companies in the field. Users of our products reward us by becoming lifelong customers and frequently recommending us to
their colleagues.
Custom probe settings
The custom probes menu allows you to correct for gain, attenuation, offsets and nonlinearities
of probes and transducers, or convert your waveform data to different units such as current,
scaled voltage, temperature, pressure, power or dB. Definitions can be saved to disk for later use.
Definitions for standard Pico-supplied oscilloscope probes and current clamps are built in, and you
can also create your own using linear scaling or even an interpolated data table.
