Datasheet

PicoScope 2200A Series
USB connectivity
The USB connection makes printing, copying,
saving, and emailing your data from the field
quick and easy. The high-speed USB interface
allows fast data transfer, while USB powering removes the need to
carry around a bulky external power supply.
Powerful, portable, and versatile
The PicoScope 2200A Series oscilloscopes offer a small, light,
modern alternative to bulky benchtop devices. You can now fit a
200 MHz, 1 GS/s instrument easily in your laptop bag! They are
perfect for engineers on the move, and ideal for a wide range of
applications including design, test, education, service, monitoring,
fault finding, and repair.
A small form factor is not the only benefit of these PC-based scopes.
With our PicoScope 6 software, high-end features such as serial
decoding and mask limit testing are included as standard. New
functionality is regularly delivered through free upgrades, optimized
with the help of feedback from our customers.
Fast sampling
The PicoScope 2200A Series oscilloscopes provide fast real-time
sampling rates up to 1 GS/s, equivalent to a timing resolution of
only 1 ns. For repetitive signals, equivalent-time sampling (ETS)
mode can boost the maximum effective sampling rate up to
10 GS/s, allowing even finer resolution down to 100 ps. All scopes
support pre-trigger and post-trigger capture.
Arbitrary waveform and function generators

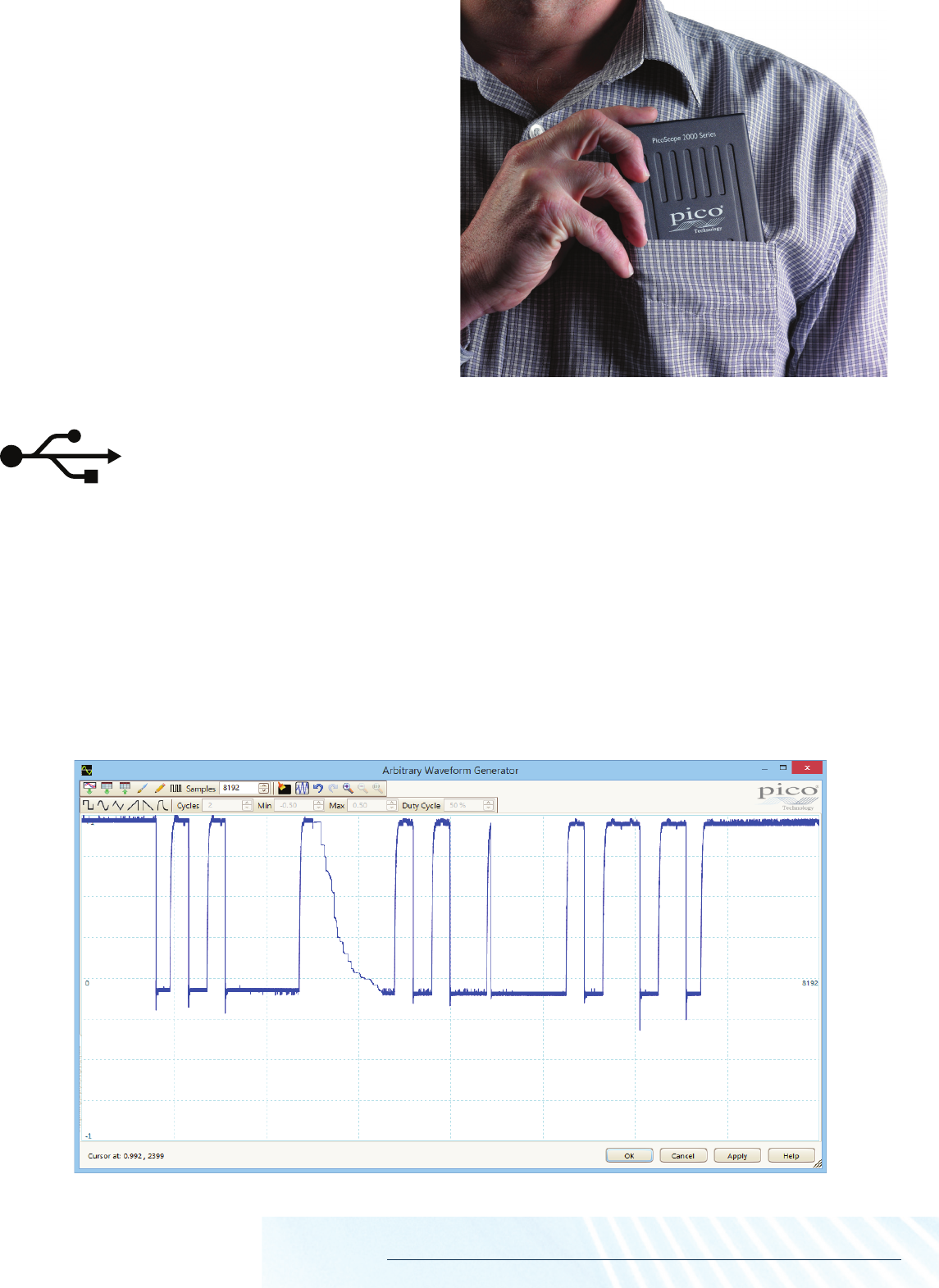

All PicoScope 2200A Series oscilloscopes have a built-in arbitrary waveform generator (AWG). Waveforms can be imported from data files
or created and modified using the built-in graphical AWG editor.
A function generator is also included, with sine, square, triangle, DC level and many more standard waveforms. As well as level, offset and
frequency controls, advanced options allow you to sweep over a range of frequencies. Combined with the spectrum peak hold option, this
creates a powerful tool for testing amplifier and filter responses.
