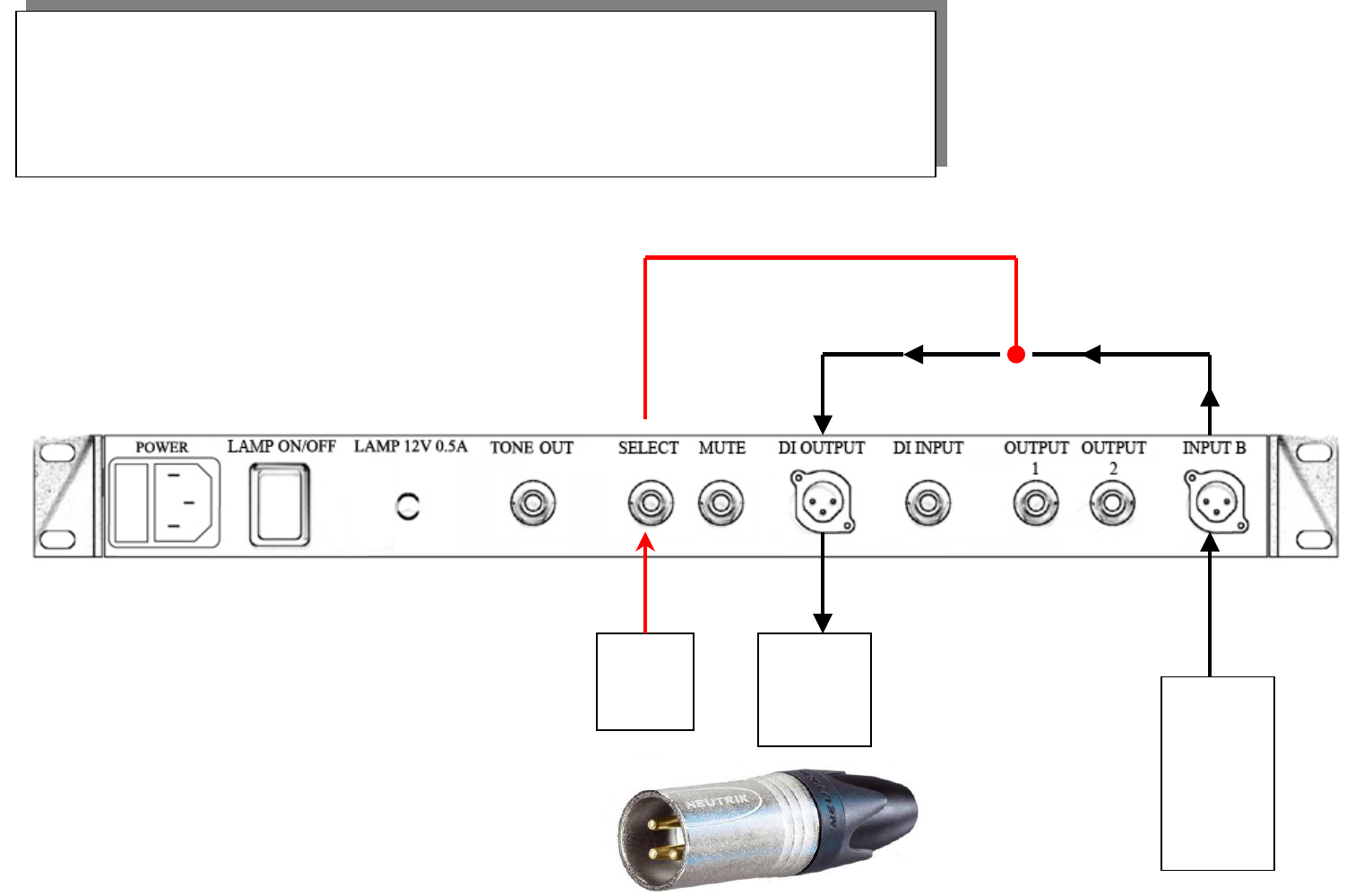

Microphone/Balanced Instrument - StroboRack
TM
– PA (Example: Studio)
Signal
From
Rear
Panel
Input
Jack B
XLR*
To PA
Console
XLR
TRS
Mute
Switch
Notes:
Input Signal: Input B only Balanced XLR*
Output Signal: Balanced
DI circuitry is disabled automatically as the signal is already balanced.
Footswitch or mute button mutes balanced output for silent tuning.
*Input: Balanced line cable with male XLR plug
