15" Signature Series Operation / Installation Manual
Wine Reserve
The single door unit comes standard with six full extension black vinyl
coated wine racks capable of storing 24 total wine bottles. Shelves are
removable and adjustable to accommodate oversized (magnum) bottles.
An additional fixed storage rack is nestled into the lower step for storage
of an additional 5 wine bottles.
Beverage Center
The single door unit comes standard with two full extension black vinyl
coated wine racks and one industry exclusive full extension pullout shelf
allowing for storage of both wine and beverages. Shelving positions are
adjustable.
Adjusting Full Extension Shelving
1. Pull the shelf out to its farthest position. Locate the tabs in the mid-
dle of both extenders (Figure 4). Press tabs and pull shelf out.
2. Reposition each bracket separately. Grasp the middle of the bracket,
pull the front end up and out, then forward to remove (Figure 5).
3. Place bracket at the desired position. Push the rear hook into the rear
key slot. Set front of bracket on the wall hook.
4. Repeat for other bracket(s).
5. Push extenders completely into the unit. Align the shelf grooves with
the extenders and slide completely into the unit.
DOOR OPTIONS
Perlick residential units offer a variety of door panel design alternatives;
solid stainless steel, solid wood overlay, stainless steel glass and wood
overlay glass.
Solid stainless steel and stainless steel glass doors are shipped from the
factory with decorative stainless steel panels and handles in place on the
appliance.
Solid wood overlay and glass wood overlay doors are designed to accept
a decorative front panel to match surrounding cabinetry and door han-
dles. The panel and door handles are supplied by the customer.
All Perlick units accept any of the above door configurations and are fully
interchangeable.
IIMMPPOORRTTAANNTT::
Glass with stainless trim and glass with wood trim may
sweat in conditions with relative humidity over 75%.
WOOD OVERLAY INSTALLATION
Before beginning installation, check all components for proper fit and fin-
ish.
WARNING
• All overlay doors required a trim panel at least 3/4" thick.
• The solid wood overlay panel should not weigh more than
20 pounds.
• The glass wood overlay panel should not weigh more than
10 pounds.
The following instructions cover installing a solid wood overlay or glass
wood overlay panel and handle to a door or drawer.
IIMMPPOORRTTAANNTT::
Contact the factory for full size wood overlay panel layouts.
Refer to Figure 7 for solid wood overlay panel.
Refer to Figure 8 for glass wood overlay panel.
Refer to Figure 9 for drawer wood overlay panel
Door Lock Installation (optional)
When installing to wood overlay, perform lock installation before mount-
ing wood overlay to door.
1. See Figure 6. Attach mounting bracket to wood overlay.
2. Insert lock body and attach with nut.
Press tabs and pull shelf out

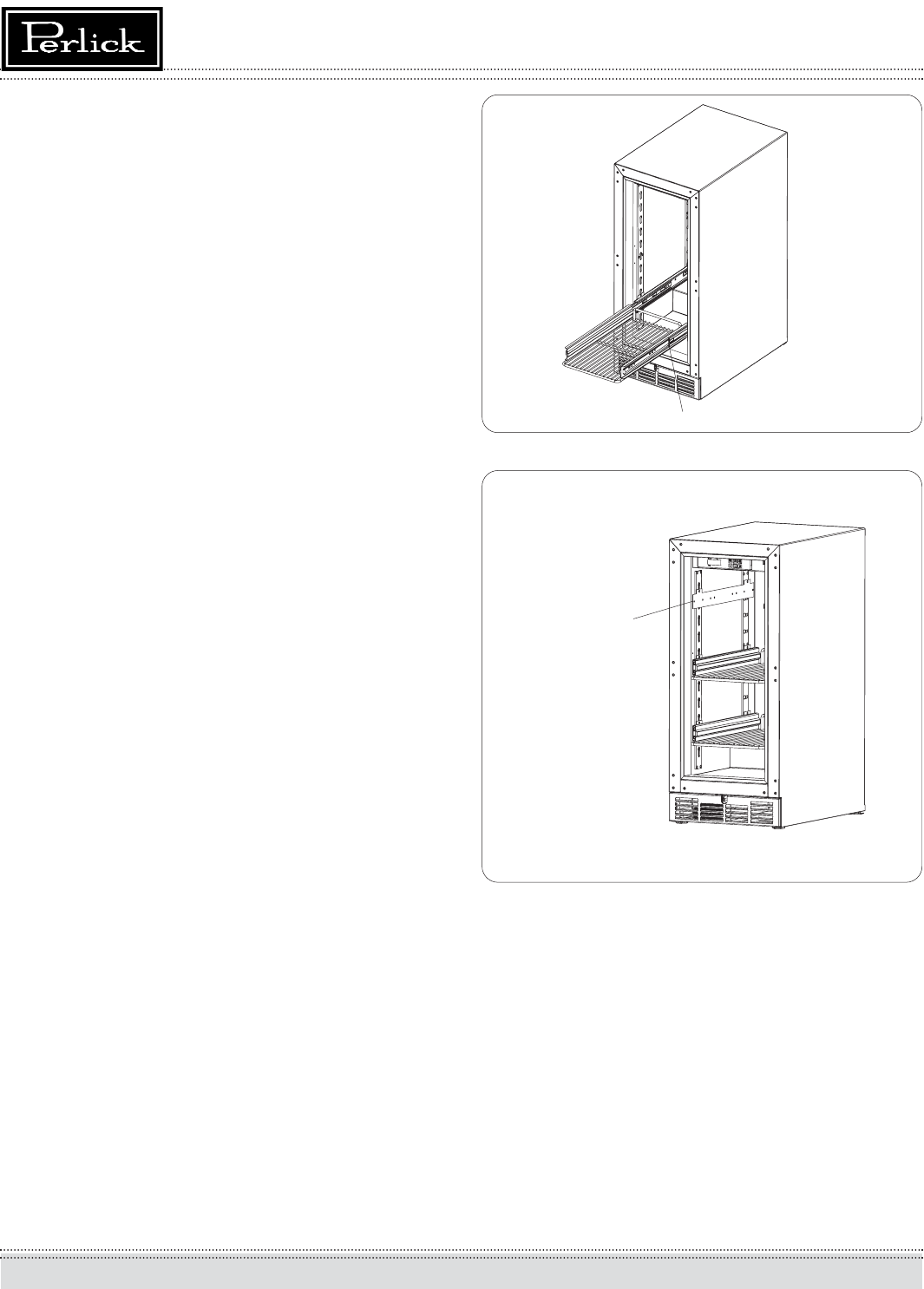

Figure 4. Sliding Shelf Extender Tabs
To remove brackets,
remove shelf, lift front
of bracket to disengage
the front key slot, and
pull forward to disengage
the rear key slot.
Figure 5. Sliding Shelf Mounting Brackets
