15" Signature Series Operation / Installation Manual

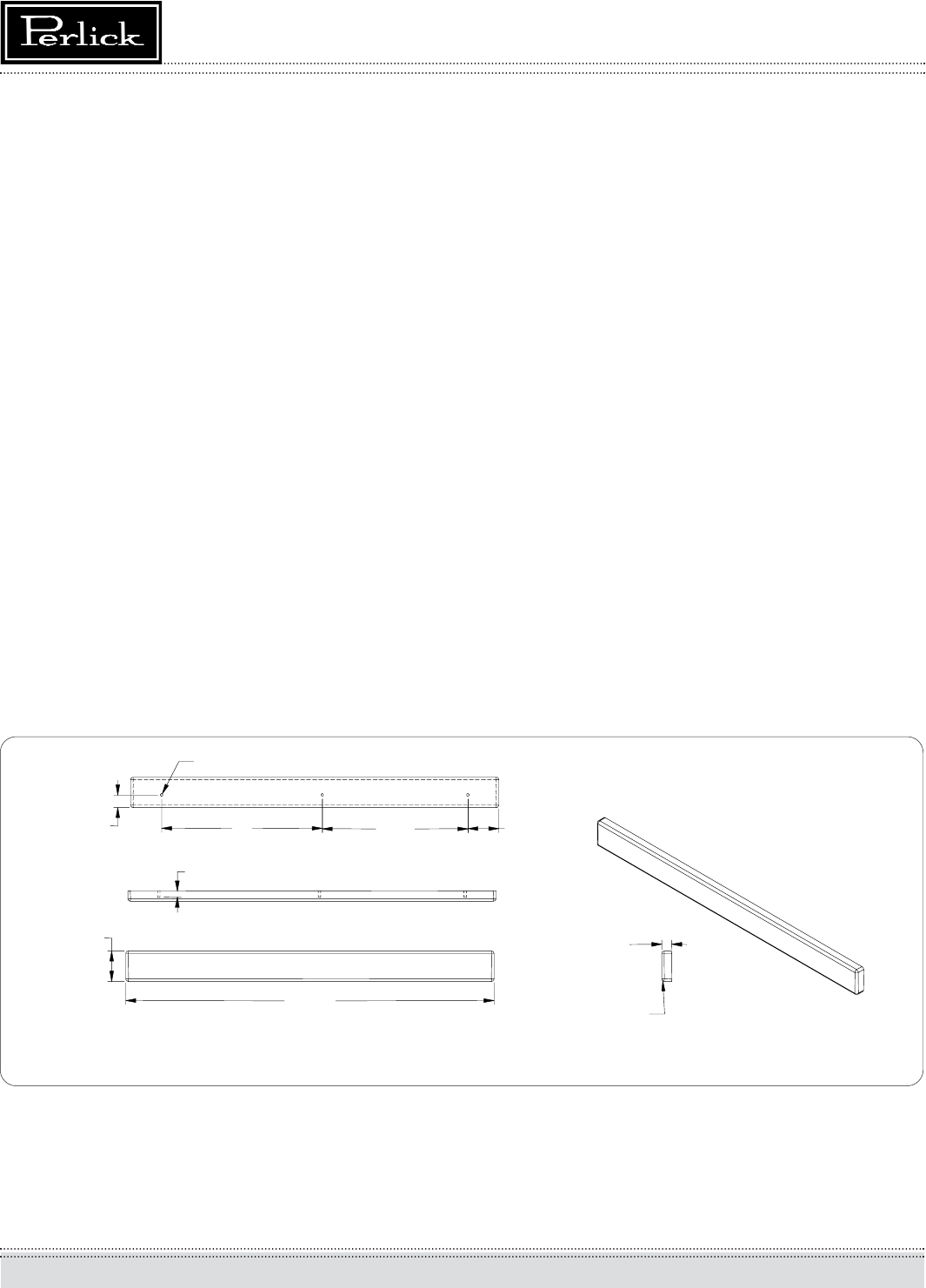

Figure 10. Wooden Wine Rack Trim
WOODEN WINE RACK TRIM FINISHING
All wine racks come with an unfinished solid hardwood face, which can
be removed and replaced with other wood to match the surrounding cab-
inetry. See Figure 10.
The included unfinished faces can be finished and sealed. In many cases,
stains and/or finishes have odors that may be objectionable in an
enclosed area. To remove the front wood face from the wine shelf, simply
pull out the wine shelf and remove the fasteners. Finish as desired and re-
install with original fasteners.
OPERATION
General
The unit is equipped with a state-of-the-art refrigeration system. The vari-
able speed compressor automatically changes speeds based on system
conditions and load. The cabinet is equipped with an adjustable digital
temperature controller and LED display.
The unit is a frost-free model. The evaporator coil automatically defrosts
on demand at predetermined intervals.
Interior Light
The unit is equipped with an interior light that illuminates when the door
is opened. A manual switch is located next to light for displaying the
product through a glass door. Always ensure the manual switch is in the
off position before closing a solid wood or stainless steel door. If manual
switch is left on for an extended period of time, it may increase the cabi-
net temperature, especially at the top and cause the refrigeration system
to run longer.
1
/8” x 0.312” deep
5
/8”
5
/16”
7
1
/4”
8”
1
17
/32”
1
1
/2”
18
5
/16”
1
/16” to
1
/8”
radius all
outside edges
1
/2”
Loading Product
IIMMPPOORRTTAANNTT::
Before storing perishables, allow unit to run for a minimum
of 24 hours to allow temperature stabilization after start-up.
When loading items into unit, do not block internal louvers and fan guard
openings or performance will be decreased.
Temperature Control Panel
The controller is located on the top front face of the cabinet and is
equipped with a tinted see-through lens which opens by pulling out on
the bottom of the lens and lifting up.
CAUTION
Always ensure lens cover is closed before closing the door to
avoid damage to the controller or lens.
The display will read OFF when unit is off, and will show the temperature
when unit is on.
IIMMPPOORRTTAANNTT::
The LED display reads actual air temperature, not product
temperature. The following swings in temperature do not affect the actual
product temperature:
Refrigerator & Beverage Center: 6°F swing
Wine Reserve: 4°F swing
The control comes preset for the following product temperatures:
Refrigerator: 33°F
Beverage Center: 44°F
Wine Reserve: 55°F
