Use And Care Manual

Page 14

ASSEMBLY

CAUTION: Make sure there is enough clearance to

allow the table to rotate around the column. The collar must

sit loosely over the rack and not angled on the column. To

avoid column or collar damage, only tighten the set screw

enough to keep collar in place.

FIG. 3a

FIG. 3b

FIG. 3c

spring washer 8 (E) in each column support hole and tighten with the wrench.

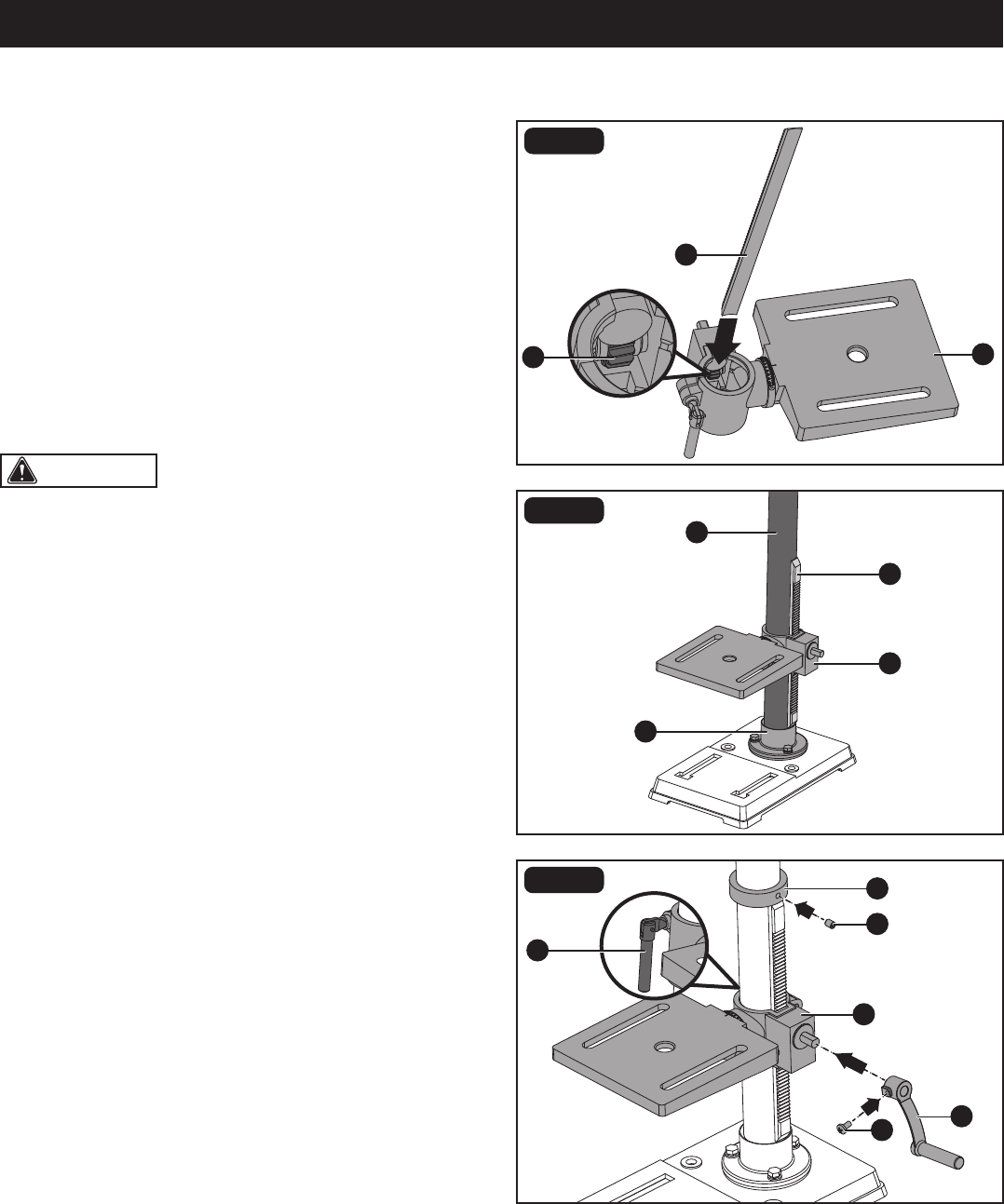

TABLE TO COLUMN (Fig. 3a-3c)

• Insert the rack (A) into the geared groove of the table

support (B). Make sure the worm shaft (C) on the inside

of table support is engaged with the teeth of the rack. The

table support should sit at the center of the rack.

• Slide the rack and table support assembly (A, B) down

together onto the column (D). Insert the bottom edge of

the rack into the lip of the column support (E). HOLD IN

THIS POSITION until the next step is completed.

• Place the rack collar (F) bevel side down over the rack.

Tighten the set screw (G) with 3mm hex key to hold the

rack in position.

• Insert the table support lock handle (H) onto the shaft on

the side of the table support (B). Make sure the set screw

(I) is aligned on the at of the shaft and as close to the

table support as possible. Tighten the set screw (I).

• Position the table in the same direction as the base, and

tighten the column lock handle (J).
