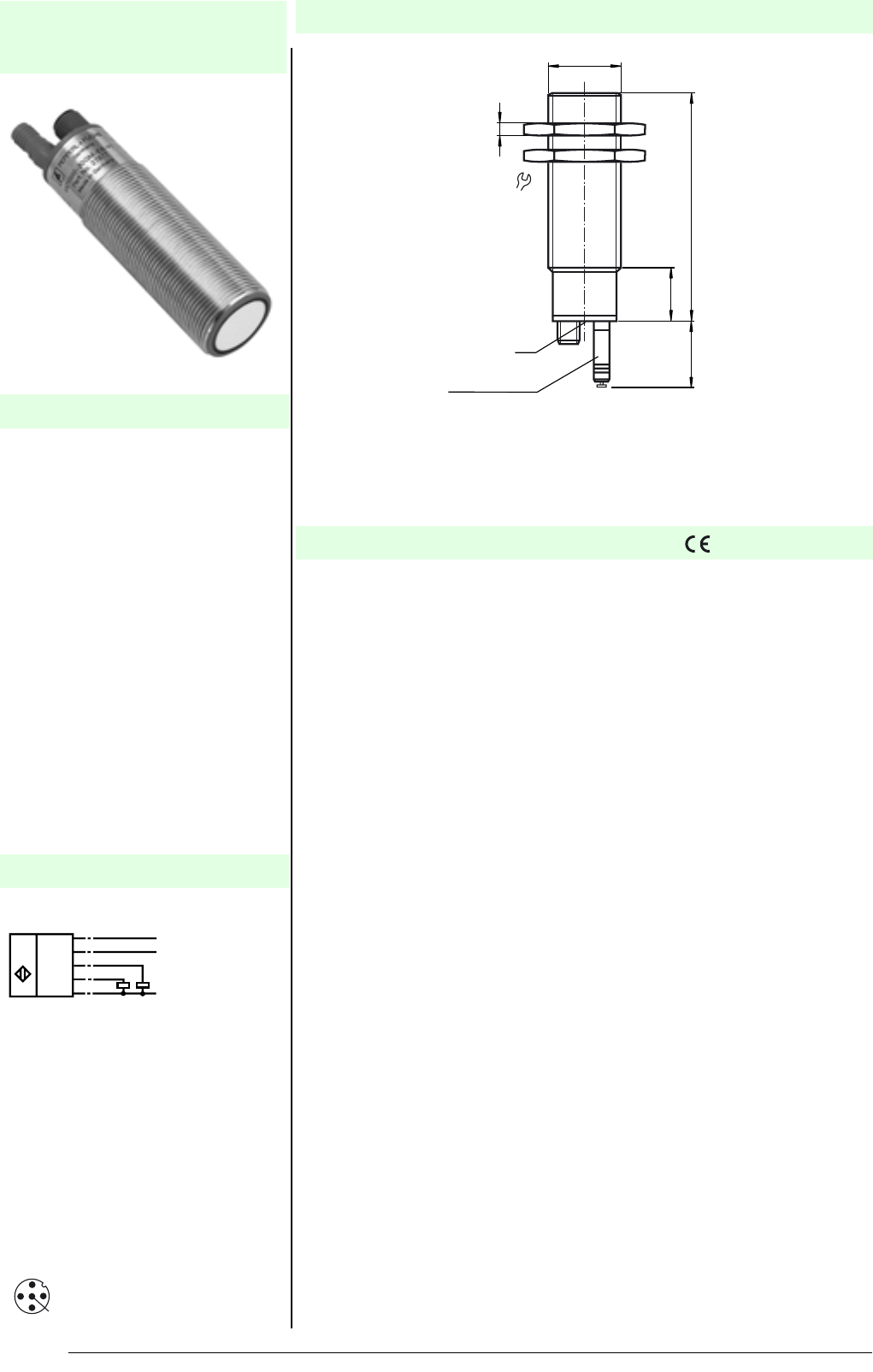

Datasheet

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany
Pepperl+Fuchs Group • Tel.: Germany [phone] • USA [phone] • Singapore [phone] • Internet http://www.pepperl-fuchs.com
1
Technische DatenTechnical data
Features
Electrical connection
Dimensions
General specifications
Sensing range 80 ... 2000 mm
Adjustment range 120 ... 2000 mm
Unusable area 0 ... 80 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 180 kHz
Response delay 65 ms minimum
195 ms factory setting
Indicators/operating means
LED green permanent: Power-on
flashing: Standby mode or TEACH-IN function object detected
LED yellow 1 permanent: switching state switch output 1
flashing: TEACH-IN function
LED yellow 2 permanent: switching state switch output 2
flashing: TEACH-IN function
LED red permanent: temperature/TEACH-IN plug not connected
flashing: fault or TEACH-IN function object not detected
Temperature/TEACH-IN connec-
tor
temperature compensation , TEACH-IN of the switch points , output function set-
ting
Electrical specifications
Operating voltage 10 ... 30 V DC , ripple 10 %
SS
No-load supply current I
0
≤ 50 mA
Interface
Interface type RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit
Input/Output
Synchronisation bi-directional
0 level -U
B
...+1 V
1 level: +4 V...+U
B
input impedance: > 12 KOhm
synchronisation pulse: ≥ 100 µs, synchronisation interpulse period: ≥ 2 ms
Synchronisation frequency
Common mode operation ≤ 30 Hz
Multiplex operation ≤ 30/n Hz, n = number of sensors
Output
Output type 2 switch outputs pnp, NO/NC, parameterisable
Repeat accuracy ≤ 0,1 % of full-scale value
Rated operational current I
e
200 mA , short-circuit/overload protected
Voltage drop U
d
≤ 2,5 V
Switching frequency f ≤ 2,5 Hz
Range hysteresis H 1 % of the adjusted operating range (default settings), programmable
Temperature influence ≤ 2 % from full-scale value (with temperature compensation)
≤ 0.2 %/K (without temperature compensation)
Standard conformity
Standards EN 60947-5-2
Ambient conditions
Ambient temperature -25 ... 70 °C (248 ... 343 K)
Storage temperature -40 ... 85 °C (233 ... 358 K)
Mechanical specifications
Protection degree IP65
Connection connector V15 (M12 x 1), 5 pin
Material
Housing stainless steel 1.4303
plastic parts PBT
Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 140 g
Ultrasonic sensor
UC2000-30GM-E6R2-V15
2004-11-04 102159_ENG.xml
+ U
B
- U
B
Standard symbol/Connection:
(version E6, pnp)
Switch output 1
Switch output 2
Sync.
Core colours in accordance with EN 60947-5-2.
1
2
4
3
5
(BN)
(WH)
(BK)
(BU)
(GY)
+ U
B
- U
B
U
Connector V15
2
3
1
4
5
• Parameterisation interface for the appli-
cation-specific adjustment of the sensor
setting via the service program ULTRA
2001
• 2 switch outputs freely adjustable
• Hysteresis mode selectable
• Window function can be selected
• Synchronisation options
• Adjustable acoustic power and sensiti-
vity
• Temperature compensation
Temperature probe
Coded plug
M30x1.5
22
94
5
27.5
36
LED
