Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com

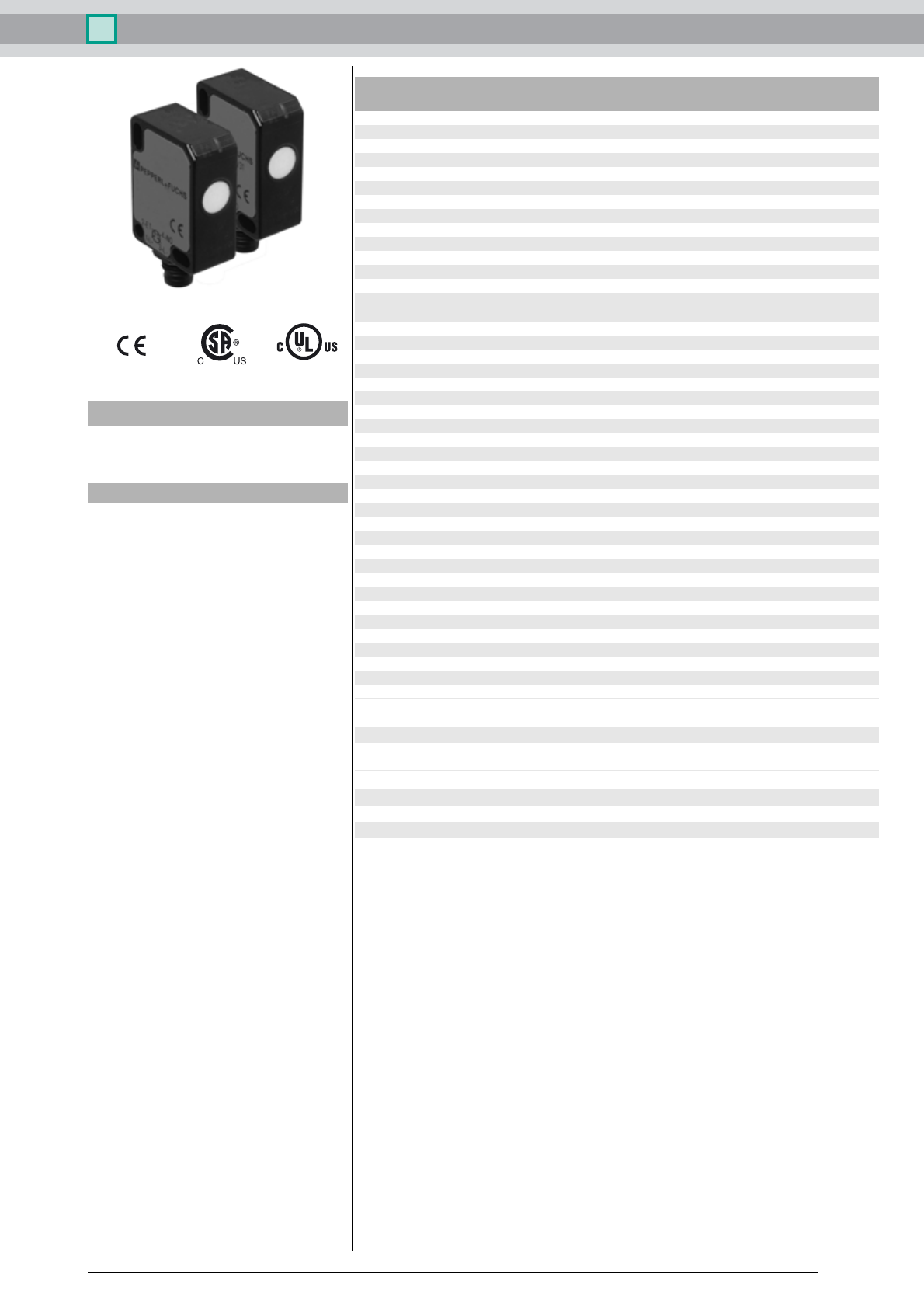

Through-beam ultrasonic barrier UBE800-F77-SE3-V31

Release date: 2012-12-20 12:23 Date of issue: 2012-12-20 233249_eng.xml

Technical data

General specifications

Sensing range 0 ... 800 mm emitter/receiver spacing

Standard target plate see table

Transducer frequency approx. 300 kHz

Nominal ratings

Time delay before availability t

≤ 150 ms

Limit data

Permissible cable length max. 300 m

Indicators/operating means

LED green Power on ( emitter )

LED yellow switching state ( receiver )

Electrical specifications

Rated operational voltage U

24 V DC

Operating voltage U

20 ... 30 V DC , ripple 10 %

; 12 ... 20 V DC reduced

sensitivity by 80 %

No-load supply current I

≤ 20 mA

Input

Input type 1 program input (receiver)

Level low level : 0 ... 0.7 V ; high level : > 14 V

Input impedance 16 kΩ

Pulse length ≥ 3 s

Output

Output type 1 switch output PNP , NC contact

Rated operational current I

200 mA , short-circuit/overload protected

Voltage drop U

≤ 2 V

Switch-on delay t

≤ 5 ms

Switching frequency f 100 Hz

Off-state current I

≤ 0.01 mA

Ambient conditions

Ambient temperature -25 ... 70 °C (-13 ... 158 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

Shock resistance 30 g , 11 ms period

Vibration resistance 10 ... 55 Hz , Amplitude ± 1 mm

Mechanical specifications

Connection type M8 x 1 connector , 4-pin

Protection degree IP67

Material

Housing Polycarbonate

Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam

Installation position any position

Mass Per 10 g

Tightening torque, fastening screws max. 0.2 Nm

Compliance with standards and

directives

Standard conformity

Standards EN 60947-5-2:2007

IEC 60947-5-2:2007

Approvals and certificates

UL approval cULus Listed, General Purpose

CSA approval cCSAus Listed, General Purpose

Model Number

UBE800-F77-SE3-V31

Through-beam ultrasonic barrier

Features

• Miniature design

• Highly visible LEDs for Power ON

and switching state

• High switching frequency

• Program input

• Protection degree IP67

Summary of content (3 pages)

PAGE 1
Through-beam ultrasonic barrier UBE800-F77-SE3-V31 Technical data General specifications Sensing range Standard target plate Transducer frequency Nominal ratings Time delay before availability tv Limit data Permissible cable length Indicators/operating means LED green LED yellow Electrical specifications Rated operational voltage Ue Operating voltage UB Model Number UBE800-F77-SE3-V31 Through-beam ultrasonic barrier Features • Miniature design • Highly visible LEDs for Power ON and switching state • Hig
PAGE 2
Through-beam ultrasonic barrier UBE800-F77-SE3-V31 Dimensions 23 12 25 3.2 9 3 18 ø3.2 31 22 3.2 M8 x 1 3 14 17 Electrical Connection Receiver: 1 +UB ET (Sensitivity) 2 4 Switching output 3 -UB Emitter: 1 +UB n.c. 2 4 n.c. 3 -UB 4 3 Release date: 2012-12-20 12:23 2 1 Date of issue: 2012-12-20 233249_eng.xml Pinout 2 Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany Pepperl+Fuchs Group • Tel.
PAGE 3
Through-beam ultrasonic barrier UBE800-F77-SE3-V31 Wire colors in accordance with EN 60947-5-2 1 2 3 4 BN WH BU BK (brown) (white) (blue) (black) Accessories OMH-ML7-01 Mounting bracket V31-GM-2M-PVC M8, 4-pin socket, PVC cable V31-WM-2M-PVC M8, 4-pin socket, PVC cable Description of Sensor Function An ultrasonic thru-beam sensor always consists of an ultrasonic emitter and receiver.
