Inductive positioning system PMI210-F110-IU-V1
3
Release date: 2012-05-14 13:27 Date of issue: 2016-05-03 191142_eng.xml
Germany: [phone]Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: [phone] Singapore: [phone]
www.pepperl-fuchs.com [e-mail] [e-mail]
[e-mail]
When the attenuating element leaves the measurement range (figures below):
- the last valid value is maintained at the voltage output until the attenuating element re-enters the valid range.
- the last valid value is maintained at the current output for 0.5 seconds. Afterwards, the output changes to a fault current of 3.6 mA until the attenuating element
re-enters the valid range.

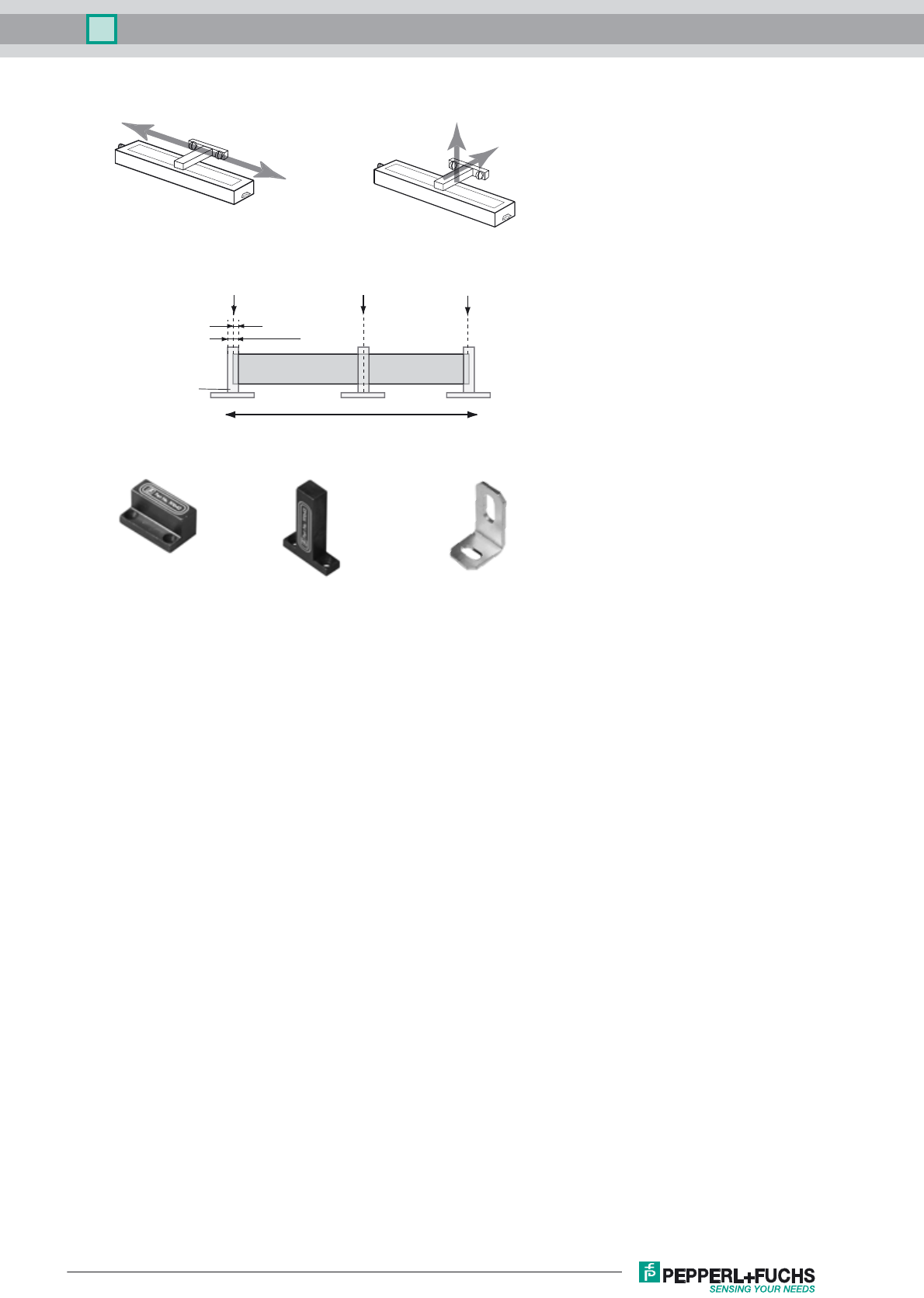

• Definition of measuring range / of measured position
The measured attenuating elements (actuators) position refers to half its width (middle of the actuator). The measuring range starts and ends when the attenuating
element overlaps the labeled measuring area on the sensor at transversal motion (see left figure above).
• Accessories
Straight cables: V1-G-2M-PVC (4 wire)
Angled cables: V1-W-2M-PVC (4 wire)
Attenuating elements Mounting brackets
BT-F110-G BT-F110-W MH-F110
start of measuring range measured position end of measuring range
labeled measuring area
motion direction of actuator
width w of actuator
w/2
actuator
