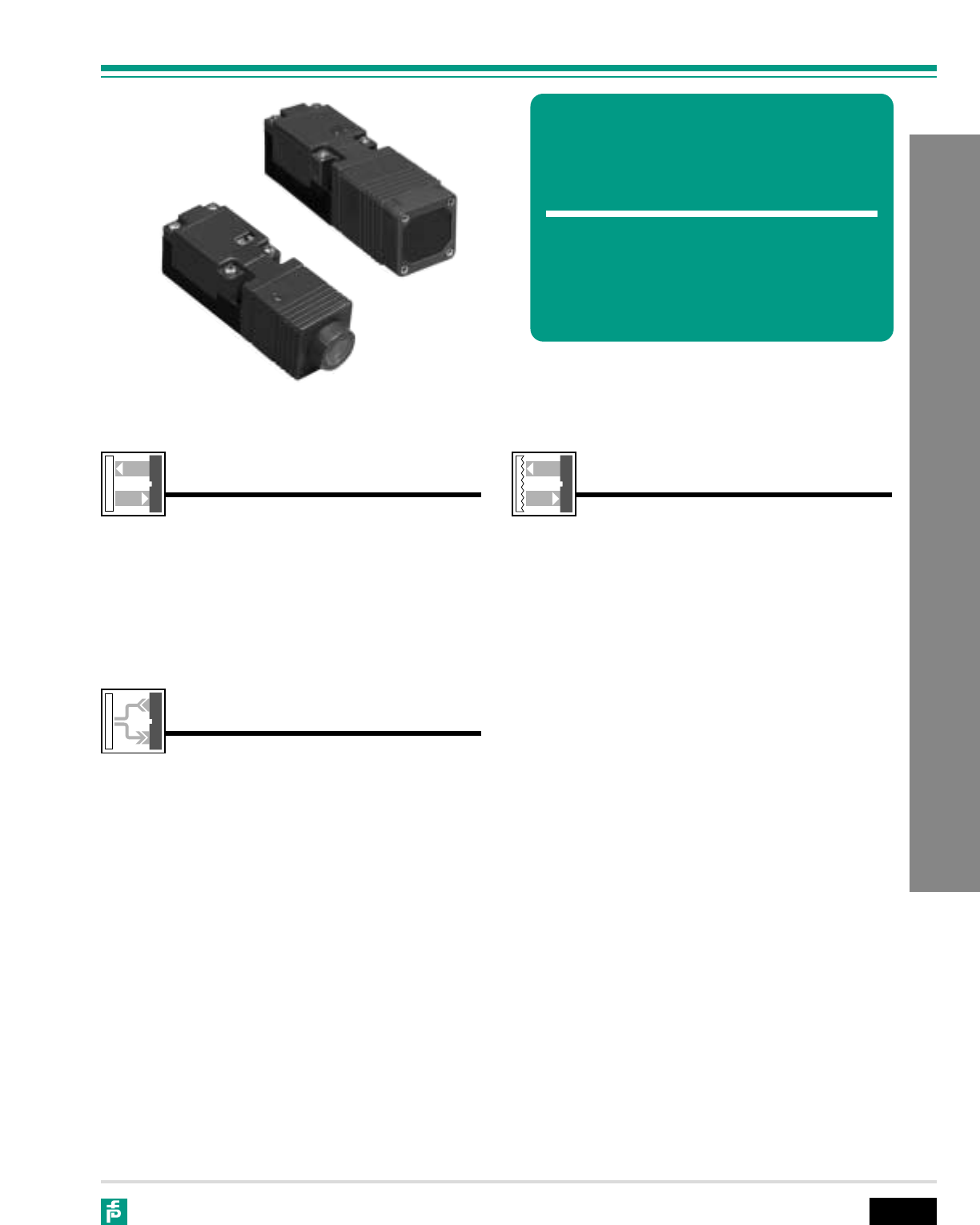

M1K Series

Mini Limit Switch

Style Sensors

• 25-position sensing head

• Crosstalk protected

• Weak signal output and indicator

Diffused

Mode

See page 504

Features:

• Application specific monitoring of signal

strength

• 100,000 hour LED

Sensing Range: 500mm

Outputs: NPN, PNP, AS-Interface

Retro-Reflective

Mode

See page 505-506

Features:

• Polarized filter detects shiny objects

• 100,000 hour LED

Sensing Range: 3m

Outputs: NPN, PNP, AS-Interface

See pages 508-512 for Mini Limit Switch Series specifications, programming, wiring and dimensions.

Fiber Optic Diffused and

Thru-Beam Mode

See page 507

Features:

• Extended operating temperature with fibers

rated to 572ºF (300ºC)

• Wide selection of mating fiber optics

Sensing Range: Determined by fiber optic cable

Outputs: NPN, PNP, AS-Interface
