Retroreflective sensor with polarization filter

OBS4000-18GM60-E4-V1

Release date: 2013-05-28 11:51 Date of issue: 2013-05-28 087799_eng.xml

Dimensions

Electrical connection

Pinout

Sensitivity adjuster

M18x1

LED

M12 x 1

Option:

+UB

0 V

E4 E4

= Light on

= Dark on

Model Number

OBS4000-18GM60-E4-V1

Retroreflective sensor

with 4-pin, M12 x 1 connector

Features

• Dual color indication LED

• Glare protected with polarization filter

• Light/dark ON, programmable

• Sensitivity adjuster for optimal adap-

tation to the application

• Protection degree IP67

• Strong metallic housing in cylindrical

shape M18 x 1

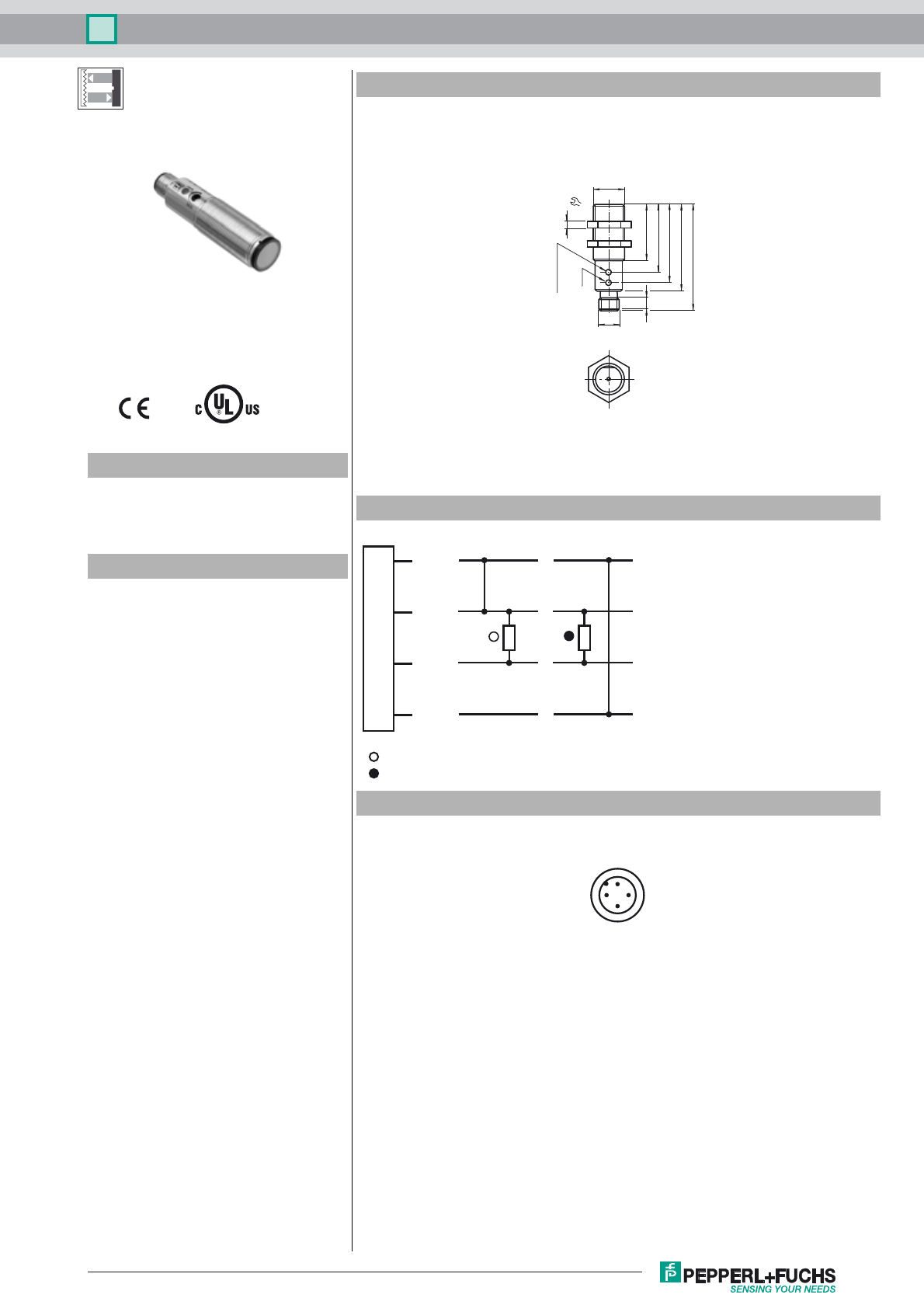

PAGE 1
Retroreflective sensor with polarization filter OBS4000-18GM60-E4-V1 Dimensions 70 51 60 38 7 LED Sensitivity adjuster 44 4 24 M18x1 M12 x 1 Model Number OBS4000-18GM60-E4-V1 Retroreflective sensor Electrical connection with 4-pin, M12 x 1 connector Features Option: 2 IN 1 +UB 4 Q 3 0V E4 E4 • Dual color indication LED • Glare protected with polarization filter • Light/dark ON, programmable • Sensitivity adjuster for optimal adaptation to the application • Protection degree IP67
PAGE 2
Retroreflective sensor with polarization filter OBS4000-18GM60-E4-V1 Technical data Accessories General specifications Effective detection range Threshold detection range Reference target Light source Light type Diameter of the light spot Angle of divergence Optical face Ambient light limit Indicators/operating means Operating display Function display Output Switching type Signal output Switching voltage Switching current Voltage drop Switching frequency Response time BF 18 Mounting flange, 18 mm BF 1
PAGE 3
Retroreflective sensor with polarization filter OBS4000-18GM60-E4-V1 Relative received light strength Reflector type: H85-2 (80 mm x 80 mm) 0m C110-2 (ø = 84 mm) 5.5 m 0.1 m H50 (50 mm x 50 mm) 0m H160 (60 mm x 18 mm) 0m 4.7 m 4.5 m 2.2 m Stability control Stability control > 3 Stability control < 3 60 50 H85-2 C110-2 H50 H160 40 30 20 x 10 3 0 0 1 2 3 4 5 6 Release date: 2013-05-28 11:51 Date of issue: 2013-05-28 087799_eng.
