Operation Manual

NEsT 5P (P 6201)
EN - 3
Technical data
Transmission speeds 10 Mbps, 100 Mbps (autonegotiation)
Transmission modes
10/100 Mbps half duplex, full duplex
(autonegotiation)
Supported standards
IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-TX
IEEE 802.3x: Flow-Control support
Interface
5 switchable ports RJ-
45, with automatic crossover
detection (Auto MDI-MDIX)
Cabling/connectors
RJ-45 (10Base-T) – UTP cat. 3, 4 or 5
RJ-45 (100Base-TX) – UTP cat. 5
Signalling diodes Power feed (PWR), port link/activity (LINK/ACT)
Filtering/Packet forwarding
(pps – packets per second)
10 Mbps: 14,880 pps / 14,880 pps
100 Mbps: 148,800 pps / 148,800 pps
Power consumption Max. 4 W
Power feed External power adapter 9 V AC, 1 A
Dimensions 104 x 69 x 28

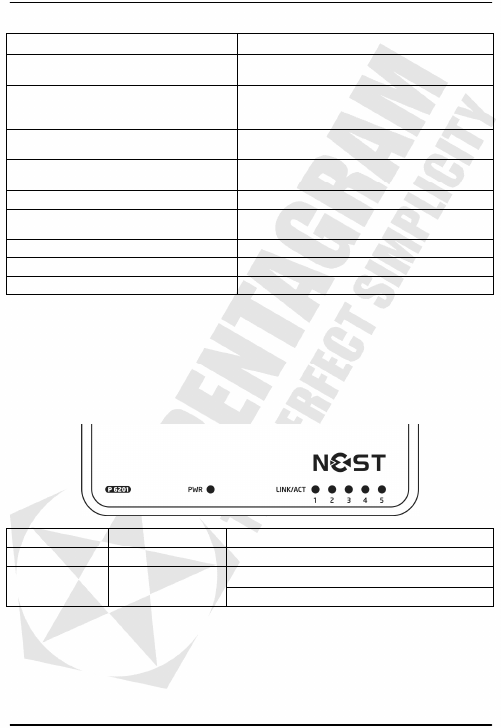

Device external look
Front panel
On the device front panel, there are diodes displaying the status of the device and individual ports.
One diode (PWR) shows the device power status, 5 diodes (LINK/ACT) show the status of
individual ports' operation.
Name Color Function
PWR Green On: the power is on
On: link with other device
LINK/ACT Green
Blinking: data transfer
