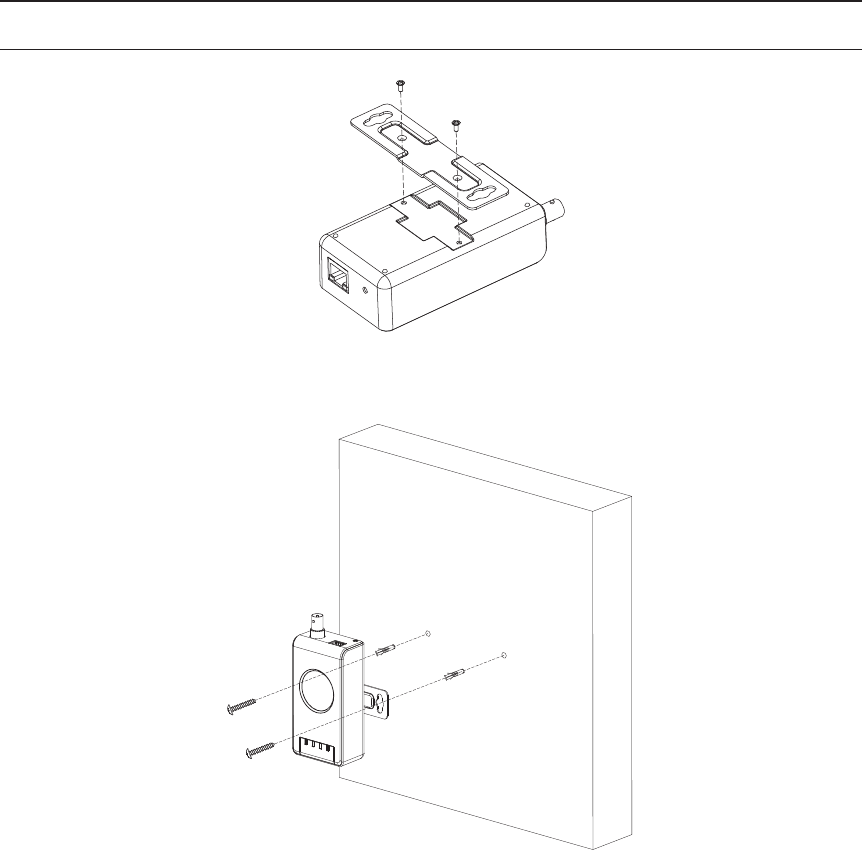

WALL BRACKET INSTALLATION
1.
Align the product with the bracket holes. Insert and tighten the provided screws to attach the product to the bracket.
2.
Use drill bit of 5 mm (0.20 in.) diameter and drill on the marked positions, drill to have 3 cm (1.18 in.) deep holes. Clean the holes
after drilling.
3.
Insert an anchor for each hole. Fully insert anchors by lightly hammering the anchor head with a hammer/rubber hammer.
4.
Place the wall-mount bracket on the desired wall and fasten screws through the 2 holes using a screwdriver.
J
Use the provided screws when installing the bracket on the product. If you use any other screws, it may cause damage to the product.
