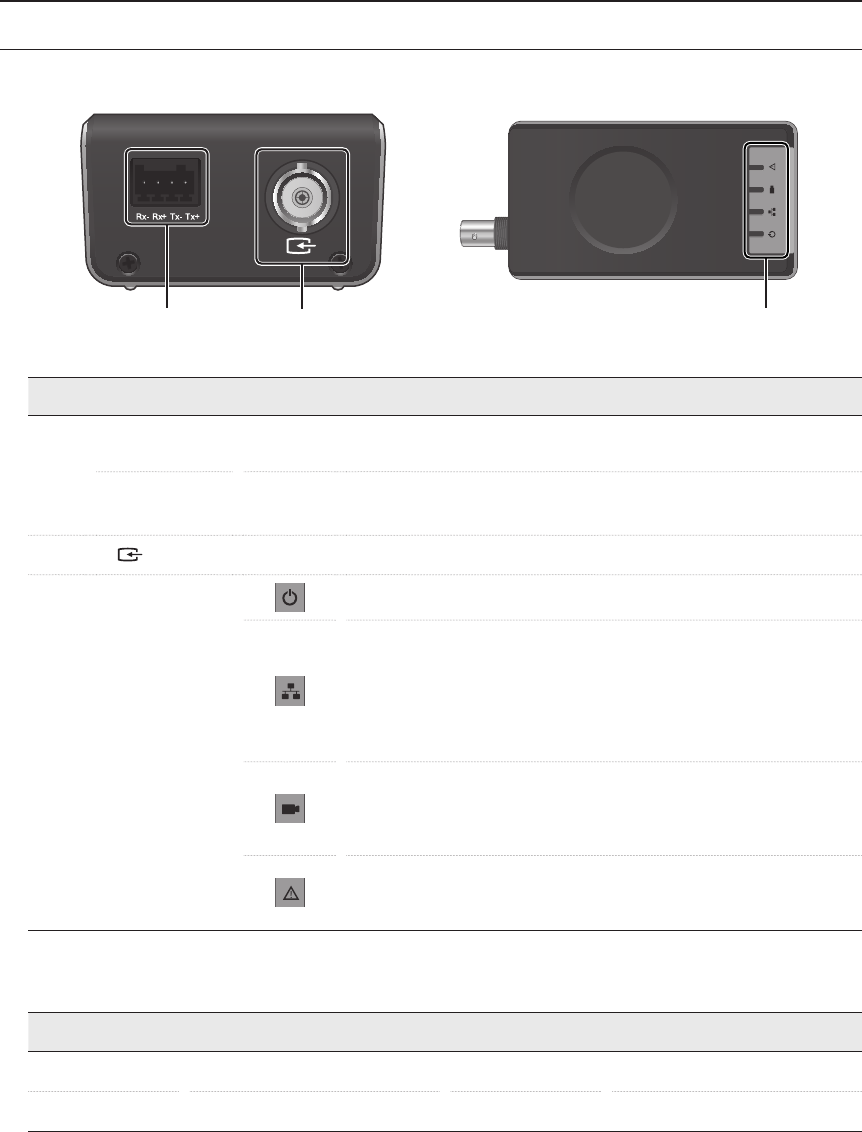

FRONT PANEL DESCRIPTION
No. Name Description
a
RX+/RX-
RS-422 RX Data line
J
Disabled in RS-485 mode.
TX+/TX- RS-422/RS-485 Data line
b
1
1
A NO COM Tx+ Rx+
NC Tx- Rx-
Video input BNC terminal.
c
Top Panel Indicators
Displays power On/Off status.
It glows blue when the unit has power.
Displays network status (connection and speed).
Off : The unit is not connected to the network.
Solid amber : The unit is connected to the network using the 100 Mbps standard.
Solid red : The unit is connected to the network using the 10 Mbps standard.
Solid green : The unit is connected to the network using the 1 Gbps standard.

A blinking light indicates network activity corresponding to the speed based on the color.
Displays camera connection status.
Not Lit : A camera has not been connected yet.
Green : Camera video is present at the video in connector.
Red : Video is no longer present, the camera is not functioning properly.
Displays unit status.
Green : The unit is functioning normally.
Red : The unit is in an error condition.
PTZ Pin Assignments
Label Lead Label Lead
RX- RS-422 Data RX- TX- RS-422 Data TX-
RX+ RS-422 Data RX+ TX+ RS-422 Data TX+
